Zhanhui 7.0 inch full range of LCD display modules
7.0-inch full range preview
Swipe left and right to see more⇨
01
Swipe left and right to see more⇨

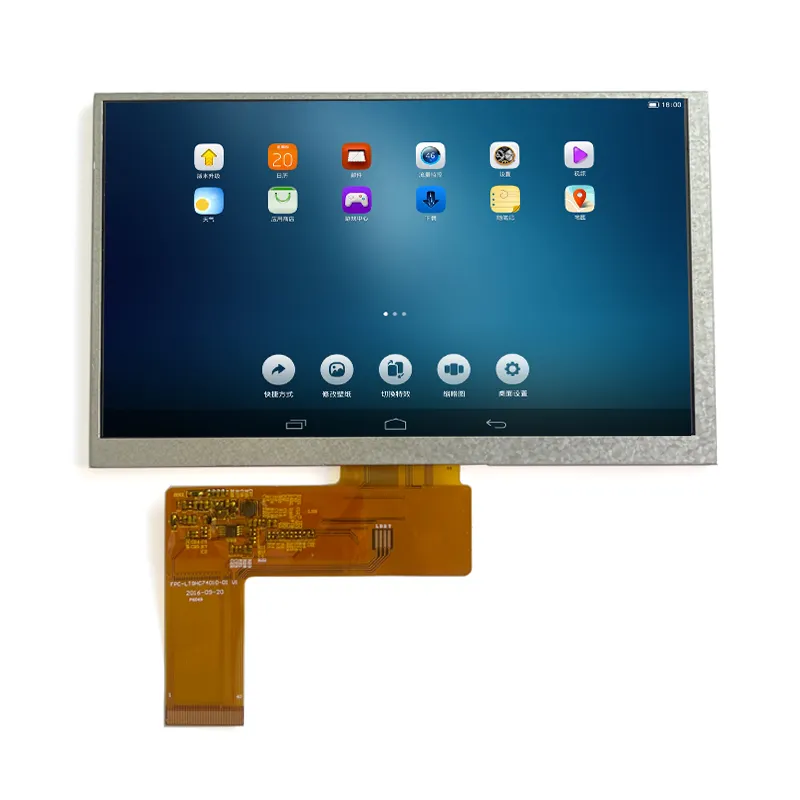

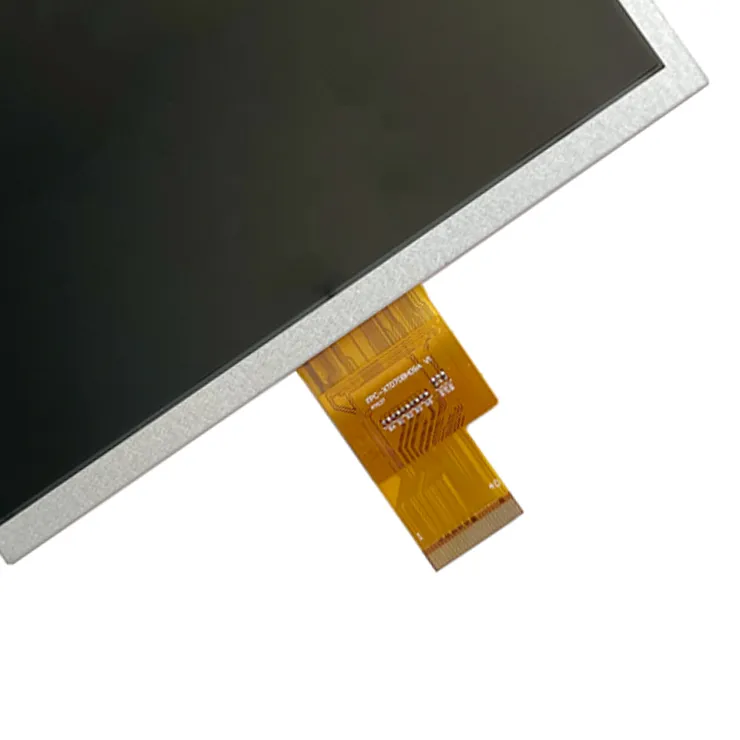

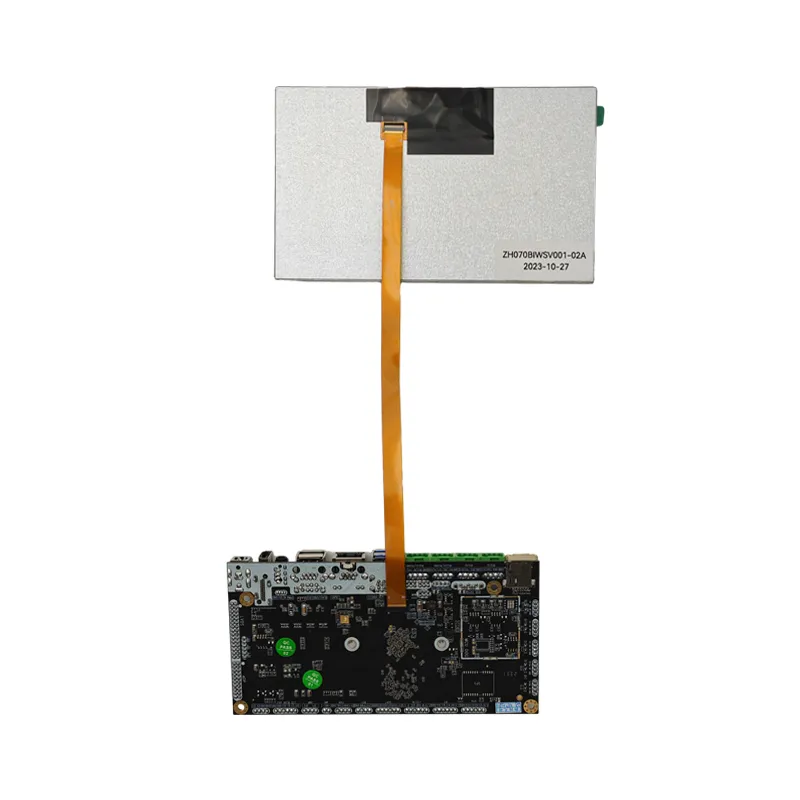

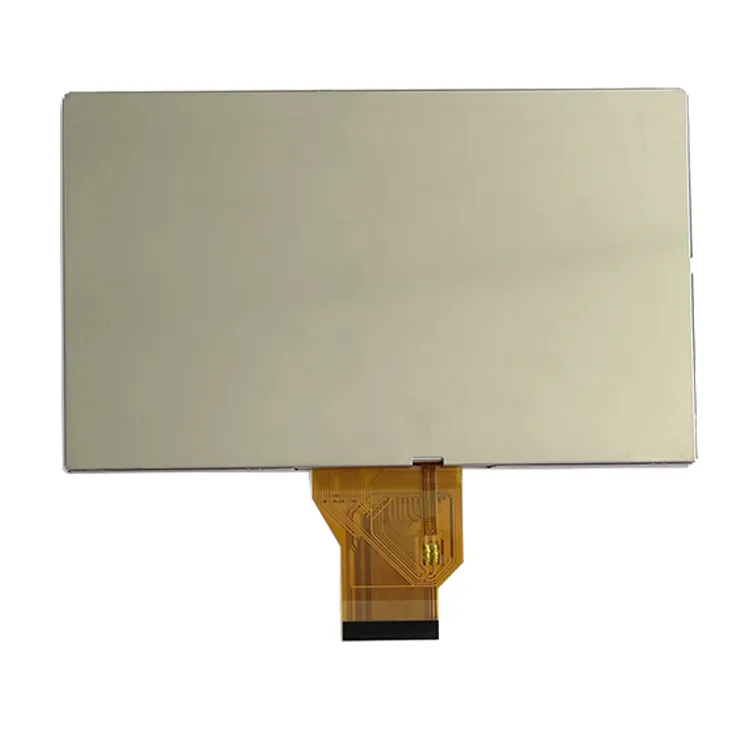

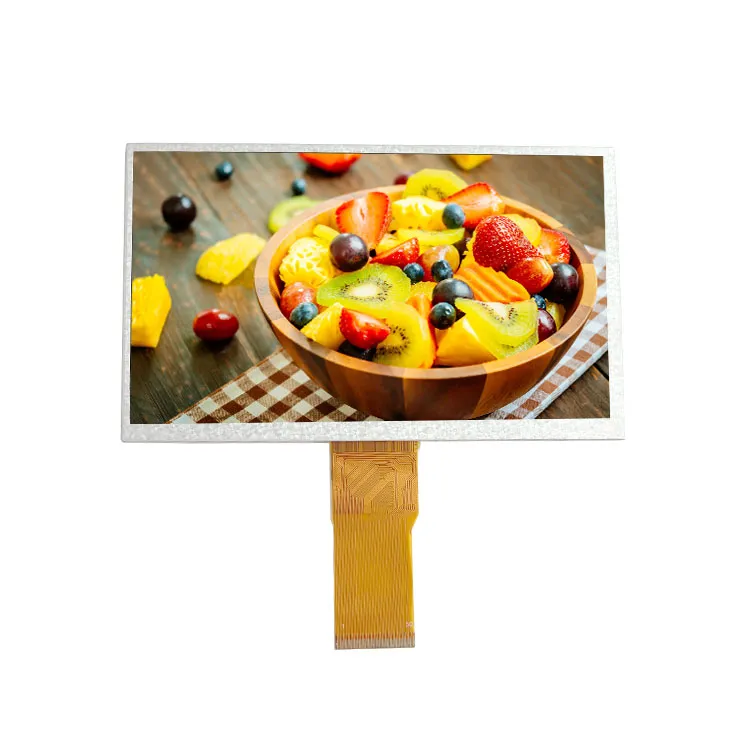

“ZH070BH018-08” 7.0 inch iron frame LCD screen |
Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) Diagonal measurement is 7.0 inches, regular 1000 brightness.
(3) Dimensions: 164.9 (H) * 100 (V) * 2.8 (typ)
(4) Display resolution: 1024*3(RGB)*600
(5)Display area : 85.92(H)*154.2144(W)
(6) Display angle : IPS
(7) Interface: LVDS 40PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)

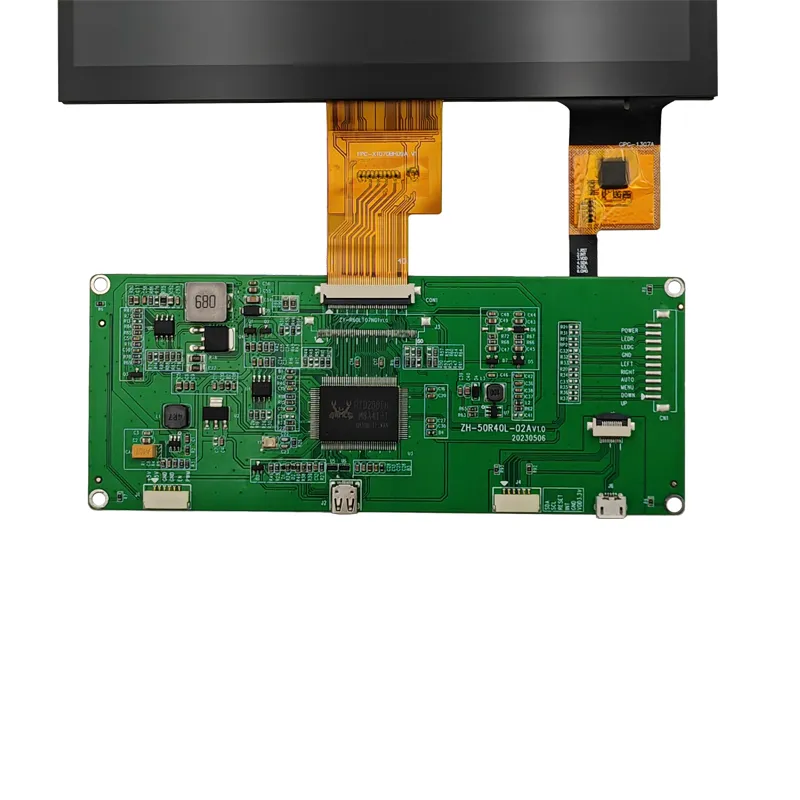

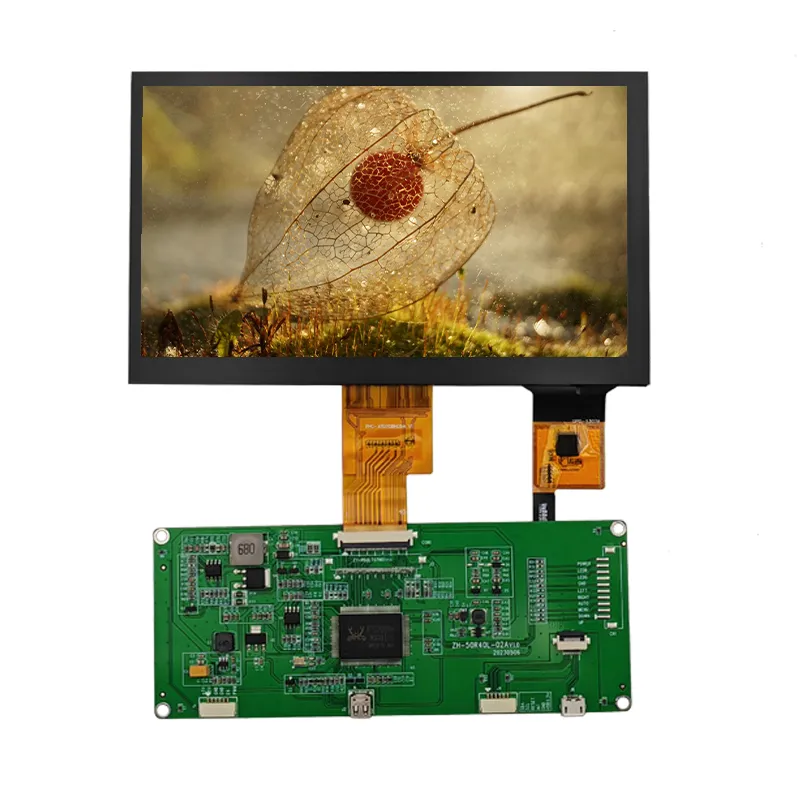

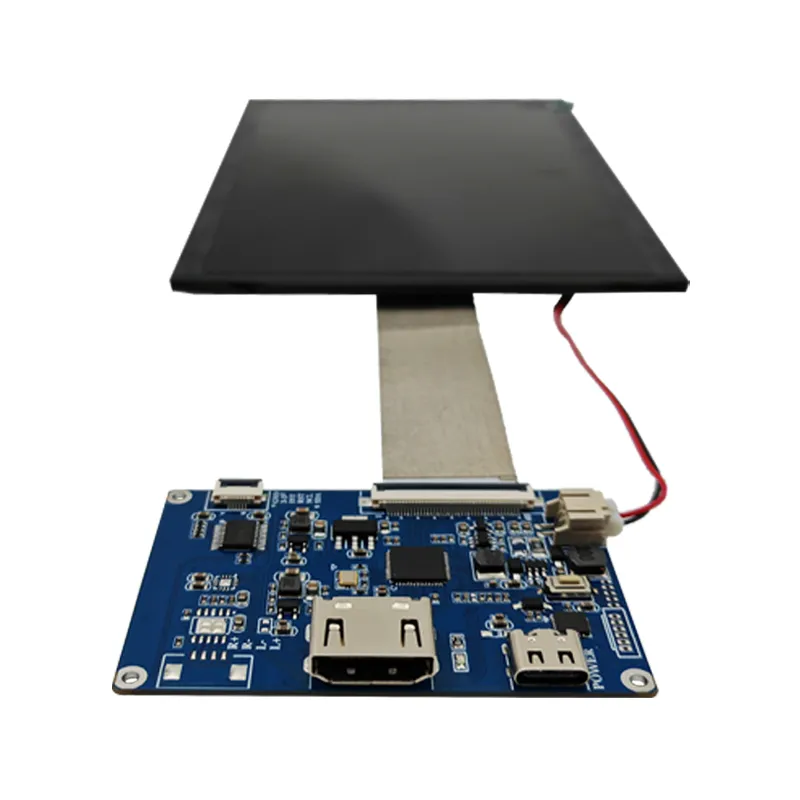

(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
02
—
Swipe left and right to see more⇨

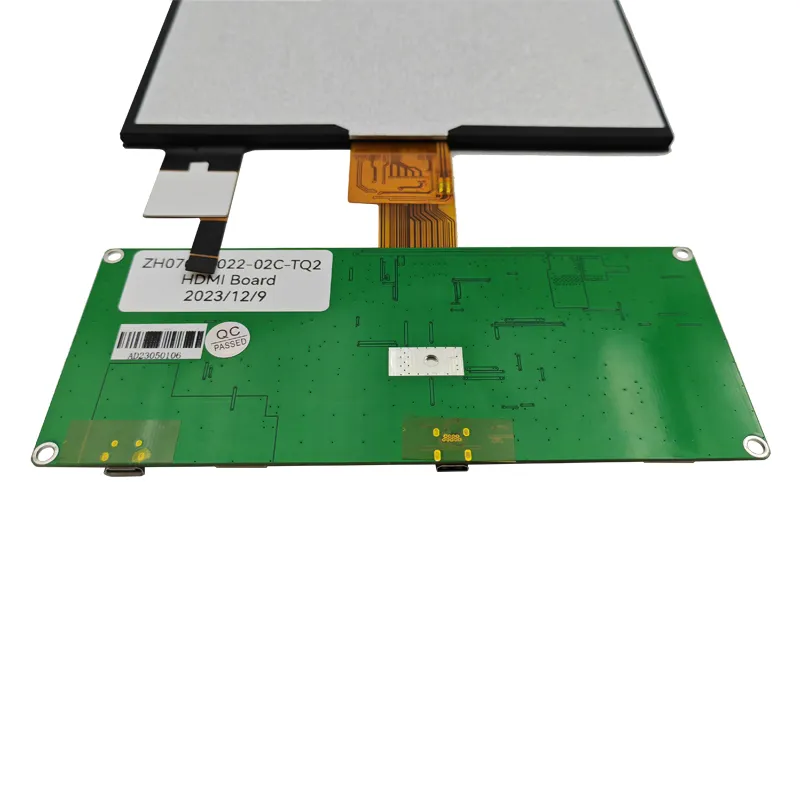

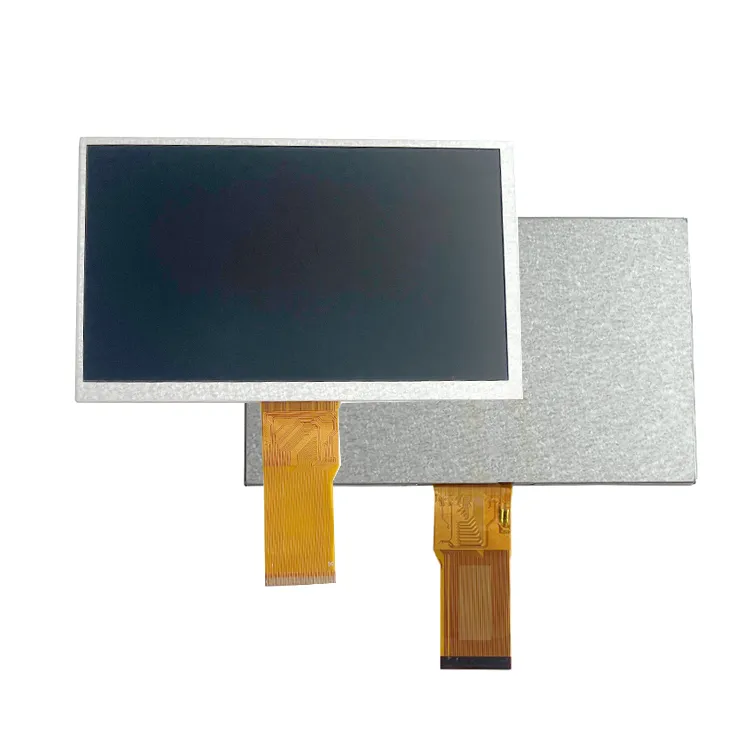

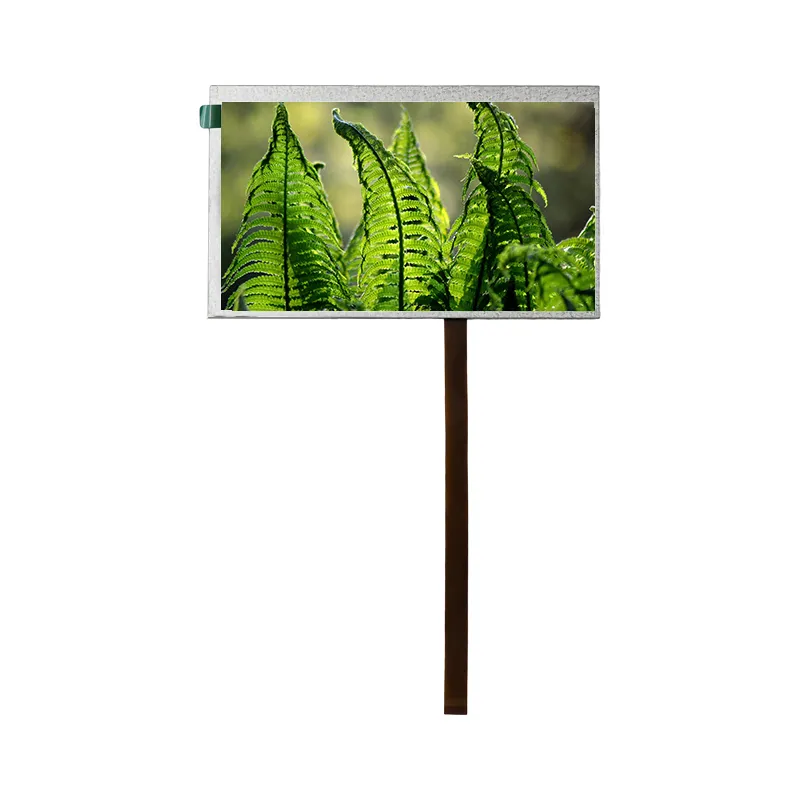

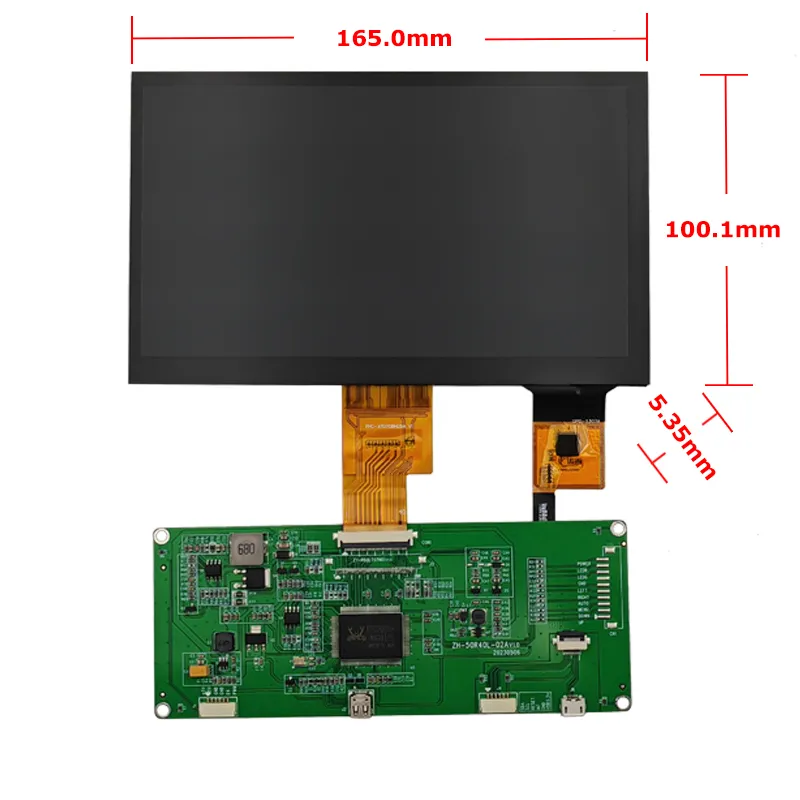

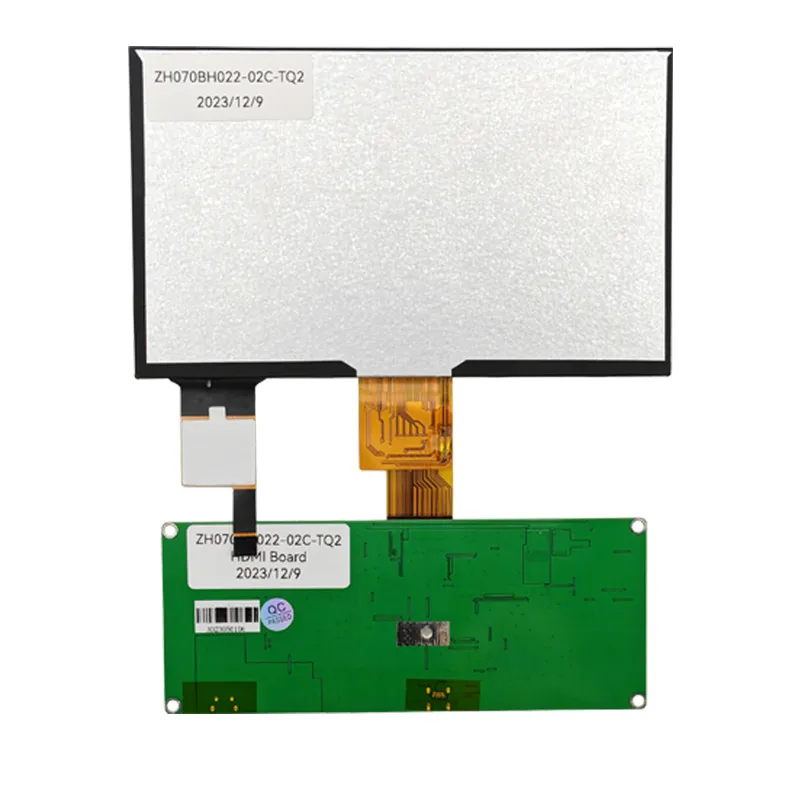

“ZH070BH022-02C-TQ2” 7.0 inch tape wrapped module LCD display |
Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) Diagonal measurement is 7.0 inches, regular 850 brightness.
(3) Dimensions: 165.0(H)*100.1(V)*5.38(typ)
(4) Display resolution: 1024*3(RGB)*600
(5)Display area : 154.68(H)*86.52(W)
(6) Display angle : IPS
(7) Interface: LVDS 40PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
03
—
Swipe left and right to see more⇨

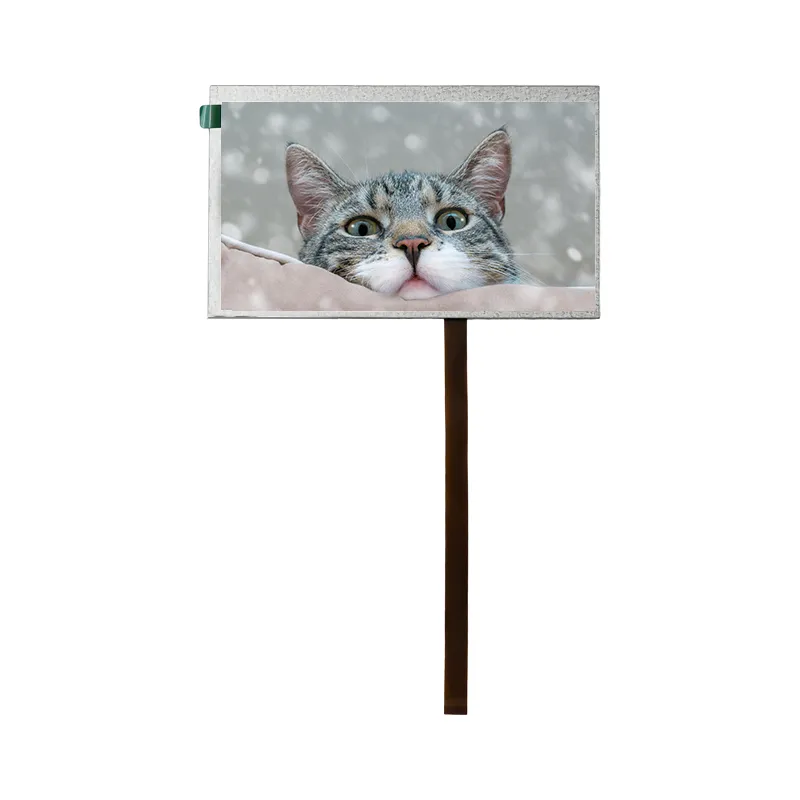

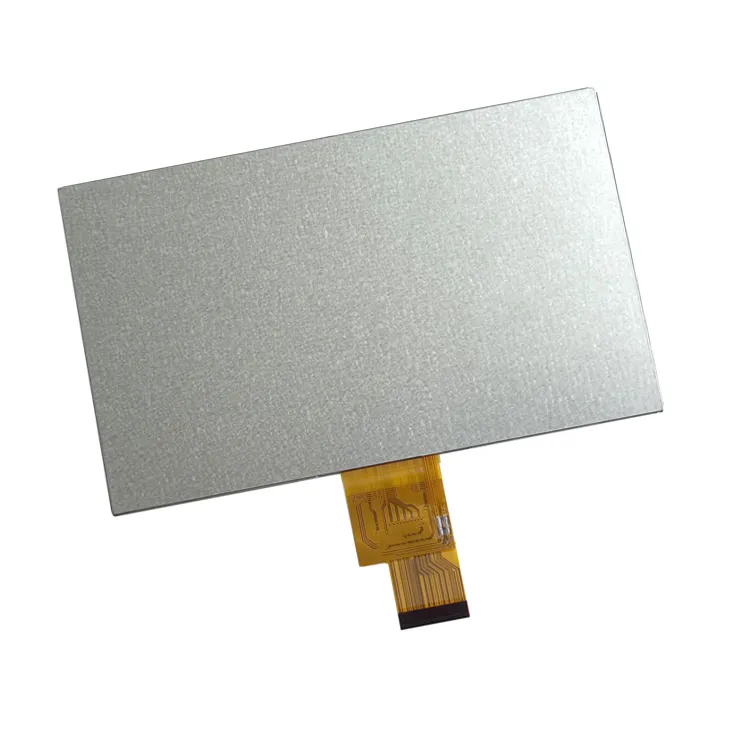

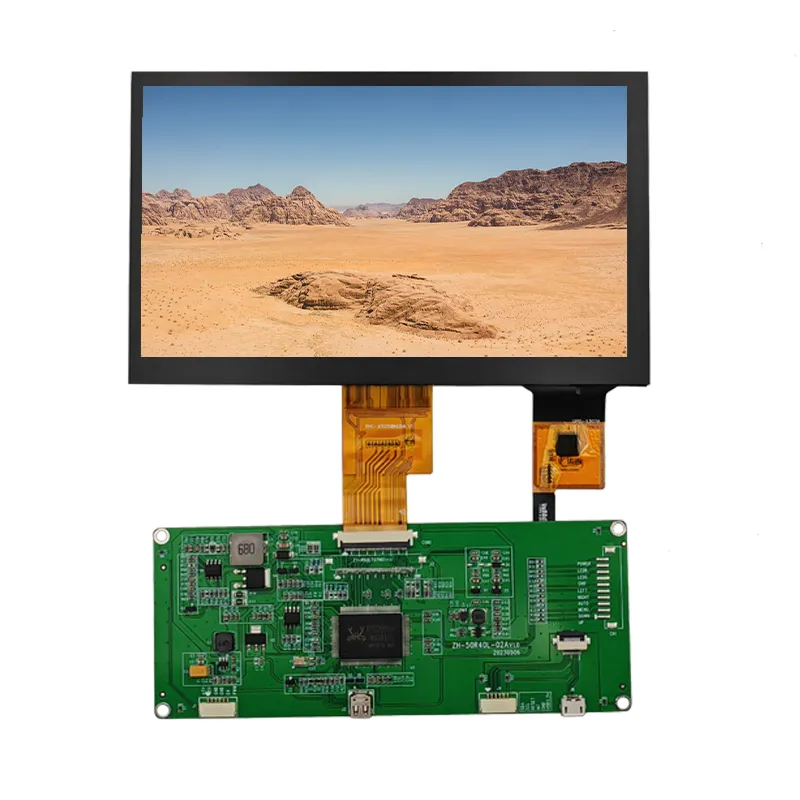

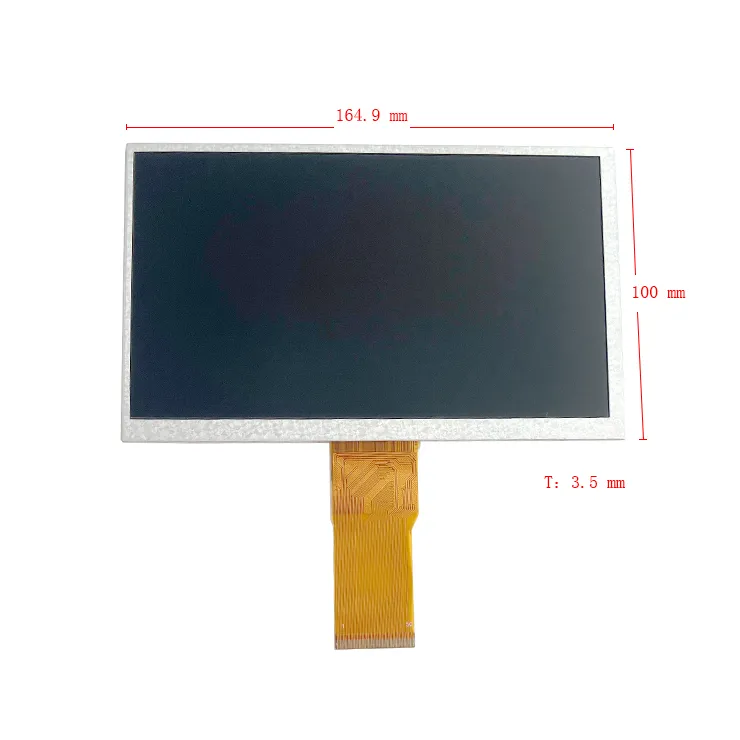

“ZH070BH052-03” 7.0 inch iron frame LCD screen |
Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) Diagonal measurement is 7.0 inches, regular 300 brightness.
(3) Dimensions: 164.9 (H) * 100 (V) * 3.5 (typ)
(4) Display resolution: 1024*3(RGB)*600
(5)Display area : 154.2144(H)*86.92(W)
(6) Display angle : IPS
(7) Interface: RGB 25PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
04
—
Swipe left and right to see more⇨

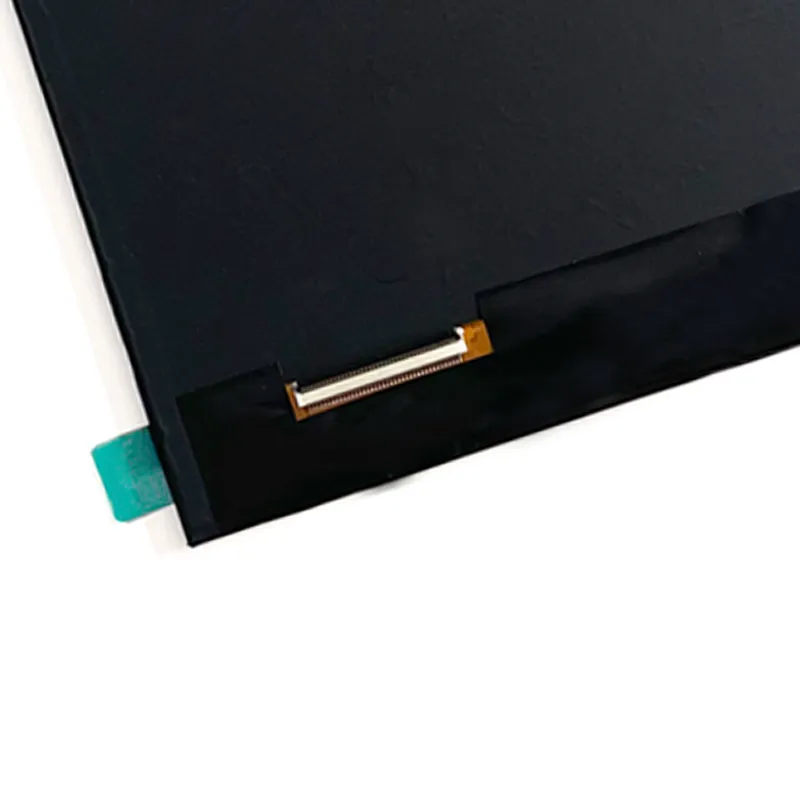

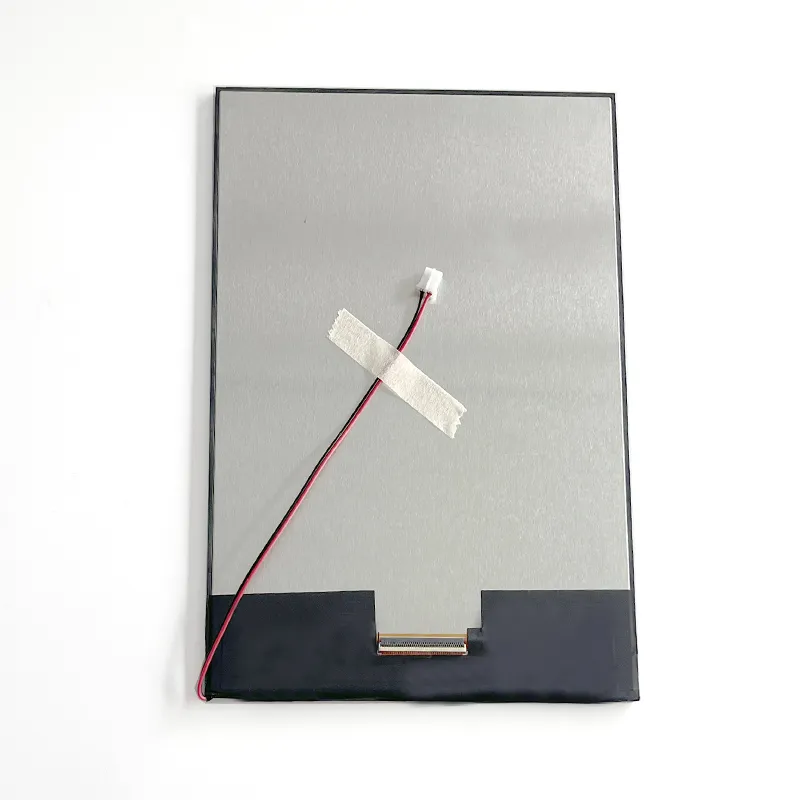

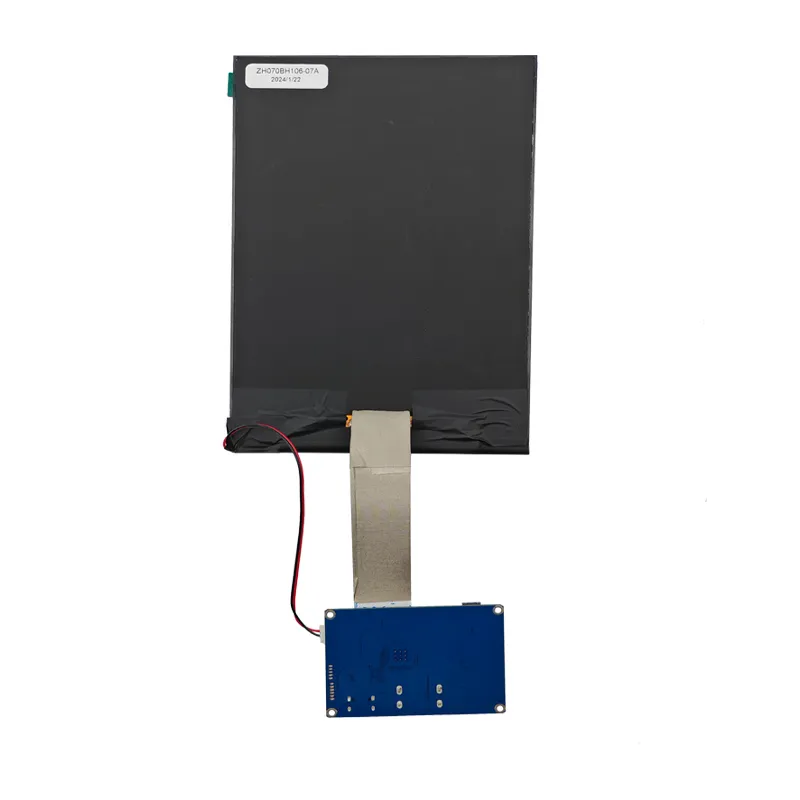

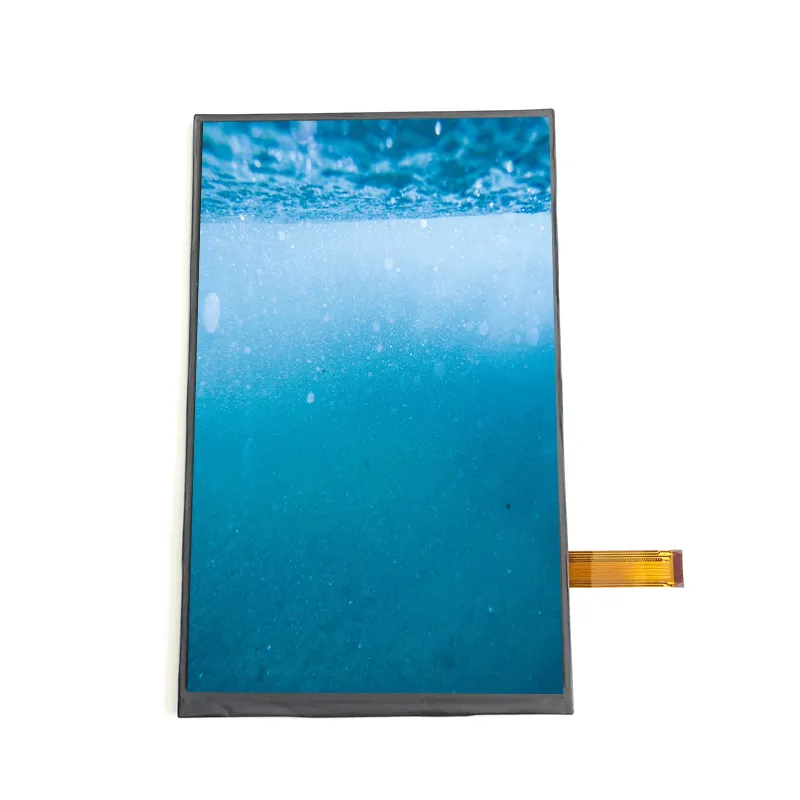

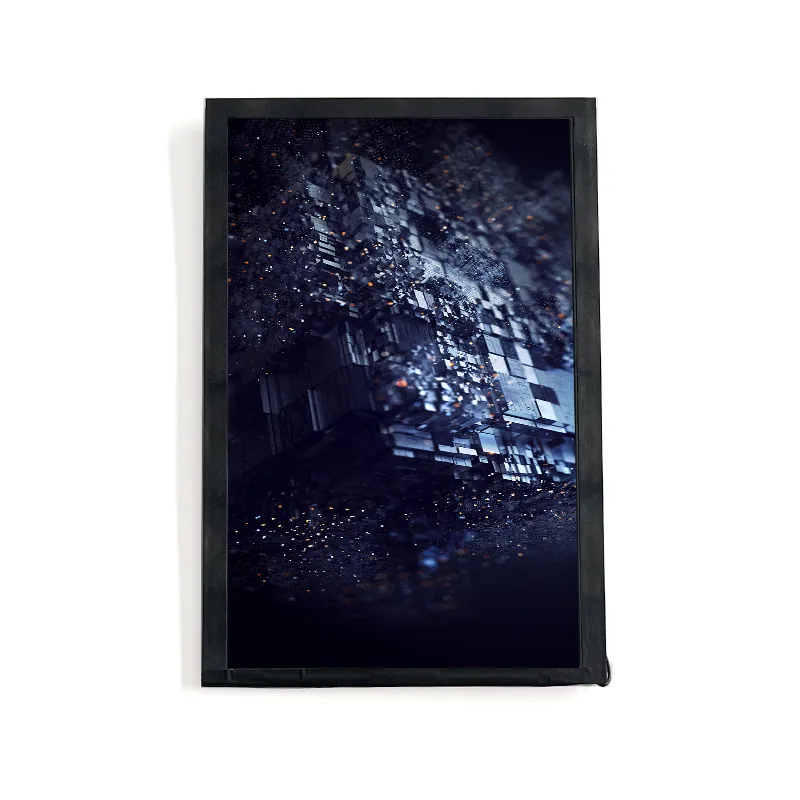

“ZH070BH106-07A” 7.0 inch tape wrapped module LCD display |
Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) Diagonal measurement is 7.0 inches, regular 850 brightness.
(3) Dimensions: 111.0(H)*166.0(V)*3.29(typ)
(4) Display resolution: 1200*3(RGB)*1920
(5)Display area: 94.5(H)*151.2(W)
(6) Display angle : IPS
(7) Interface: MIPI 40PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
05
—
Swipe left and right to see more⇨

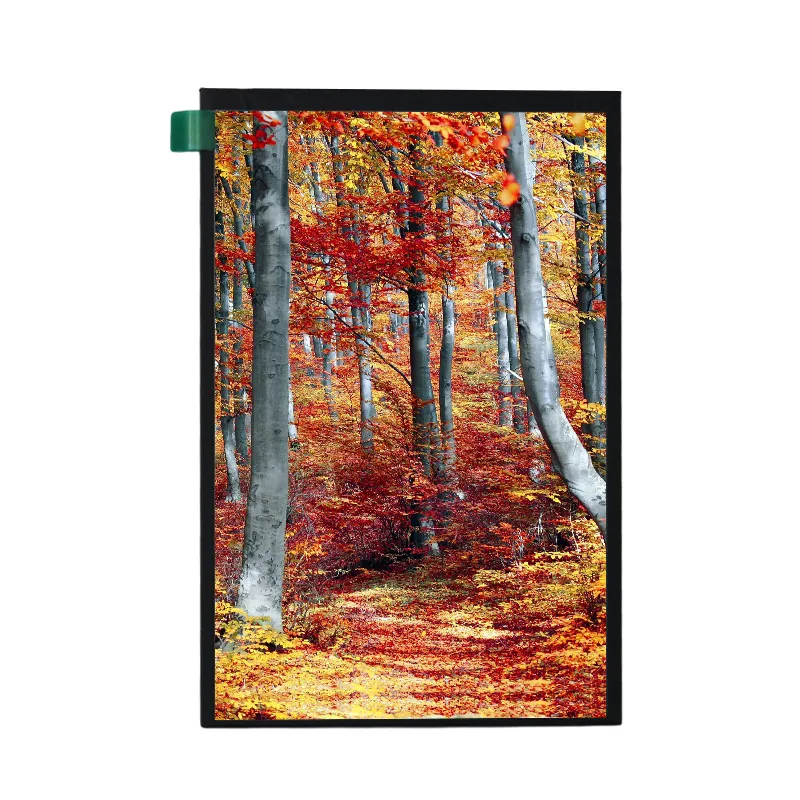

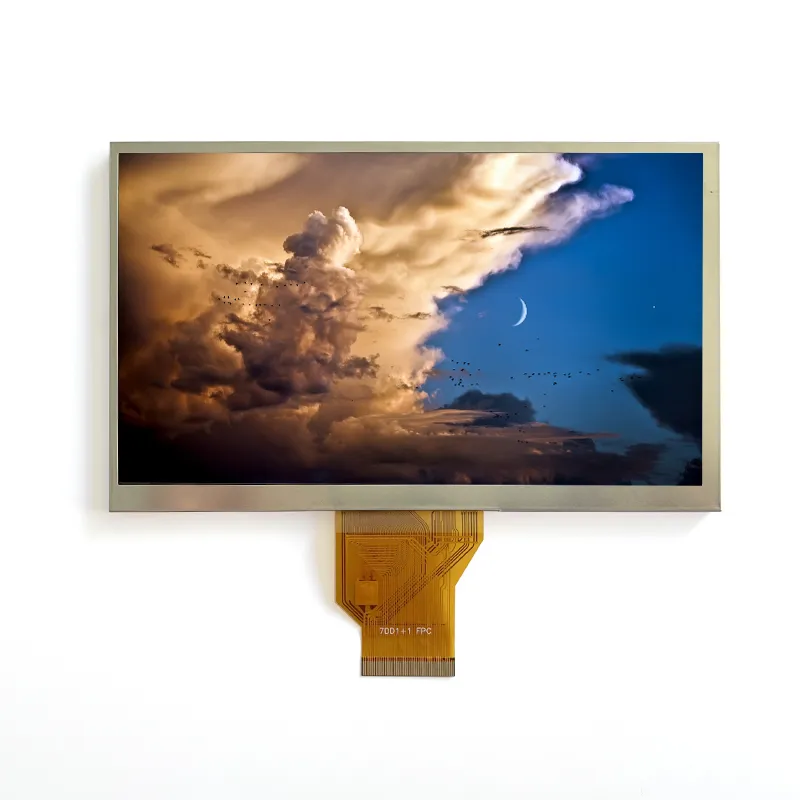

Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) Diagonal measurement is 7.0 inches, regular 450 brightness.

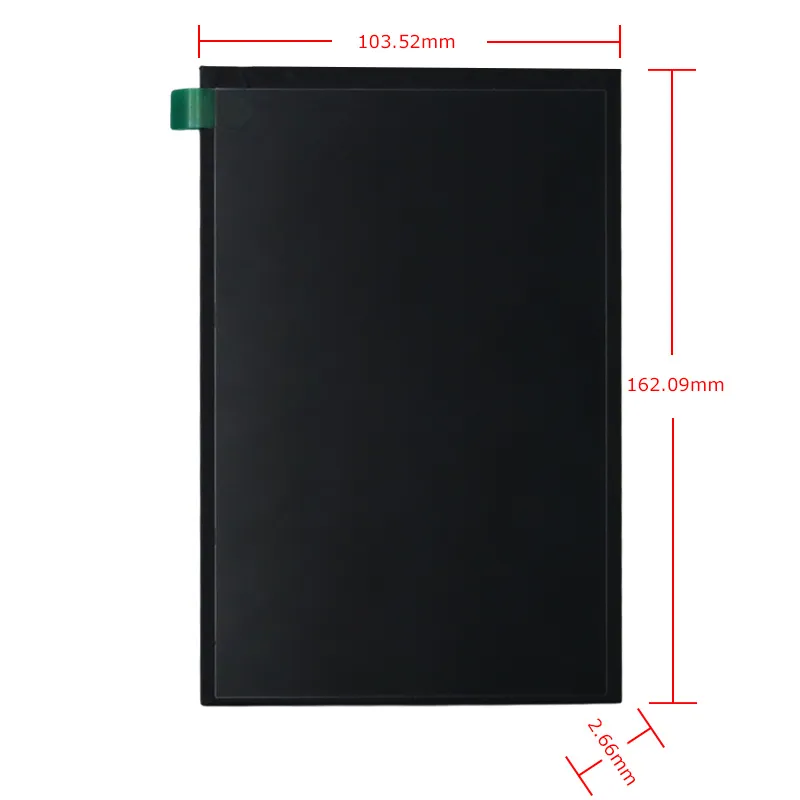

(3) Dimensions: 103.52(H) *162.09(V) * 2.66MAX(T)
(4) Display resolution: 800*3(RGB)*1280
(5) Display area : 94.2(H) * 150.72(V)
(6) Display angle : IPS
(7) Interface: MIPI 40PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
06
—
Swipe left and right to see more⇨

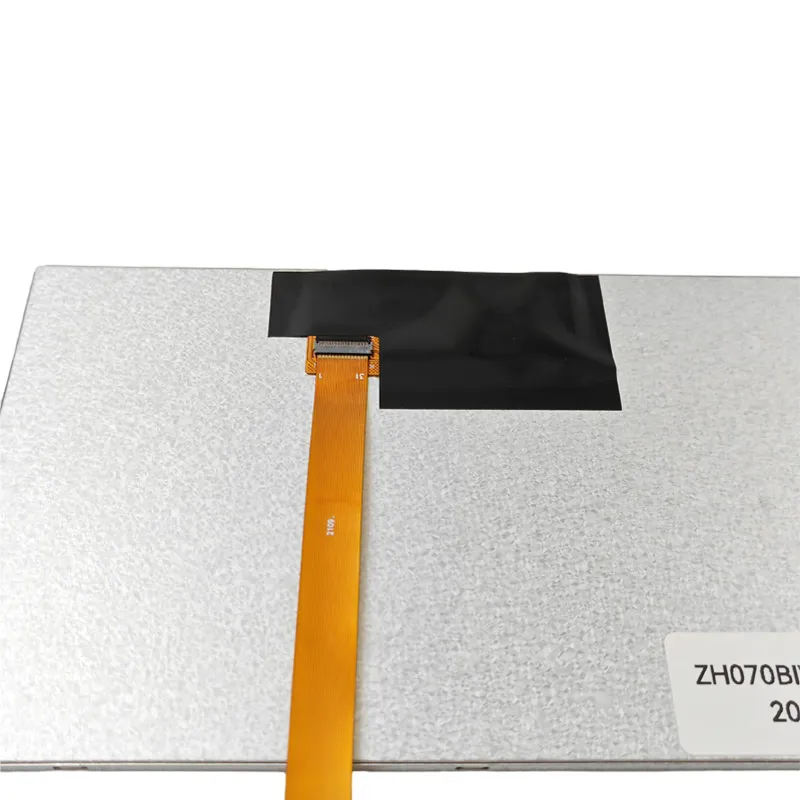

Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) Diagonal measurement is 7.0 inches, regular 300 brightness.

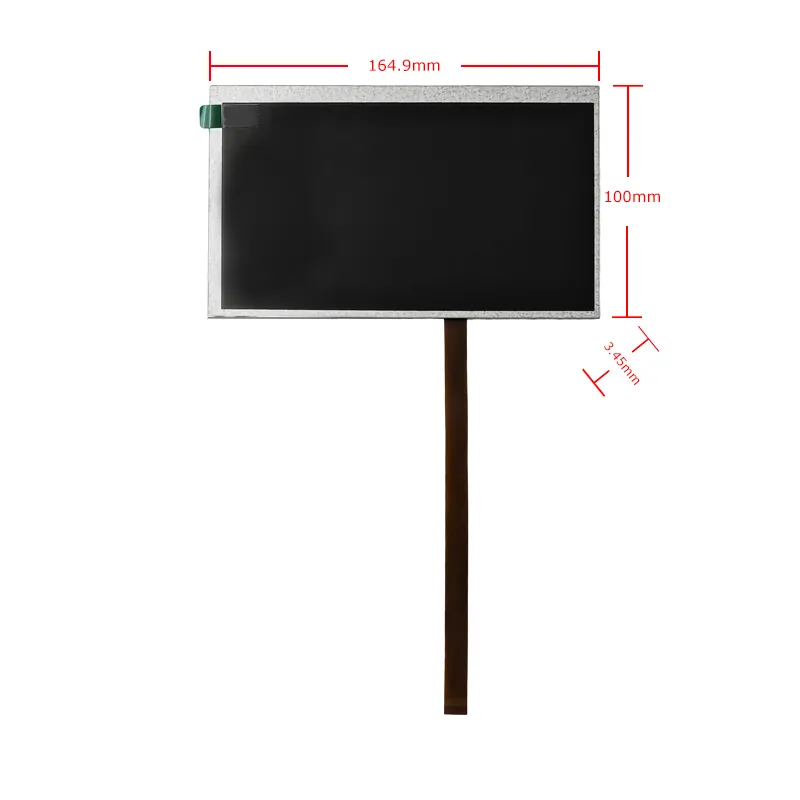

(3) Dimensions: 164.9 (H) * 100 (V) * 3.45 (typ)
(4) Display resolution: 1024*3(RGB)*600
(5)Display area: 154.21(H)*85.92(W)
(6) Display angle : IPS
(7) Interface: MIPI 31PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
07
—
Swipe left and right to see more⇨

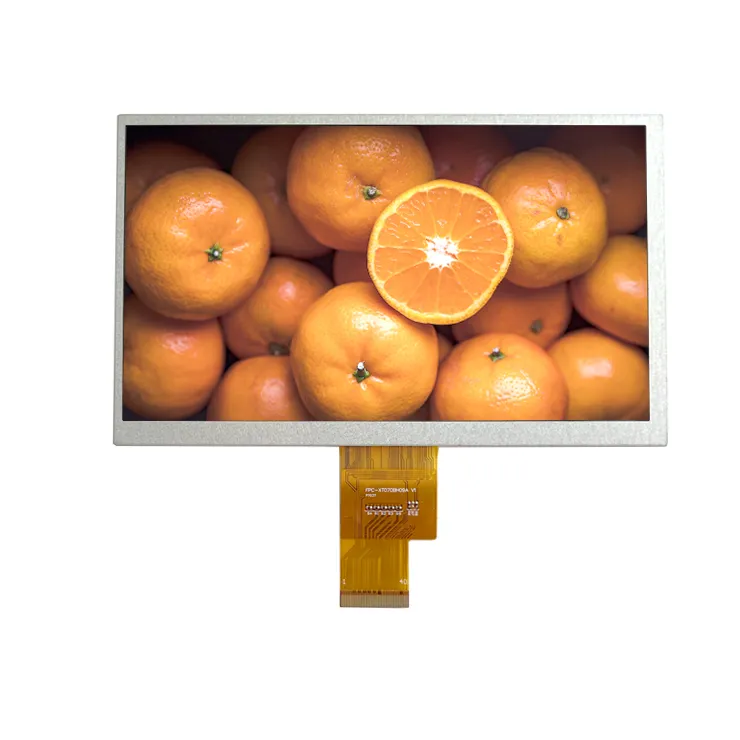

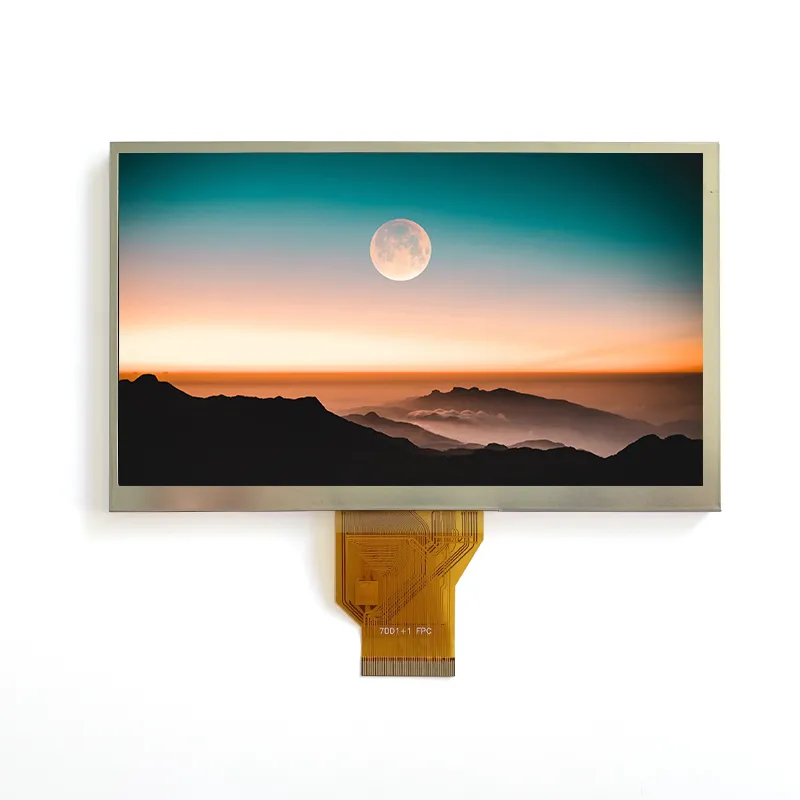

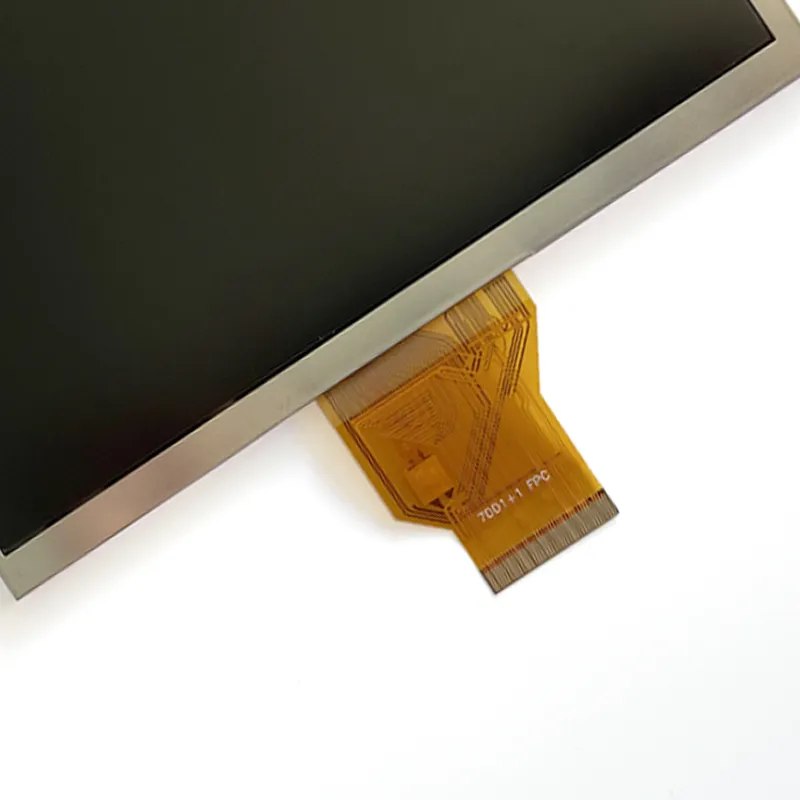

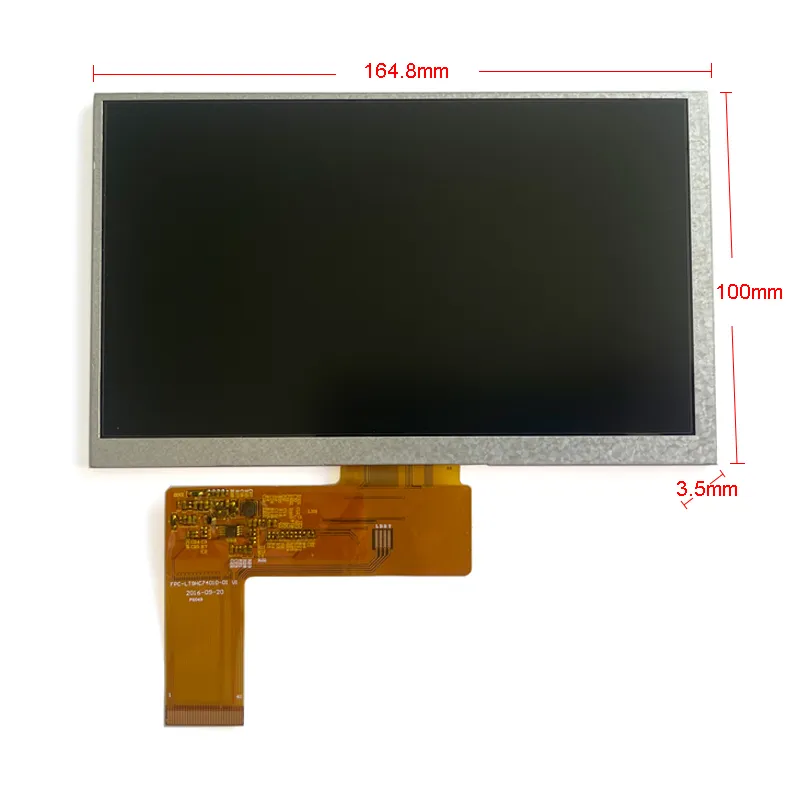

7.0 inch iron frame LCD screen |
Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) Diagonal measurement is 7.0 inches, regular 700 brightness.
(3) Dimensions: 164.8(W) *100.0H) *3.5(T)
(4) Display resolution: 800*3(RGB)*480
(5)Display area : 154.08*(W) *85.92(H)
(6) Display angle : IPS
(7) Interface: RGB 40PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
08
—
Swipe left and right to see more⇨

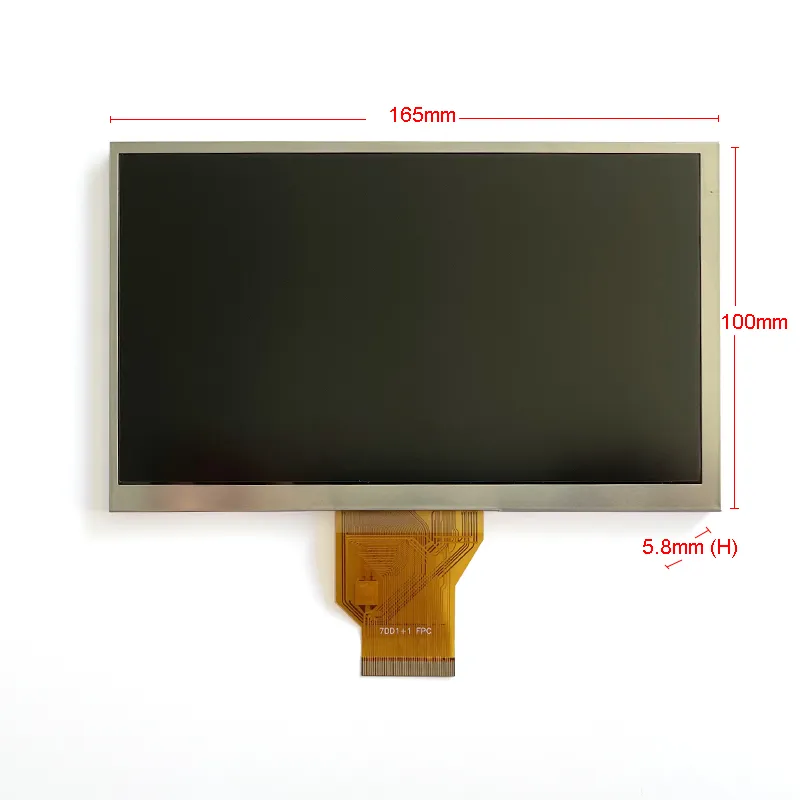

7.0 inch iron frame LCD screen |
Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) Diagonal measurement is 7.0 inches, regular 500 brightness.
(3) Dimensions: 165.0(W) *100.0H) *5.8(T)
(4) Display resolution: 800*3(RGB)*480
(5)Display area : 154.08*(W) *85.92(H)
(6) Display angle : IPS
(7) Interface: RGB 25PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
09
—
Swipe left and right to see more⇨

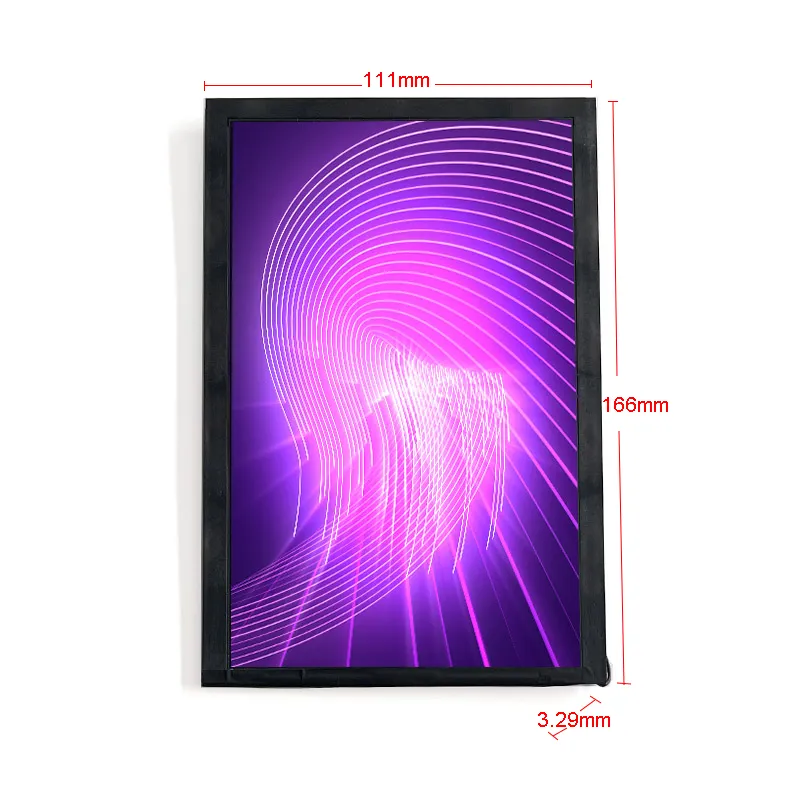

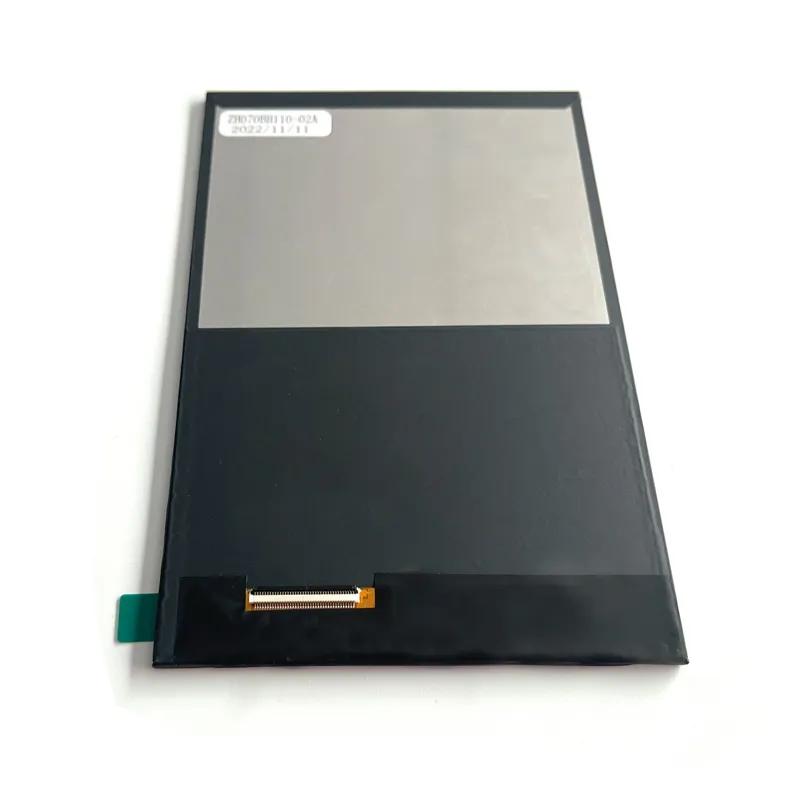

Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) The diagonal measurement is 7.0 inches, and the regular brightness is 1500.

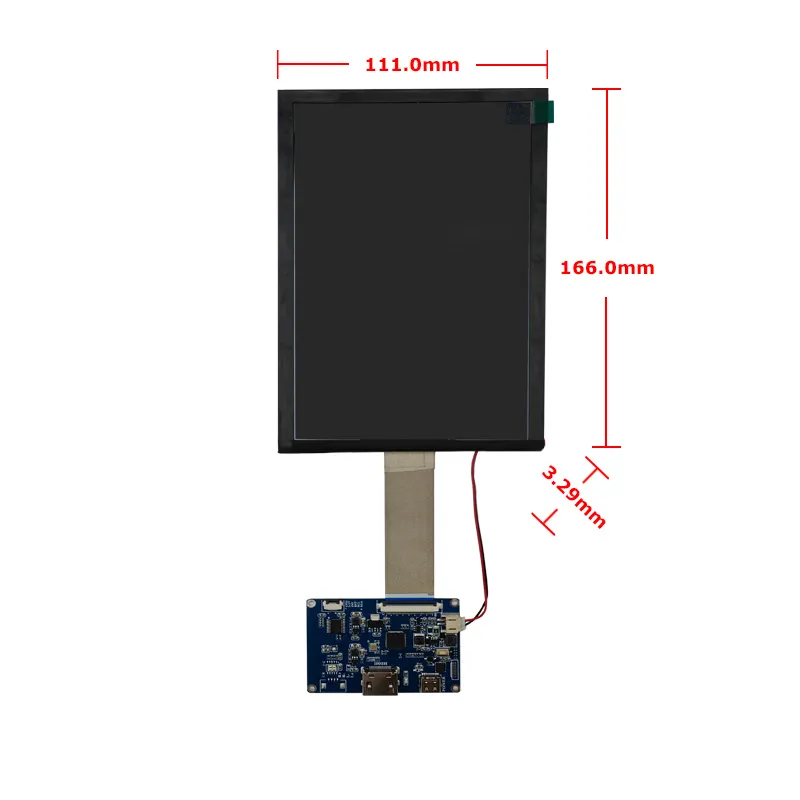

(3) Dimensions: 111.0(H) *166.0(V) *3.29(T)
(4) Display resolution: 1200*3(RGB)*1920
(5)Display area: 94.5*(H)*151.2(V)
(6) Display angle : IPS
(7) Interface: MIPI 40PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
10
—
Swipe left and right to see more⇨

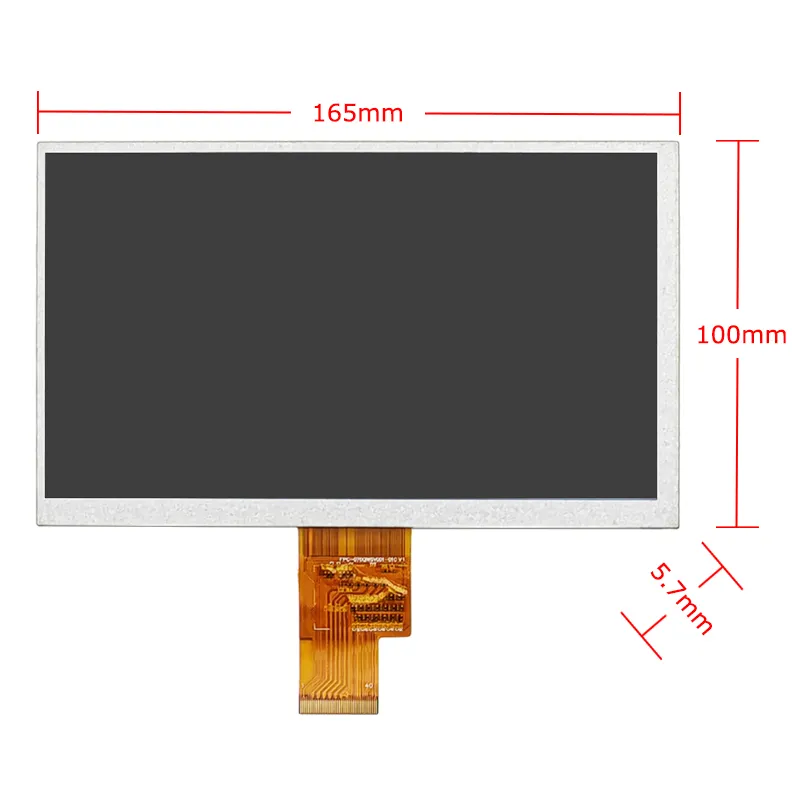

7.0 inch iron frame LCD screen |
Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) Diagonal measurement is 7.0 inches, regular 1000 brightness.
(3) Dimensions: 165(H) *100.0(V) * 5.7(T)
(4) Display resolution: 1024*3(RGB)*600
(5)Display area : 154.21(H) *85.92(W)
(6) Display angle : IPS
(7) Interface: LNDS 40PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
