Zhanhui 10.1-inch full range of LCD display modules
10.1-inch full range preview
Swipe left and right to see more⇨
01
' fill='%23FFFFFF'%3E%3Crect x='249' y='126' width='1' height='1'%3E%3C/rect%3E%3C/g%3E%3C/g%3E%3C/svg%3E)
Swipe left and right to see more⇨

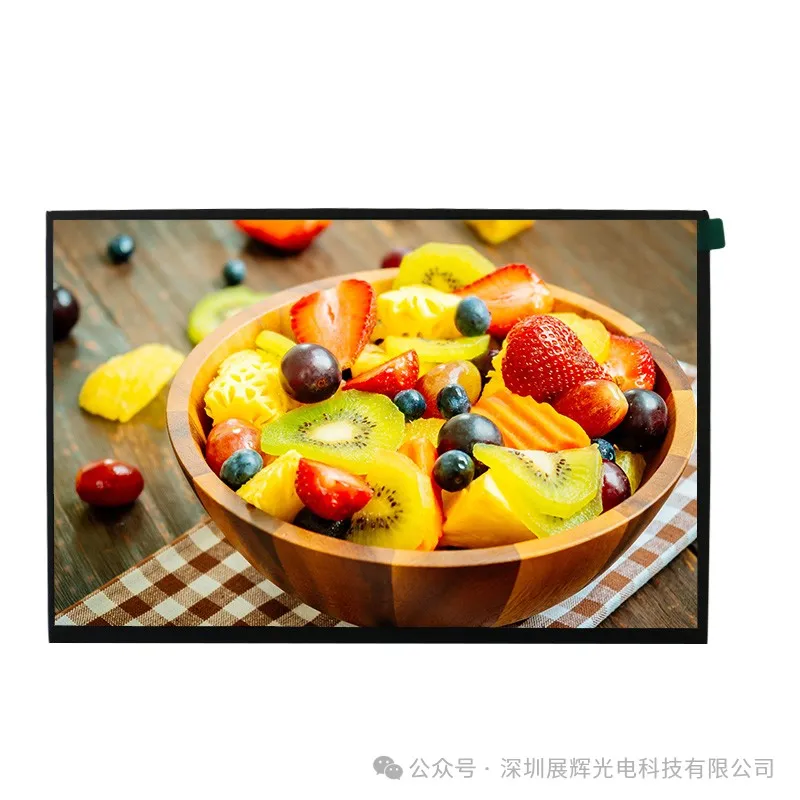

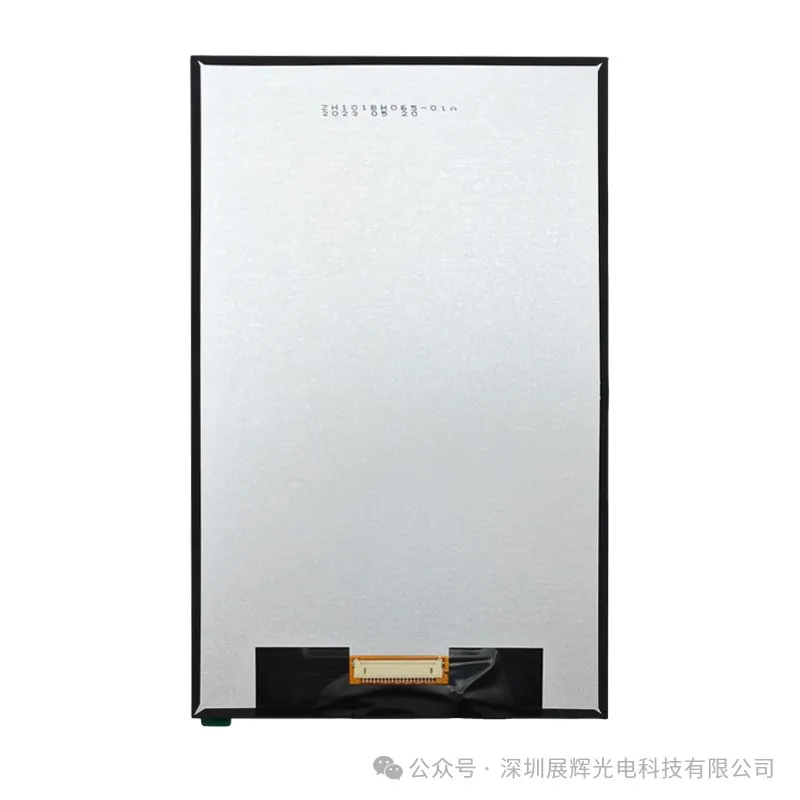

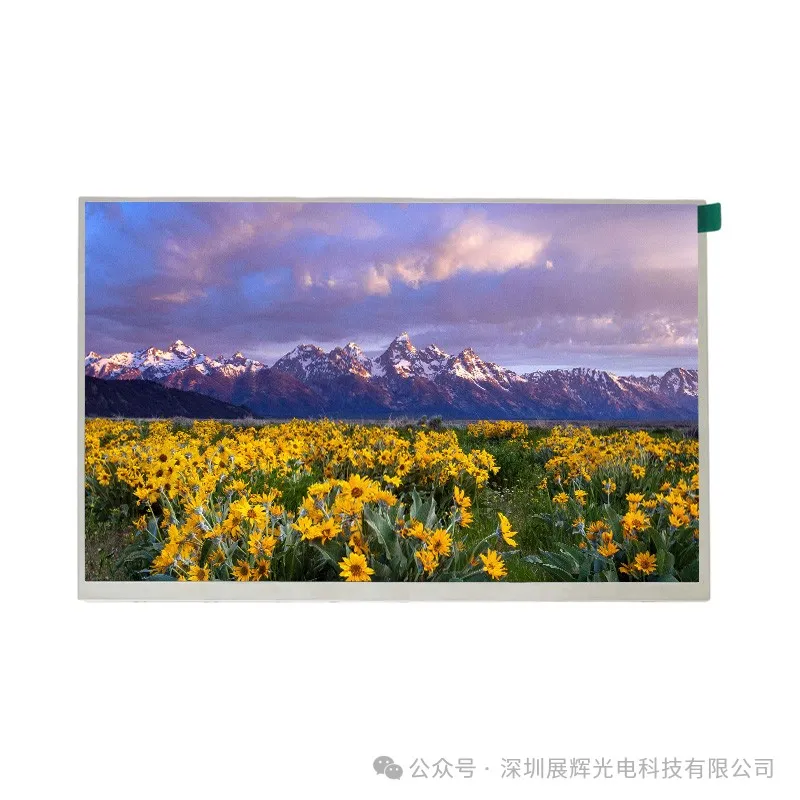

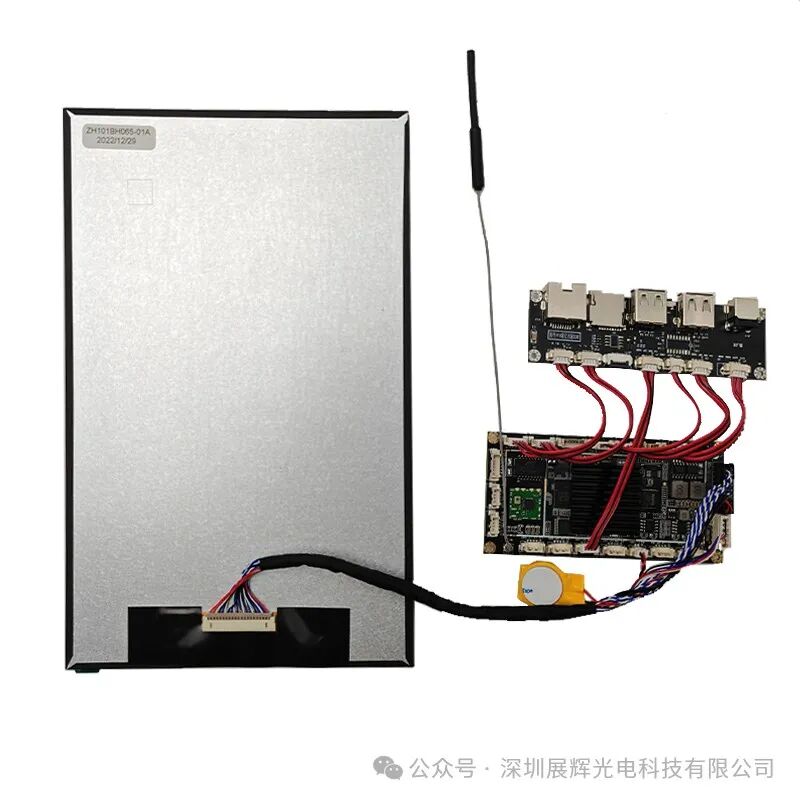

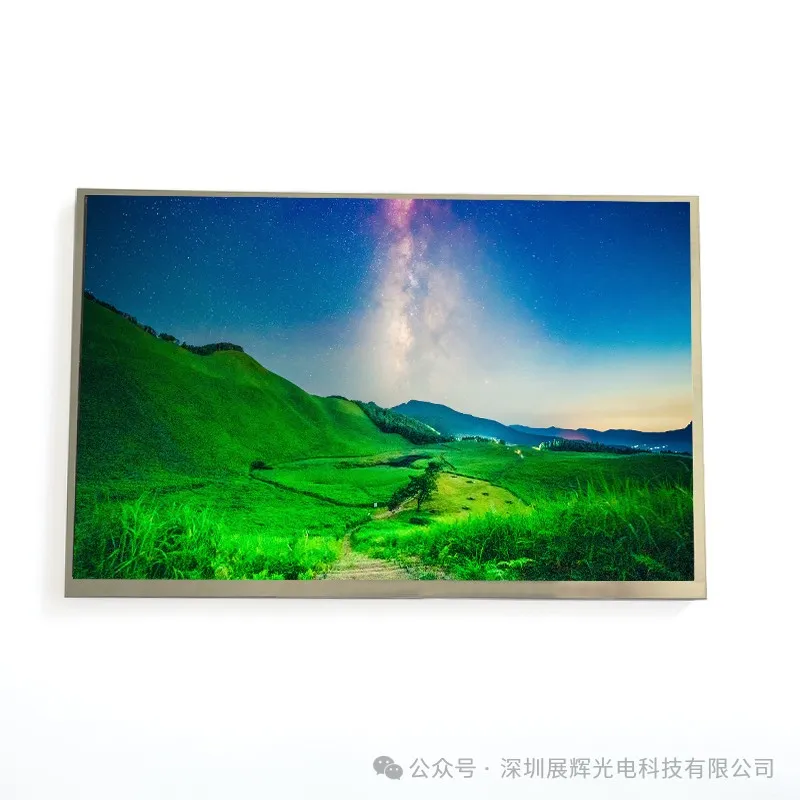

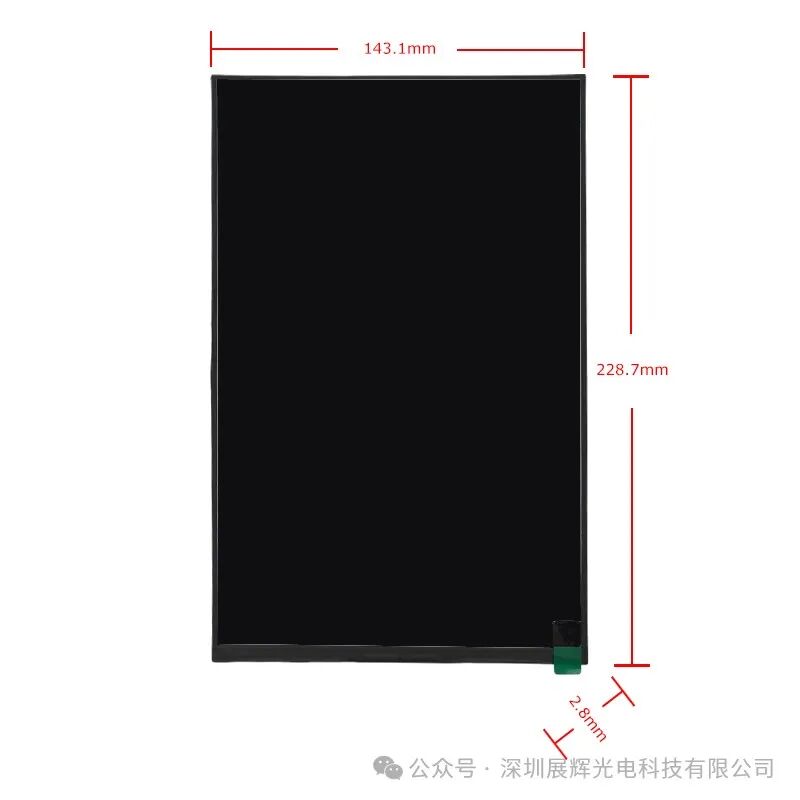

Model "ZH101BH065-01A" 10.1 inch LCD wrapped tape module display |
Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of
TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) The model is 10.1 inches, and it generally supports 300 brightness.
(3) Dimensions: 143.1(H) *228.7(V) * 2.8(T)
(4) Display resolution: 800*3(RGB)*1280
(5) Display area: 135.36*(H) *216.576(V)
(6) Display angle : IPS
(7) Interface: LVDS 20PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)

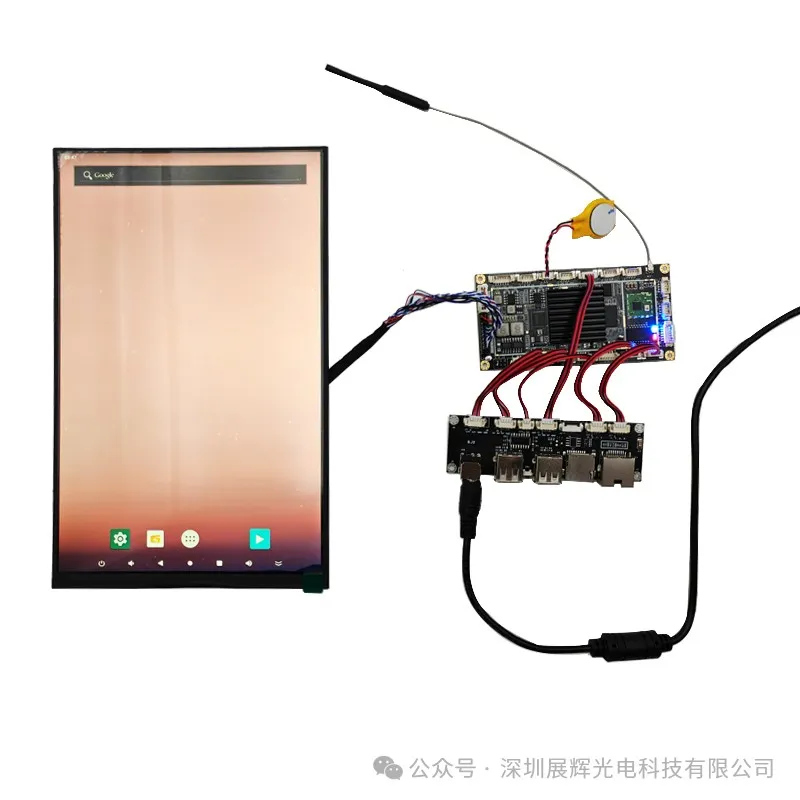

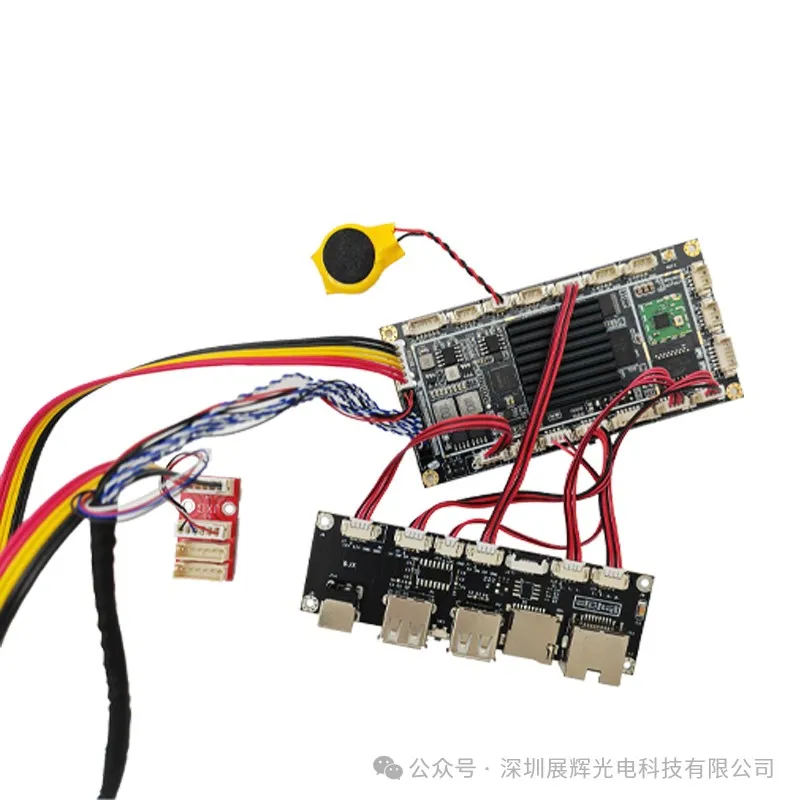

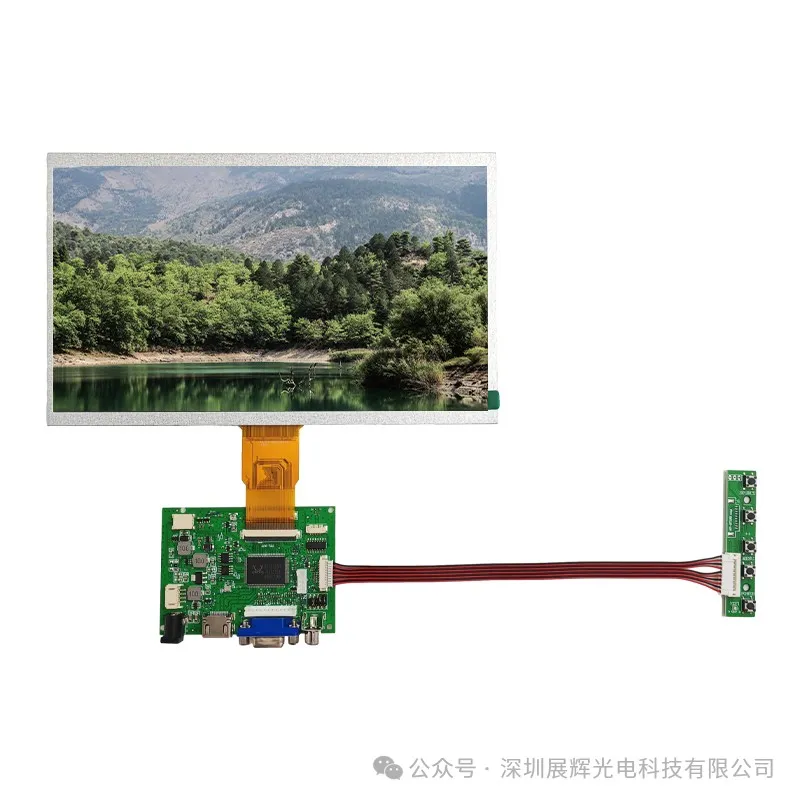

(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
02
—
Swipe left and right to see more⇨

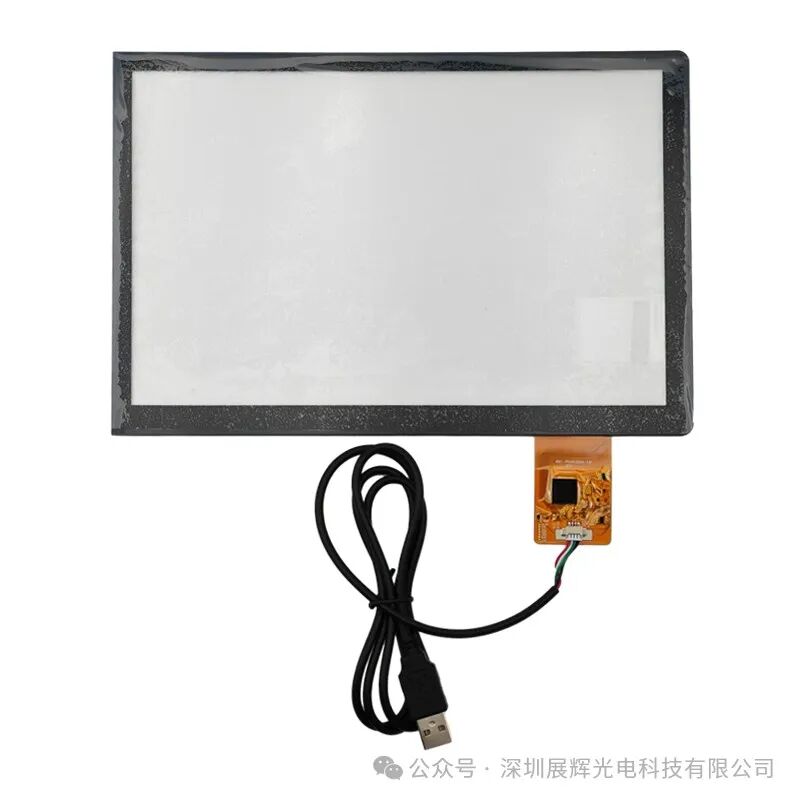

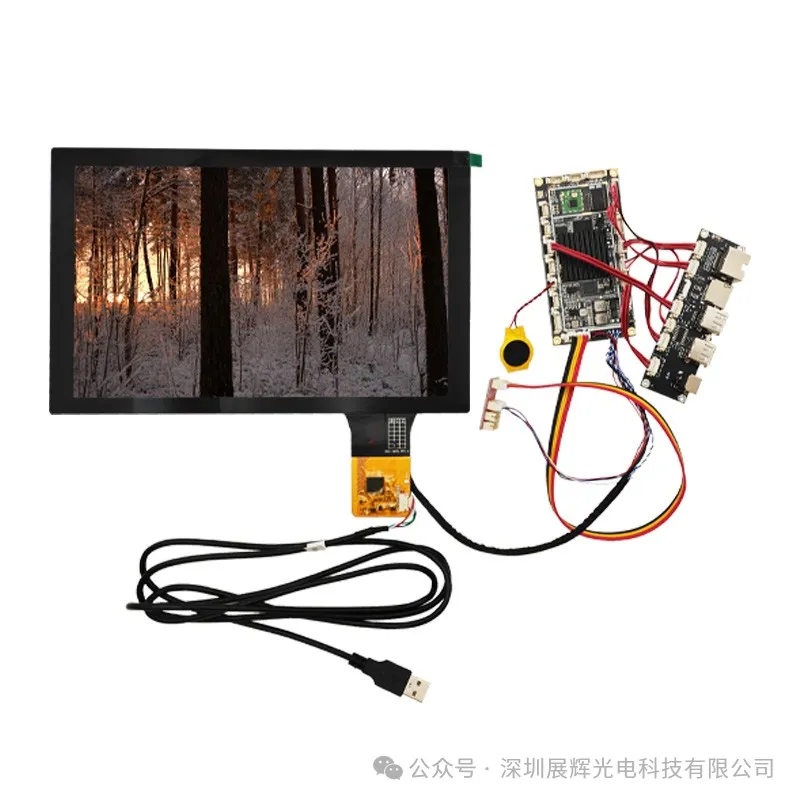

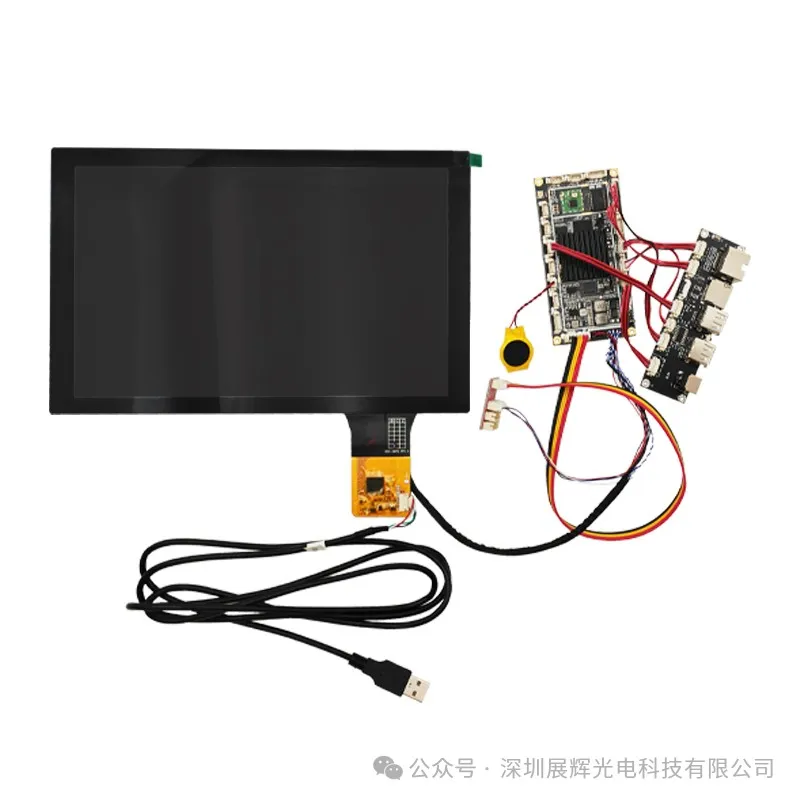

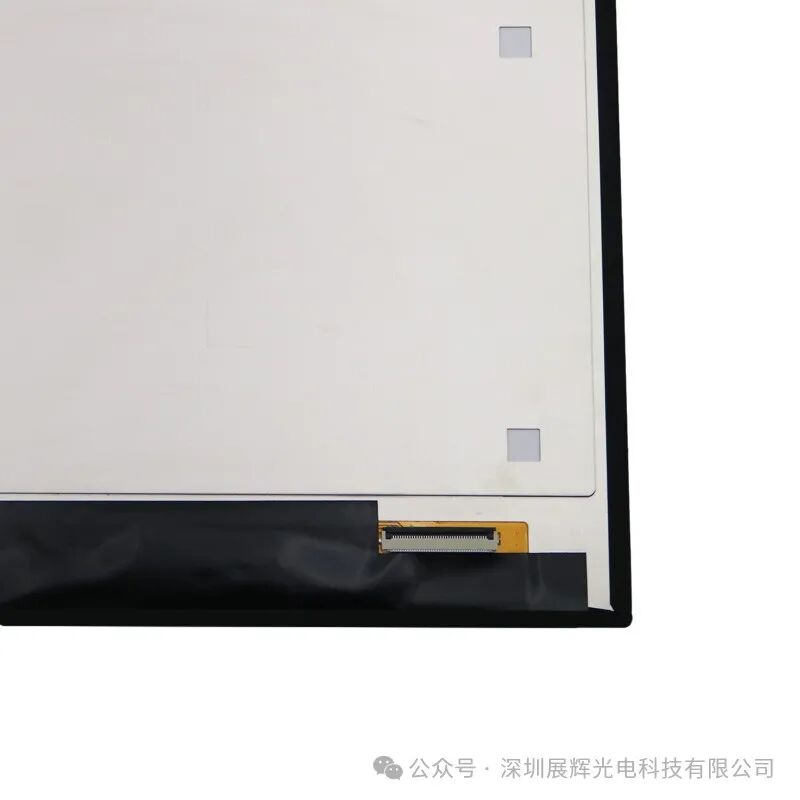

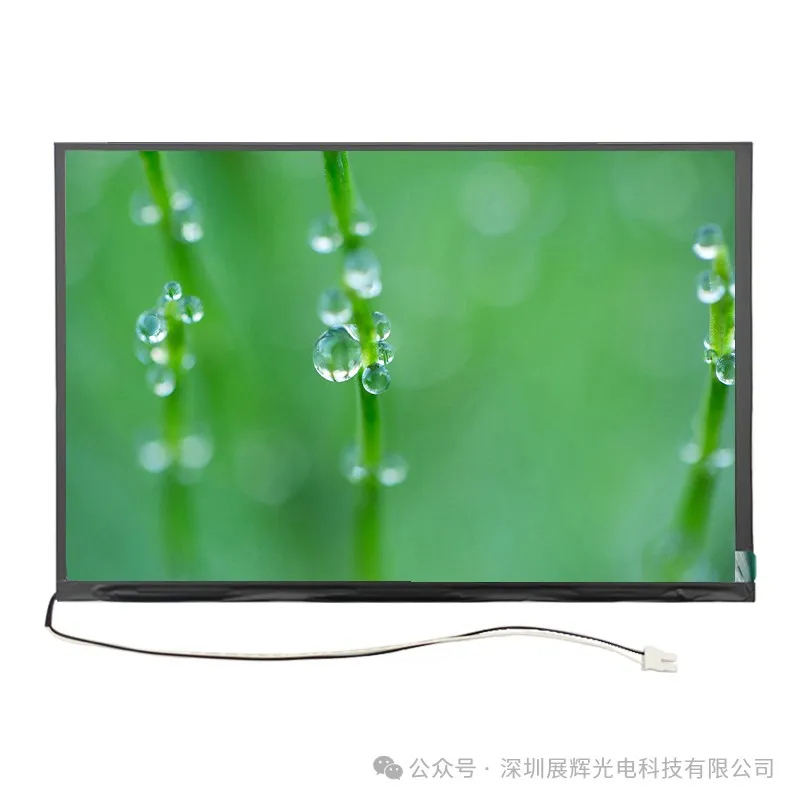

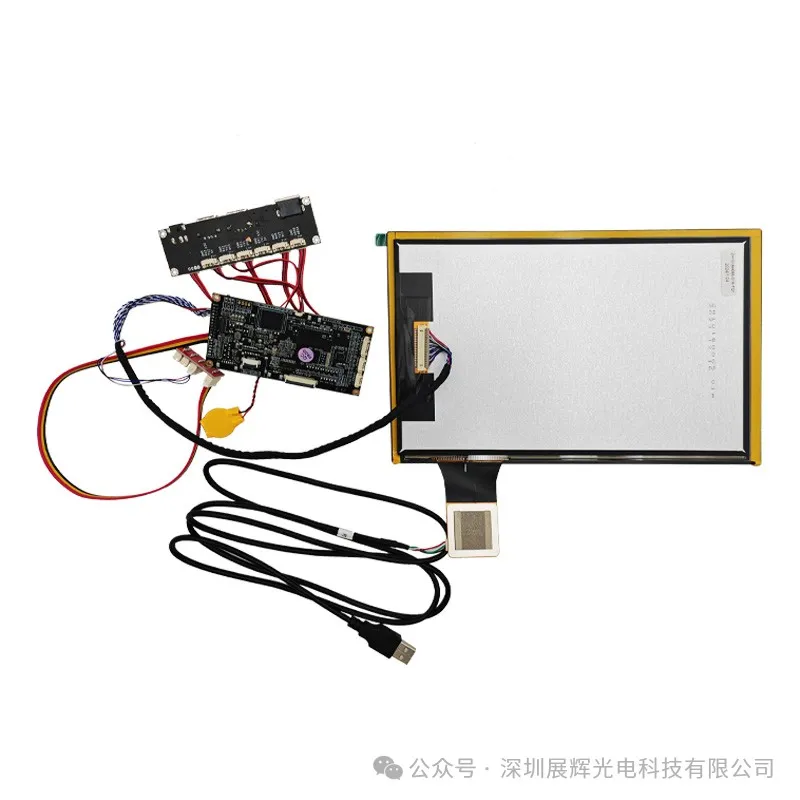

Model No. "ZH101BH065-01A-TQ1" 10.1-inch LCD touch screen with modular display |
Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of
TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) The model is 10.1 inches, and it usually supports 500 brightness.
(3) Dimensions: 227.11*147.7±0.2mm
(4) Display resolution: 1280*3(RGB)*800
(5) Display area: 218.8*137.4±0.3mm
(6) Display angle : IPS
(7) Interface: USB 10PIN
(8) Working temperature: -10~60°C
(9) Storage temperature: -10~65°C
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
03
—
Swipe left and right to see more⇨

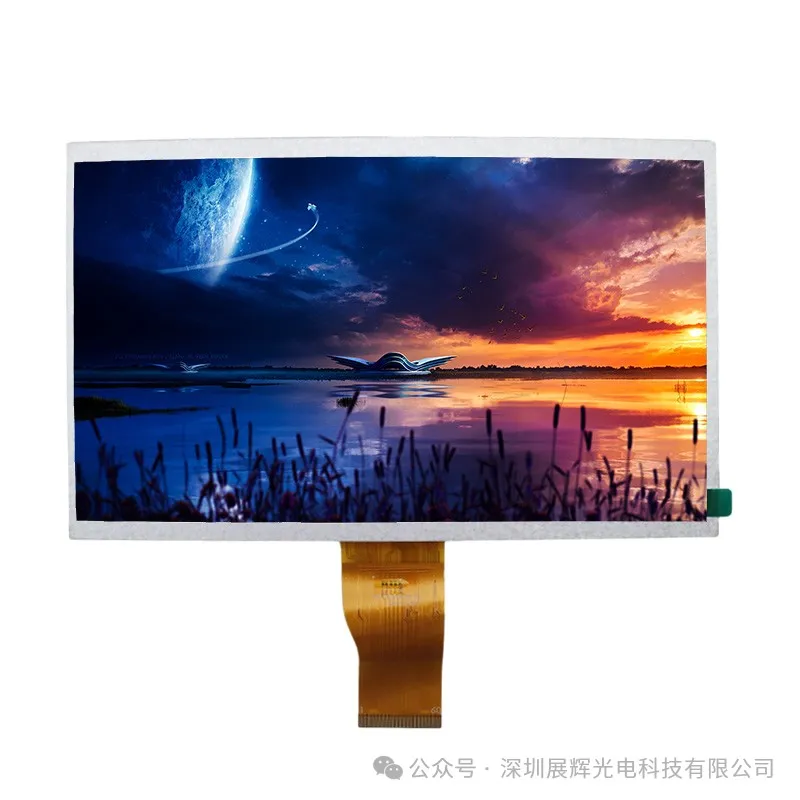

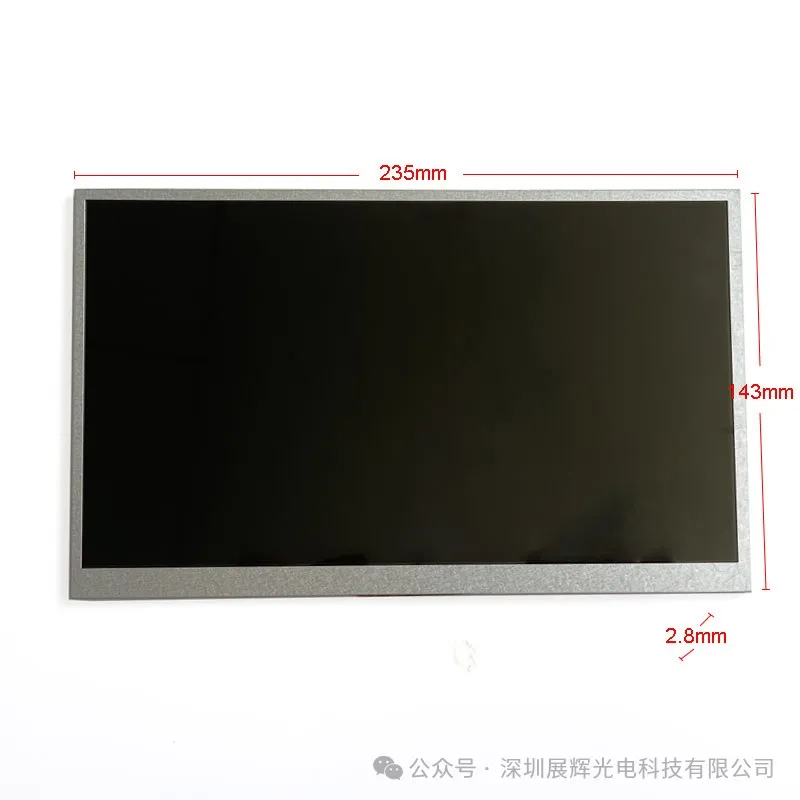

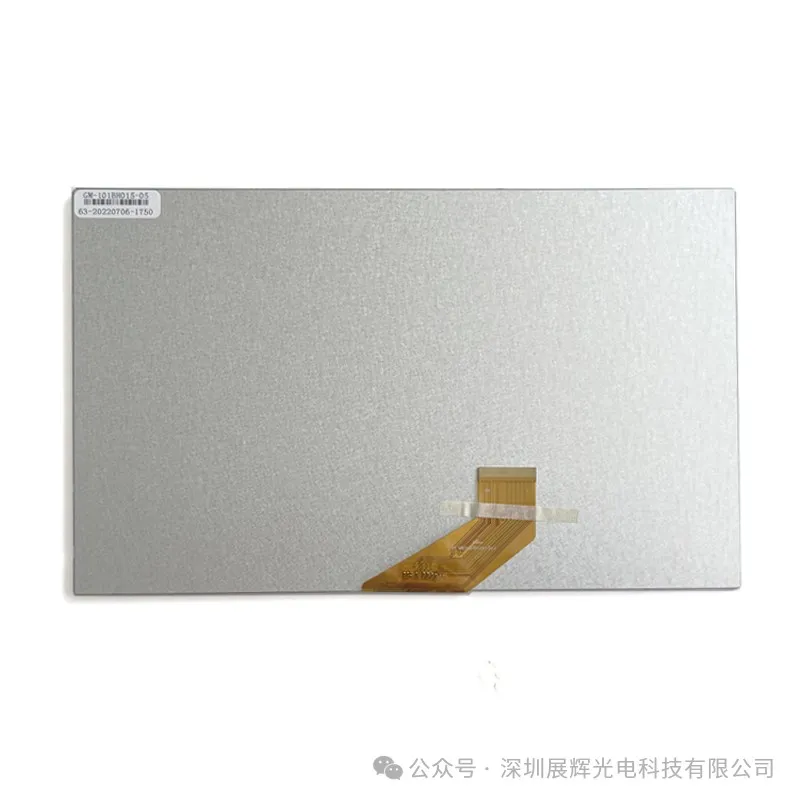

Model "ZH101BH015-05" 10.1 inch iron frame LCD screen |
Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of
TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) The model is 10.1 inches, and it generally supports 250 brightness.
(3) Dimensions: 235.0(W) *143.0(H) *2.8(T)
(4) Display resolution: 1024*3(RGB)*600
(5) Display area : 222.72*(W) *125.28(H)
(6) Display angle : IPS
(7) Interface: LVDS 40PIN
(8) Working temperature: -20~60°C
(9) Storage temperature: -30~70°C
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
04
—
Swipe left and right to see more⇨

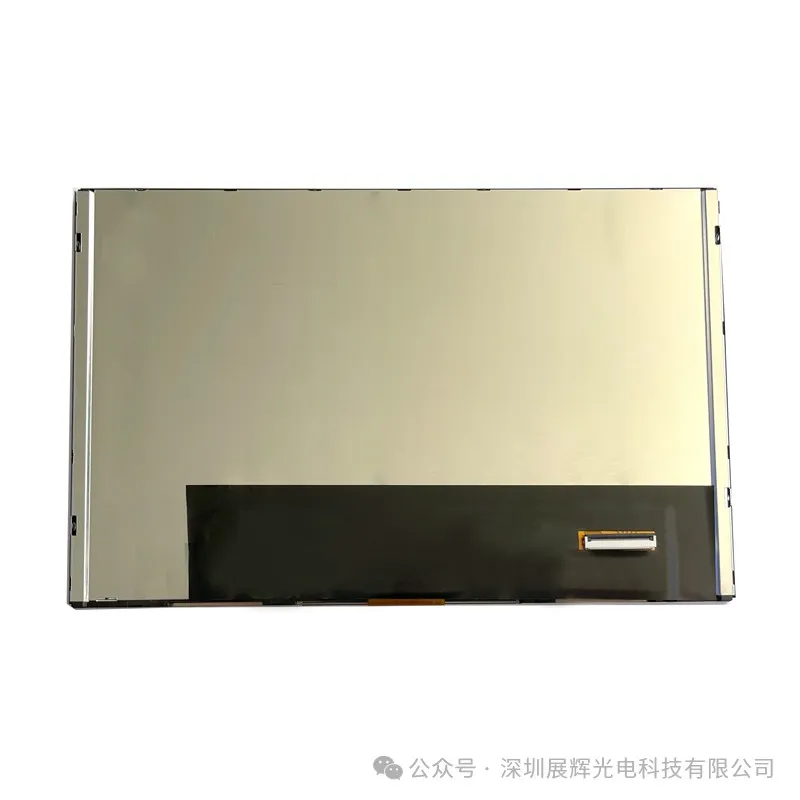

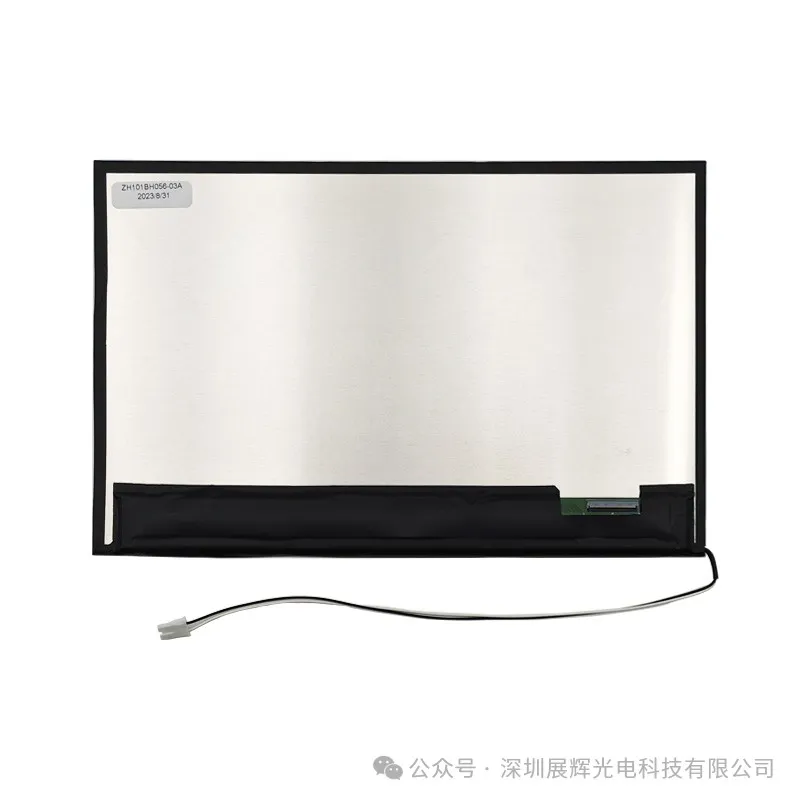

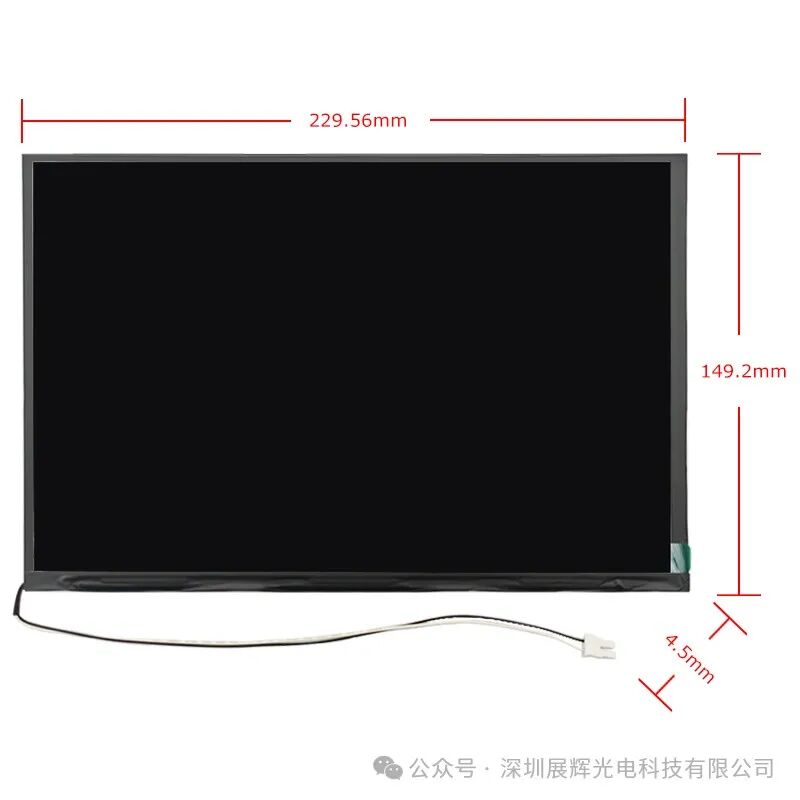

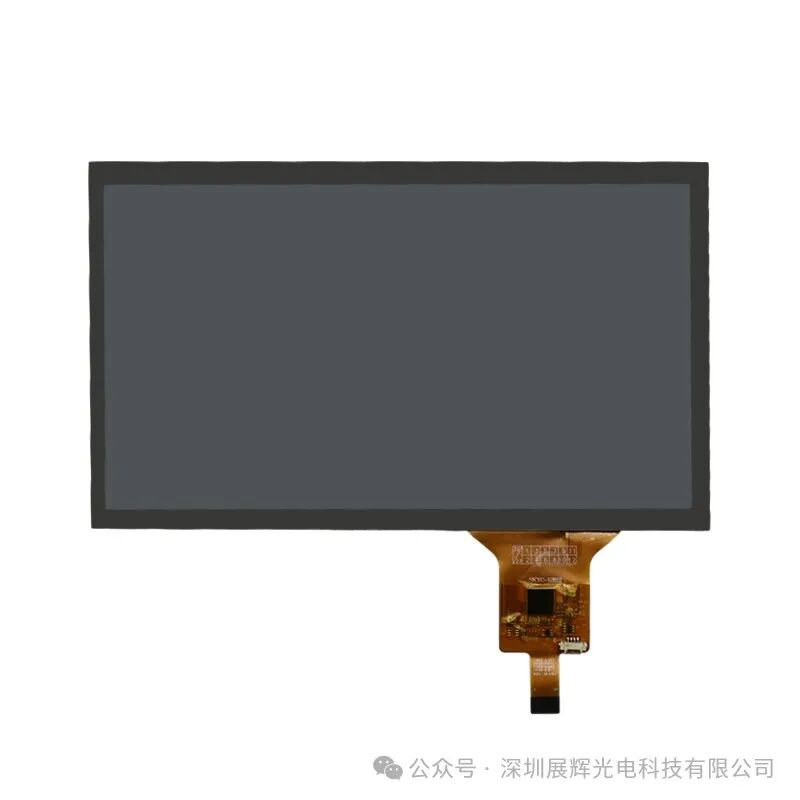

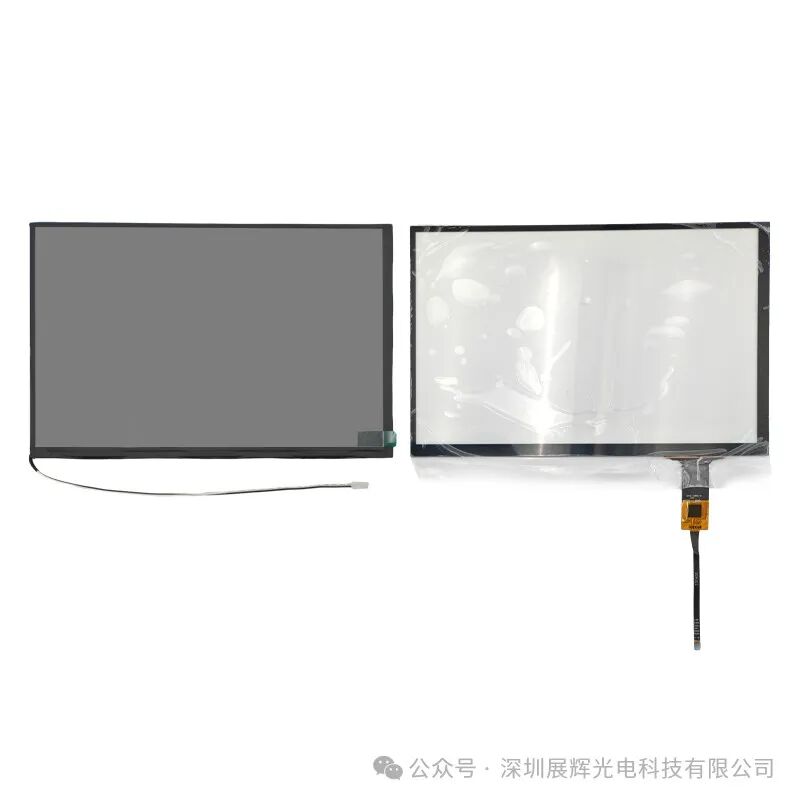

Model "ZH101BH056-03A A01" 10.1-inch LCD overmolded display (touch support) |
Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of
TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) The model is 10.1 inches, and it generally supports 1000 brightness.
(3) Dimensions: 229.56(H) *149.2(V) *4.5(D)
(4) Display resolution: 1920*3(RGB)*1200
(5)Display area: 216.81*(H)*135.5(V)
(6) Display angle : IPS
(7) Interface: MIPI 34PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
05
—
Swipe left and right to see more⇨

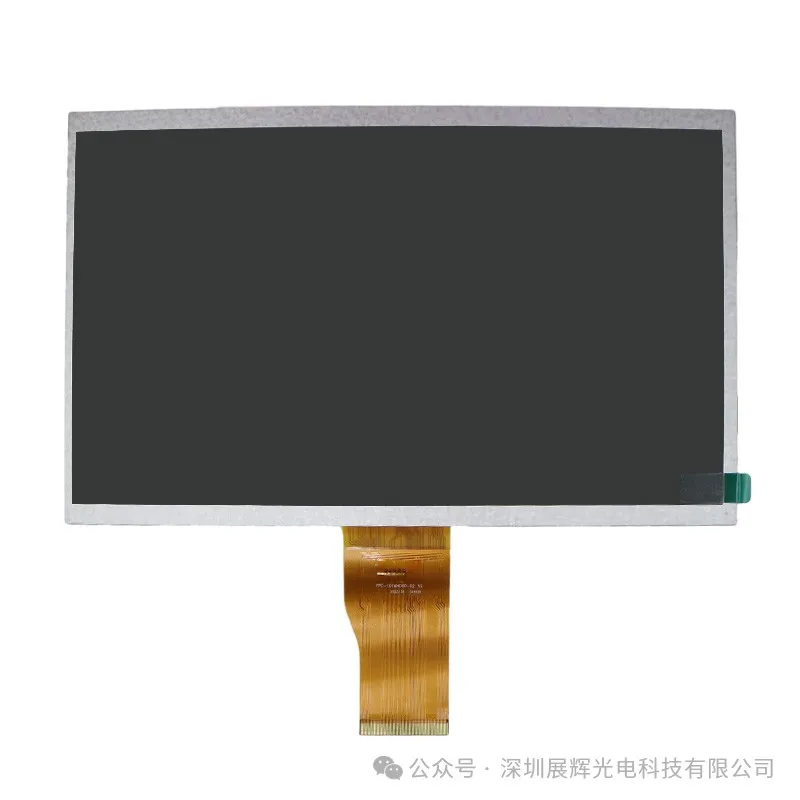

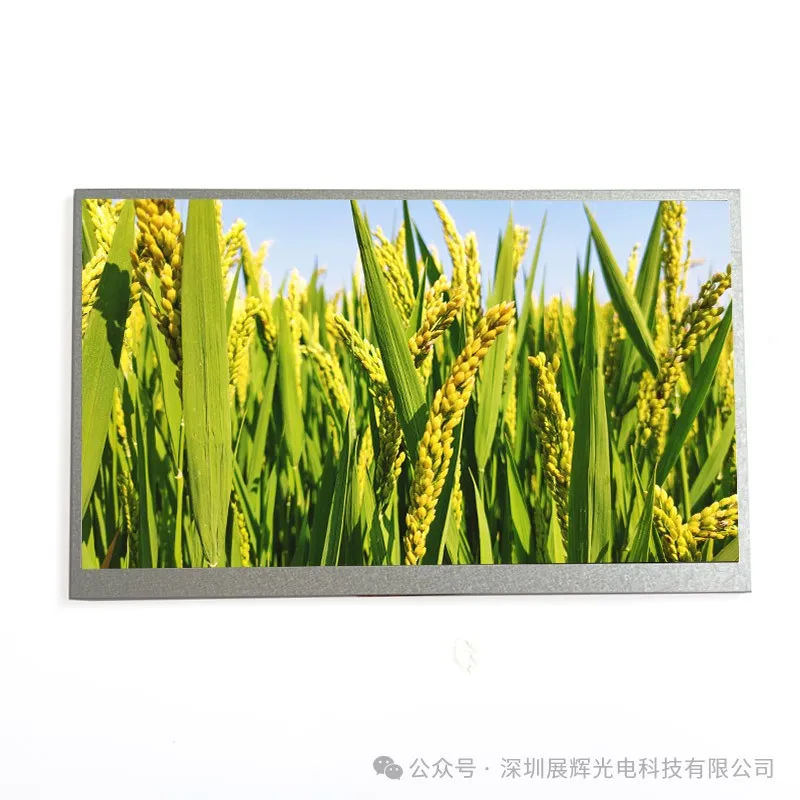

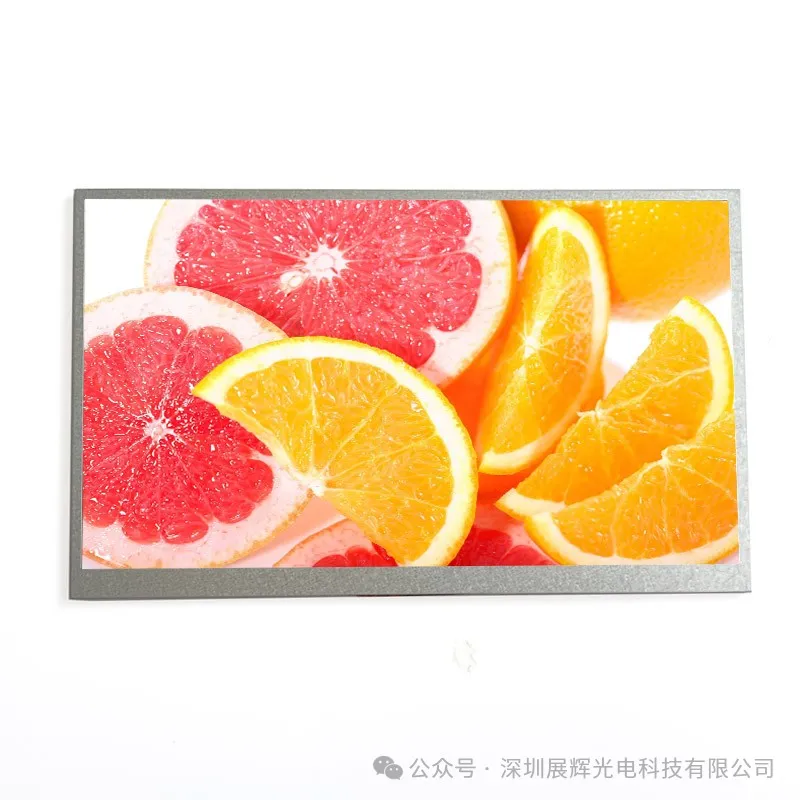

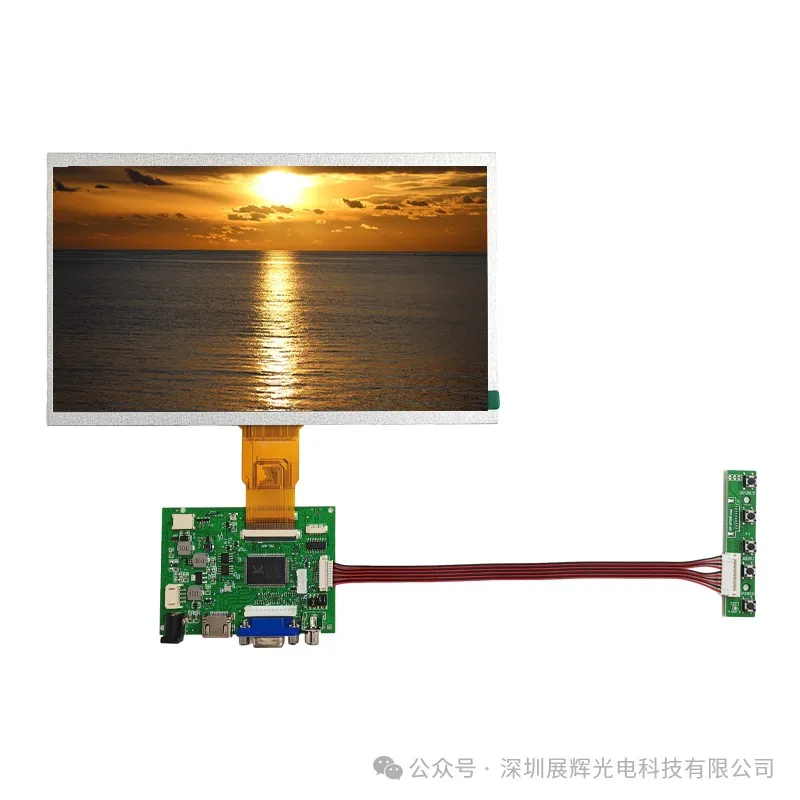

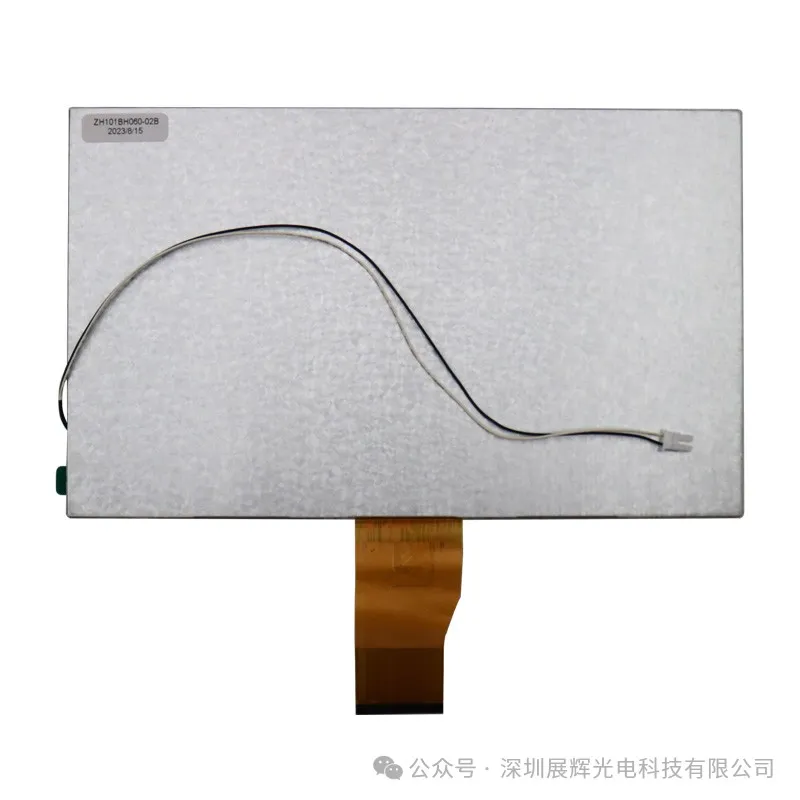

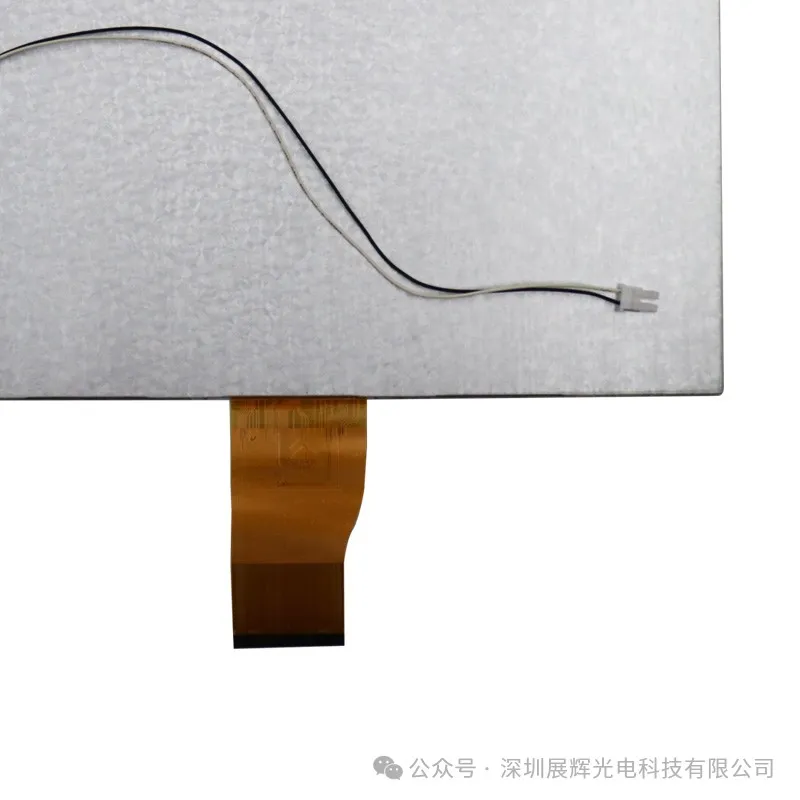

Model "ZH101BH060-02B" 10.1-inch LCD iron frame display |
Specific parameters:
(1) This model uses an amorphous thinfilm transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This
product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) The model is 10.1 inches, and it generally supports 1000 brightness.
(3) Dimensions: 235.1(H) *143.1(V) *4.7(D)
(4) Display resolution: 1024*3(RGB)*600
(5) Display area : 222.72*(H) * 125.28(V)
(6) Display angle : IPS
(7) Interface: LVDS 40PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
06
—
Swipe left and right to see more⇨

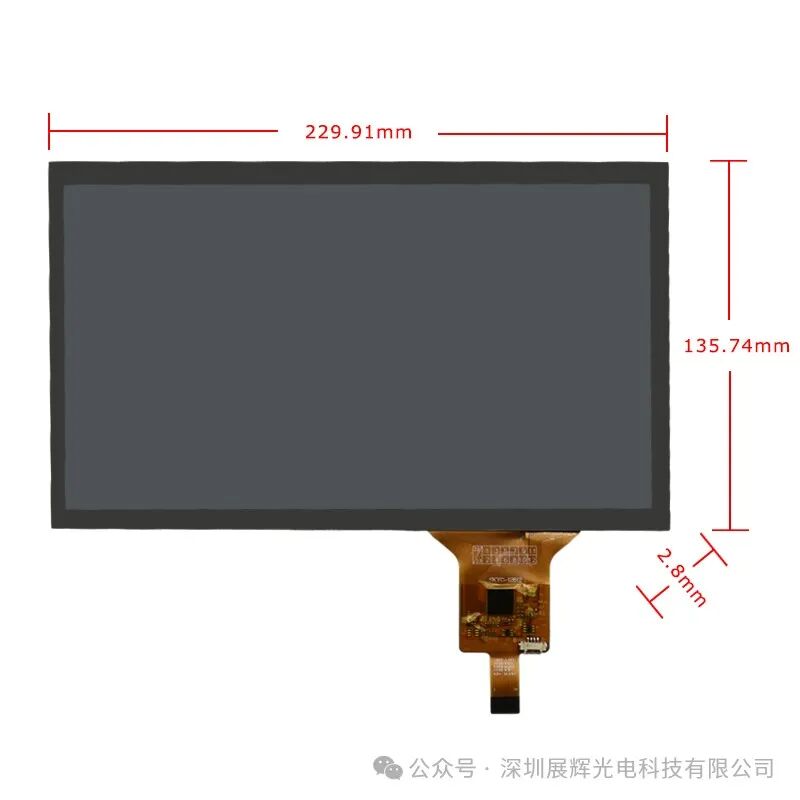

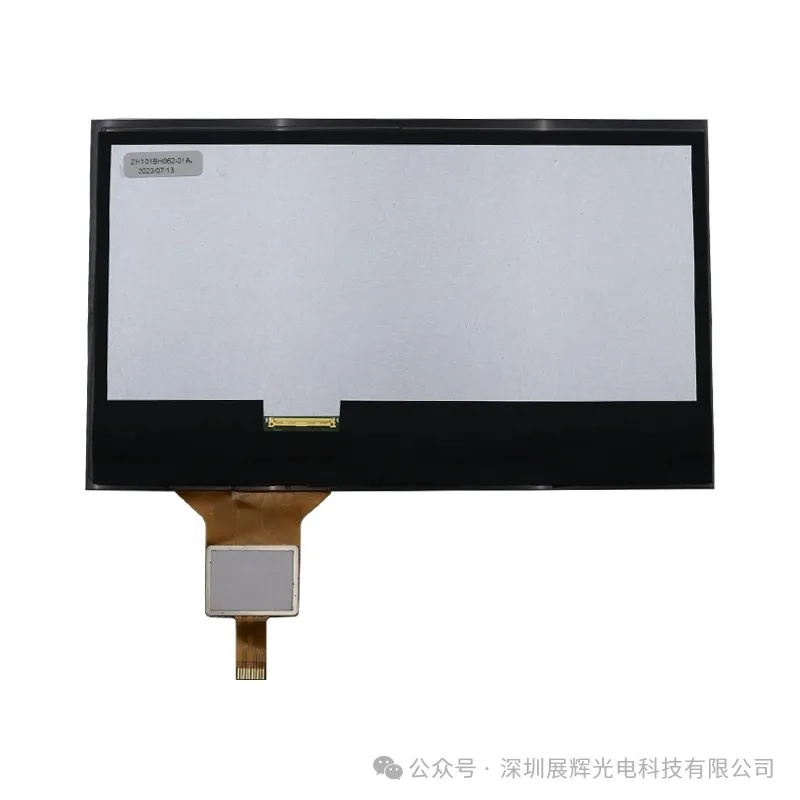

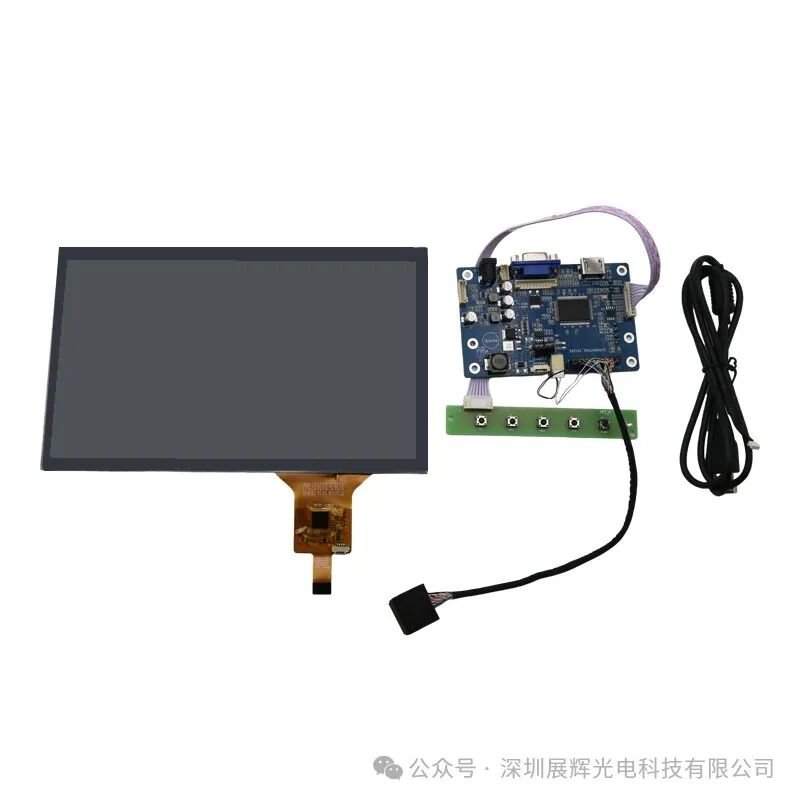

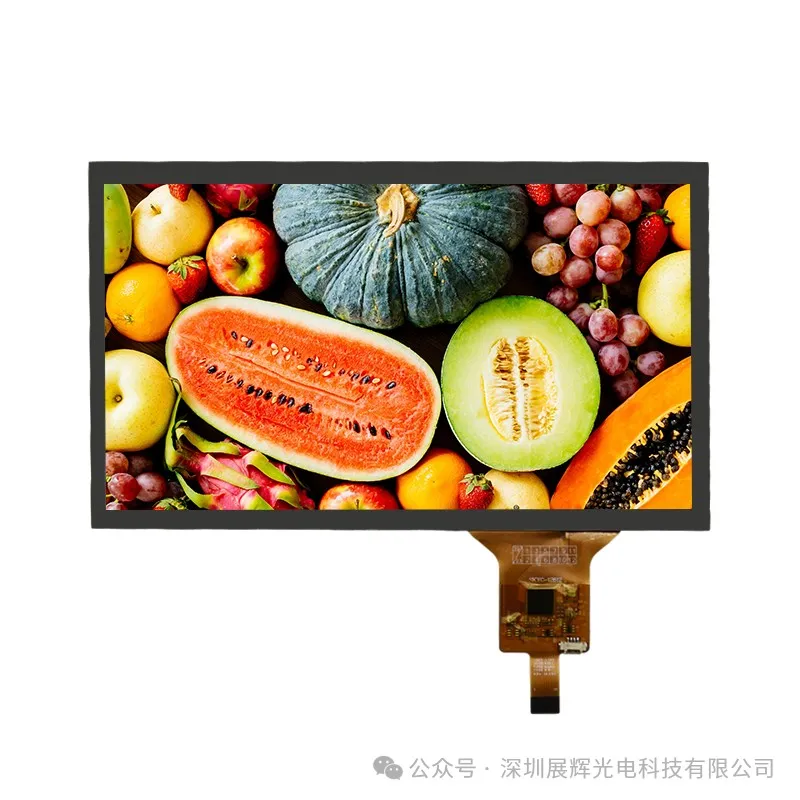

Model No. "ZH101BH062-01A" 10.1-inch LCD with touch screen |
Specific parameters:
(1) This model uses an amorphous thinfilm transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This
product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) The model is 10.1 inches, and it generally supports 280 brightness.
(3) Dimensions: 229.91 (W)× 135.74 (H) × 2.8 (D)
(4) Display resolution: 1920×RGB (3)×1080
(5) Display area : 125.712(H)x223.488(V)
(6) Display angle : IPS
(7) Interface: LVDS 40PIN
(8) Working temperature: 0~50°C
(9) Storage temperature: -10~60°C
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
07
—
Swipe left and right to see more⇨

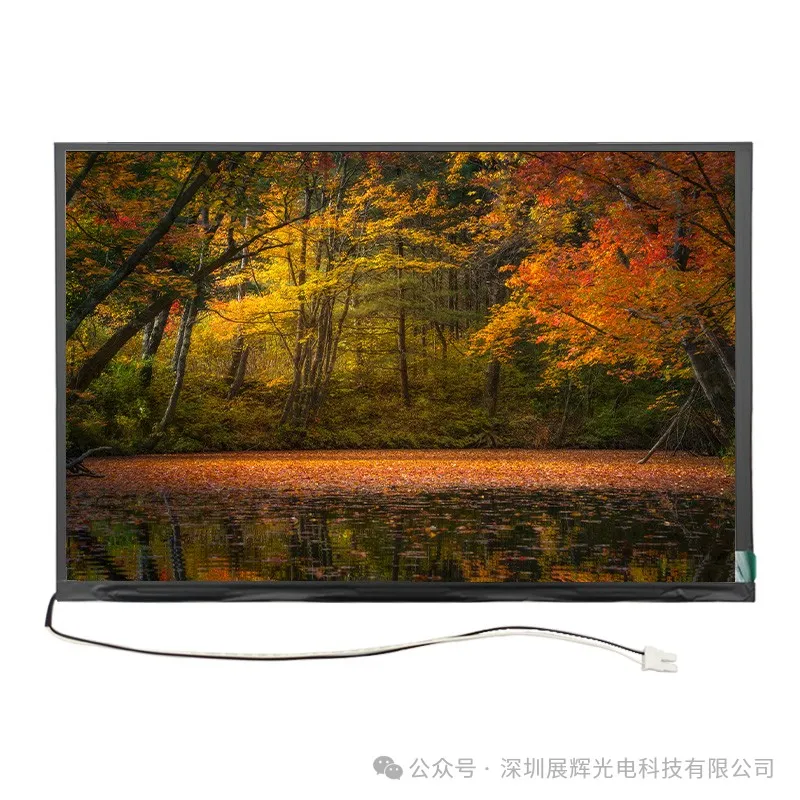

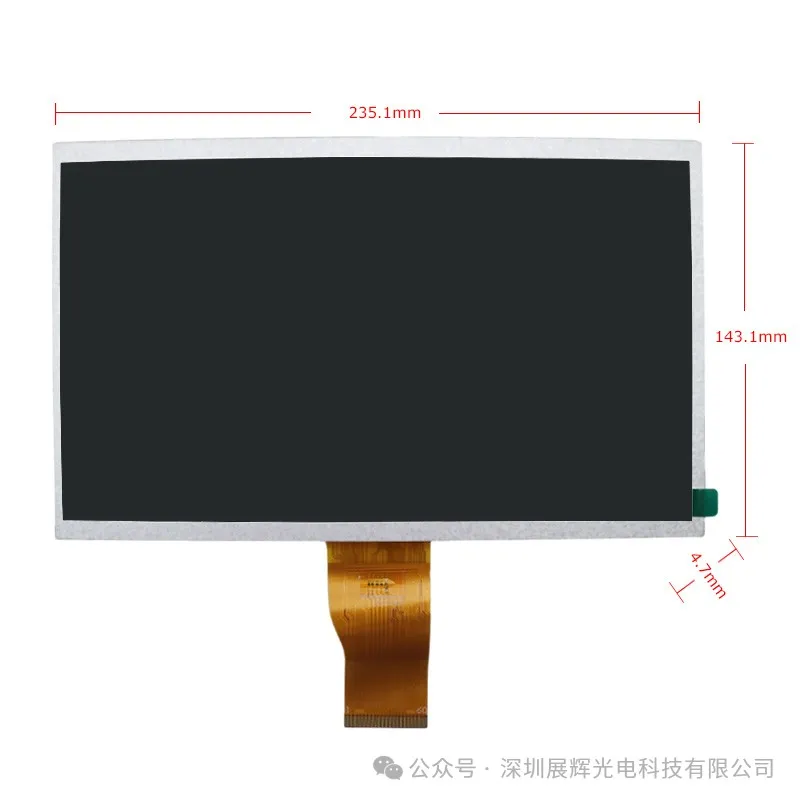

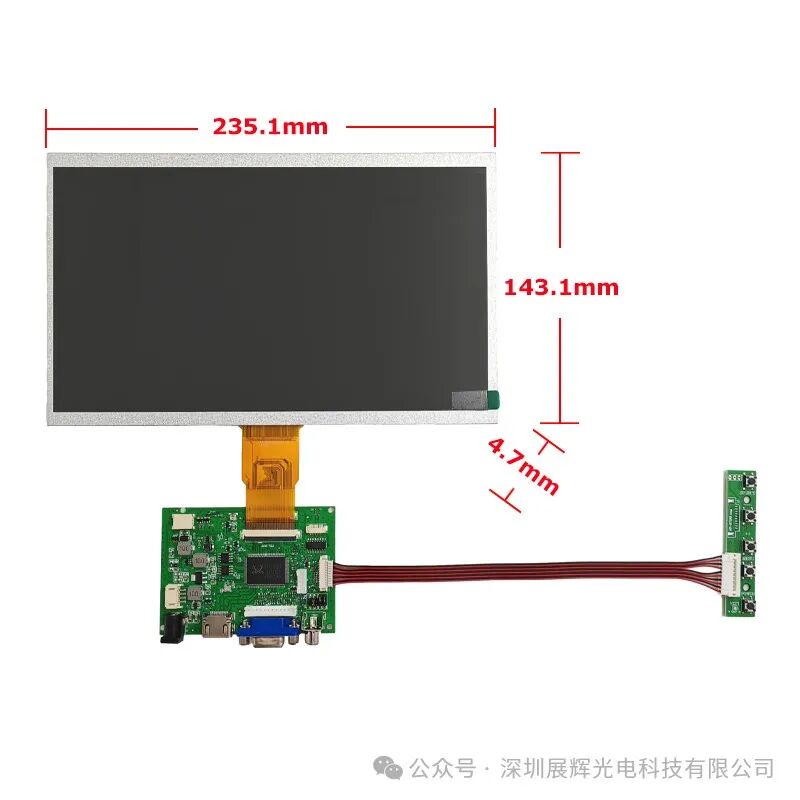

Model "ZH101BH063-01A" 10.1-inch LCD frame with modular display |
Specific parameters:
(1) This model uses an amorphous thinfilm transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This
product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) The model is 10.1 inches, and it usually supports 500 brightness.
(3) Dimensions: 235.1(H) *143.1(V) *4.7(T)
(4) Display resolution: 1024*3 (RGB)*600
(5) Display area : 222.72*(H) * 125.28(V)
(6) Display angle : IPS
(7) Interface: RGB 25PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
08
—
Swipe left and right to see more⇨

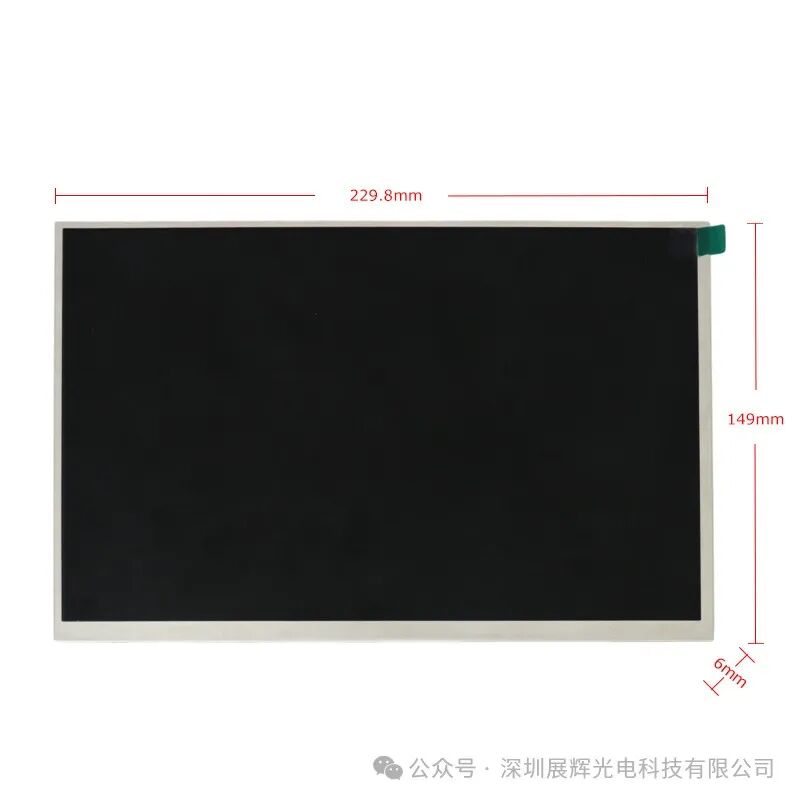

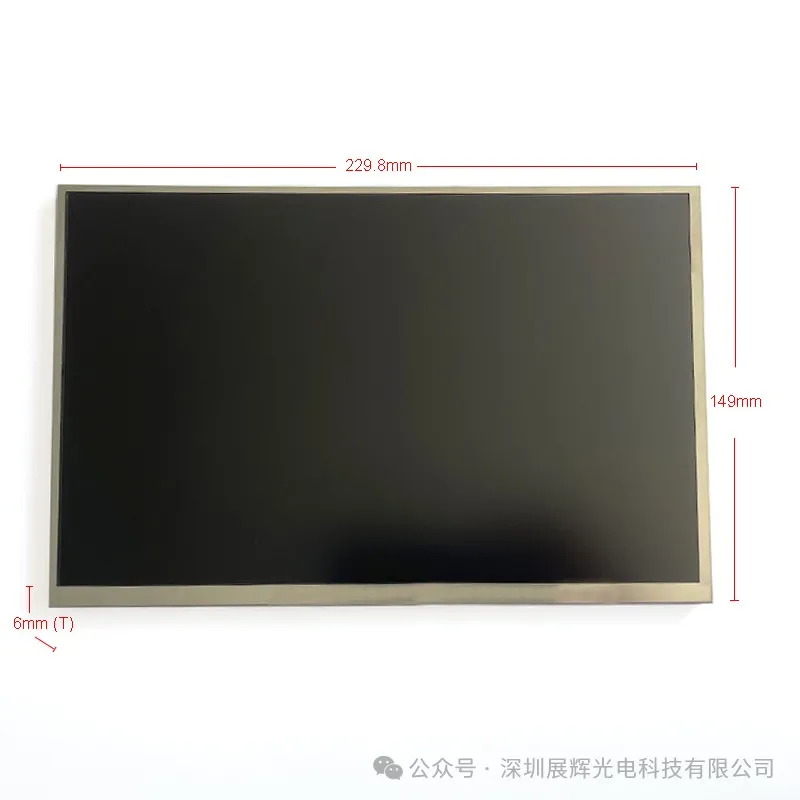

Model "ZH101HH058-01" 10.1-inch LCD iron frame display |
Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This
product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) The model is 10.1 inches, and it generally supports 1000 brightness.
(3) Dimensions: 229.8(H) *149.0(V) * 6.0(T)
(4) Display resolution: 1280*3(RGB)*800
(5) Display area : 216.96(H) * 135.6(V)
(6) Display angle : IPS
(7) Interface: LVDS 40PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
09
—
Swipe left and right to see more⇨

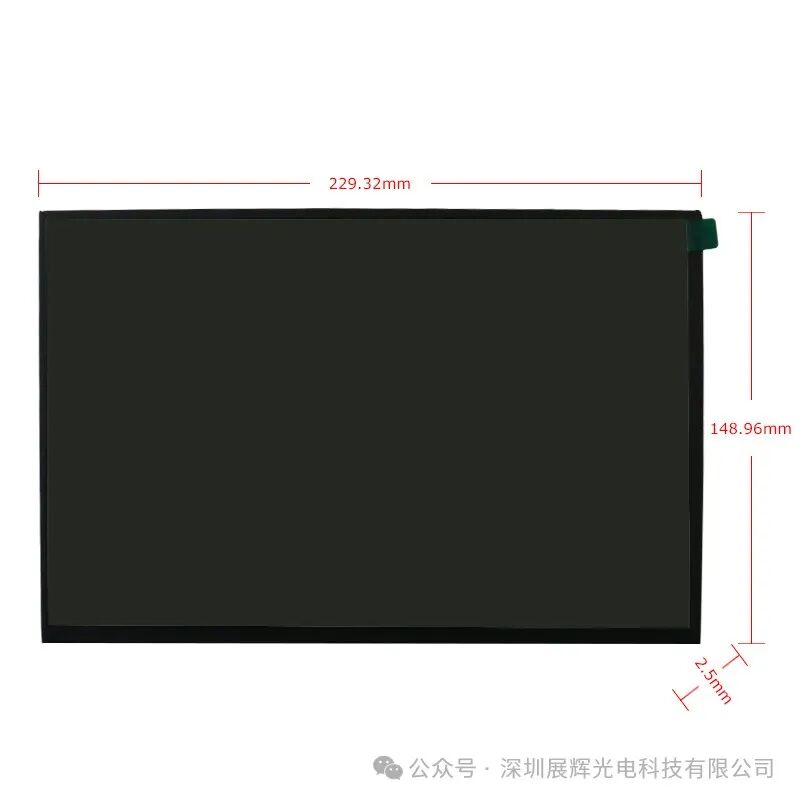

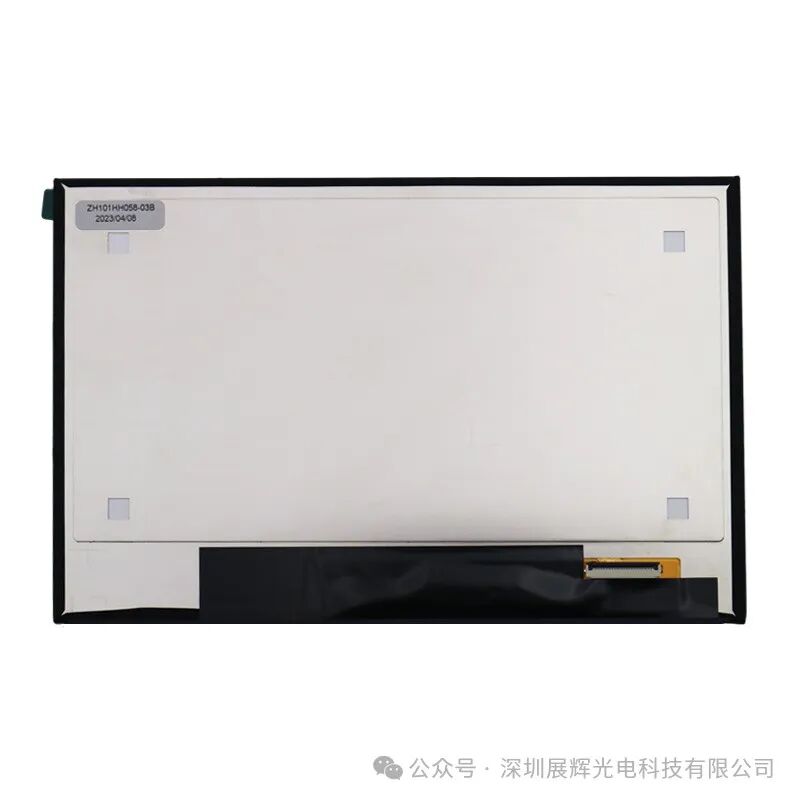

Model No. "ZH101HH058-03B" 10.1-inch LCD laminated display |
Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) The model is 10.1 inches, and it generally supports 300 brightness.
(3) Dimensions: 229.32(H) *148.96(V) *2.5(T)
(4) Display resolution: 1280*3(RGB)*800
(5) Display area : 216.96(H) * 135.6(V)
(6) Display angle : IPS
(7) Interface: LVDS 40PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
10
—
Swipe left and right to see more⇨

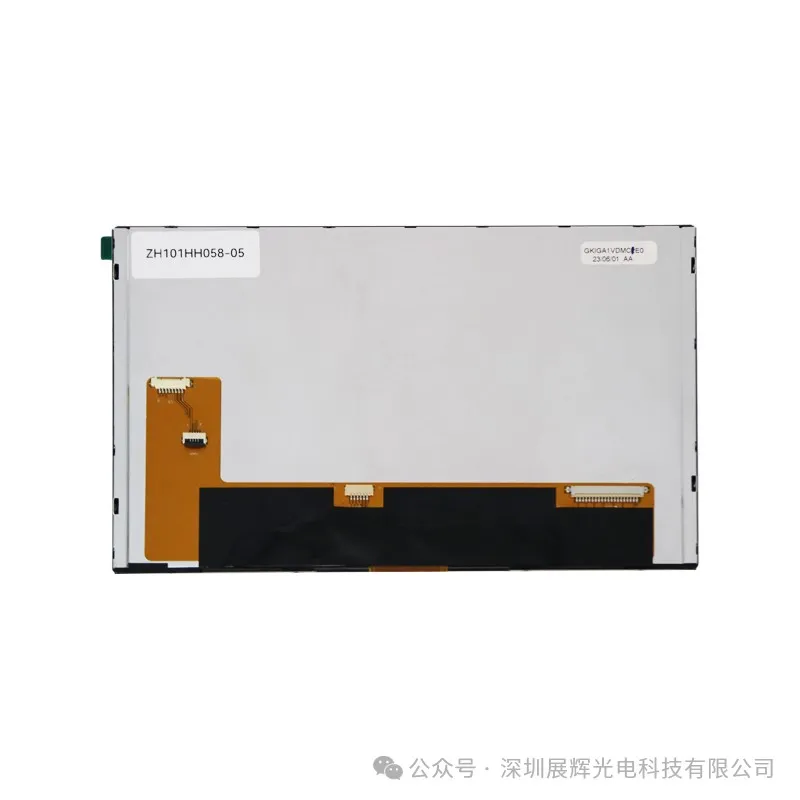

Model "ZH101HH58-05" 10.1-inch LCD iron frame display |
Specific parameters:
(1) This model uses an amorphous thin-film transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product consists of TFT LCD panel, driver IC, PCB and WLED backlight unit.
(2) The model is 10.1 inches, and it generally supports 1000 brightness.
(3) Dimensions: 229.8(W) * 149.0 (H) * 6.0 (T)
(4) Display resolution: 1280*3(RGB)*800
(5) Display area : 216.96*(W) *135.6(H)
(6) Display angle : IPS
(7) Interface: LNDS 8+6+20PIN
. . .
Support Customization:
(1) FPC (including shape design, interface definition)
(2) Backlight (including brightness, structure customization (lagging / iron frame), etc.)
(3) Touch screen (capacitive, resistive touch screen)
(4) Board + cable (such as HDMI board, Android board, playback board and other test driver board types)
