Zhanhui 4.3-inch full range of LCD modules
4.3-inch series preview
Swipe left and right to see more⇨
01
' fill='%23FFFFFF'%3E%3Crect x='249' y='126' width='1' height='1'%3E%3C/rect%3E%3C/g%3E%3C/g%3E%3C/svg%3E)
Swipe left and right to see more⇨

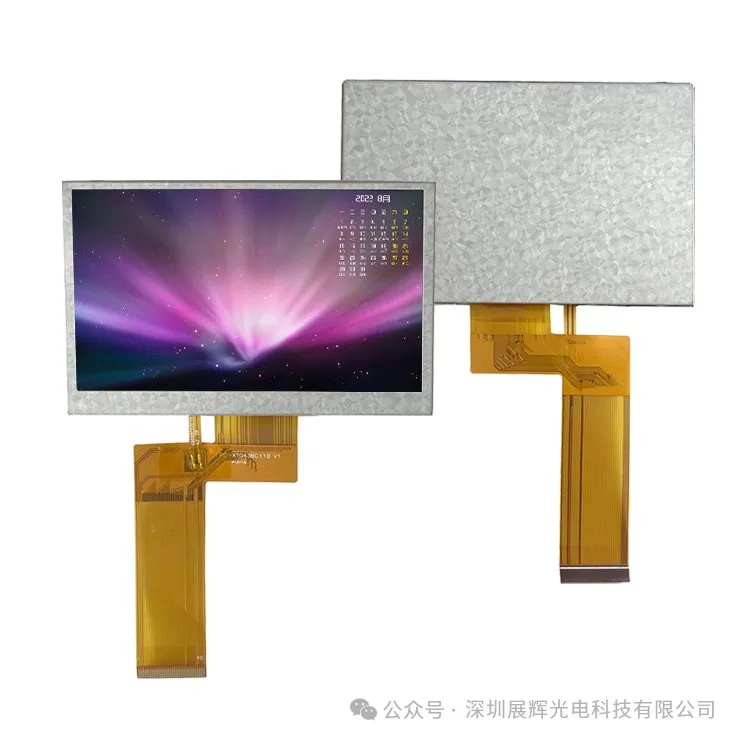

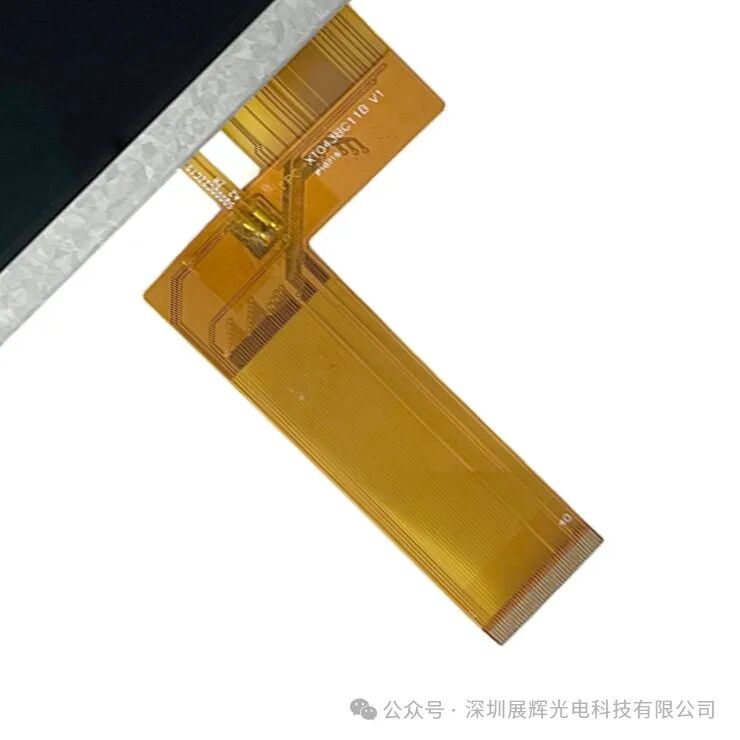

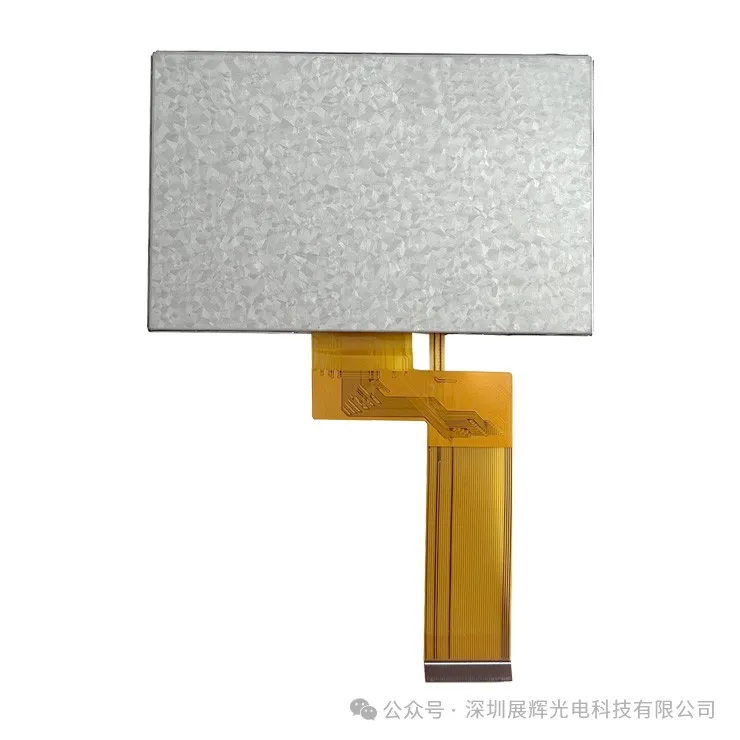

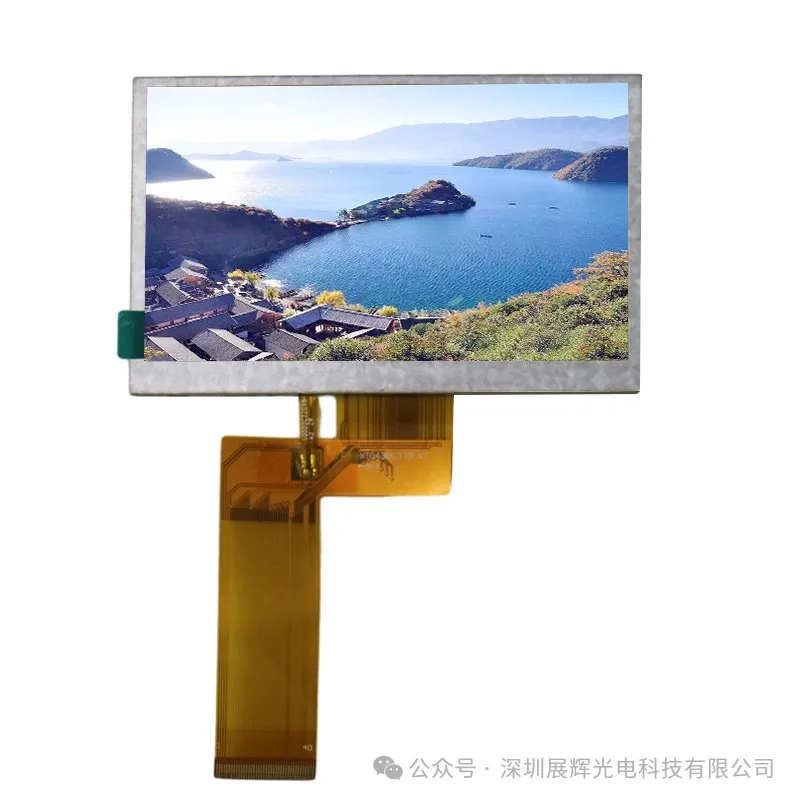

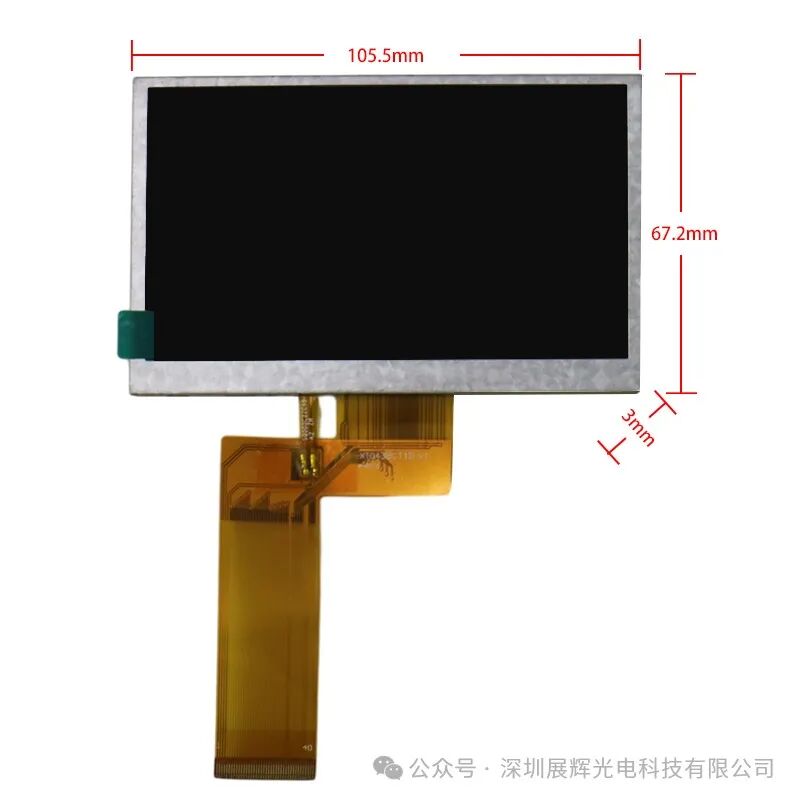

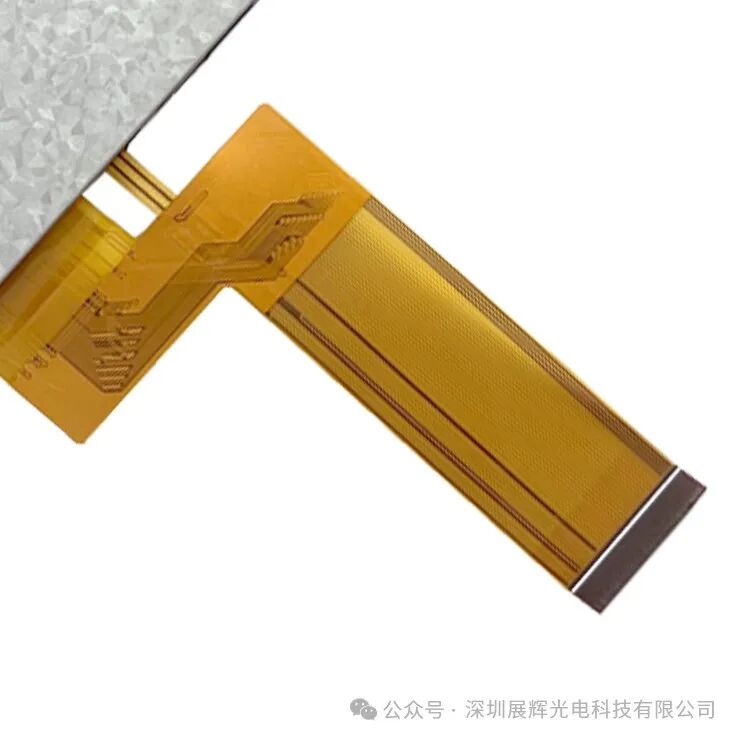

Model "ZH043BC018-04" 4.3 inch iron frame LCD screen |
Specific parameters:
(1) This model uses an amorphous thinfilm transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product is composed of LCD liquid crystal panel, polarizer POL, driver IC, cable FPC, capacitive touch CTP, backlight BL and cover plate CG matching. With a horizontal 480*272 vertical pixel array, each pixel is divided into red, green, and blue dots, which are arranged in vertical stripes, this panel can display 16.7M colors.
(2) Model size is 4.3 inches Conventional support 450cd/㎡ (brightness) |
(3) Dimensions: 105.5(H) *67.2(V) * 3.0(T)mm |
(4) Display resolution: 480*3(RGB)*272 |
(5) Display area (A.A): 95.04*(H) *53.86(V) |
| (6) Display angle : IPS |
| (7) Interface: RGB 40PIN |
| (8) Storage temperature: -20°C TO +80°C |
| (9) WORKING TEMPERATURE: -10°C TO +70°C |
...
Support Customization:
02
—
Swipe left and right to see more⇨

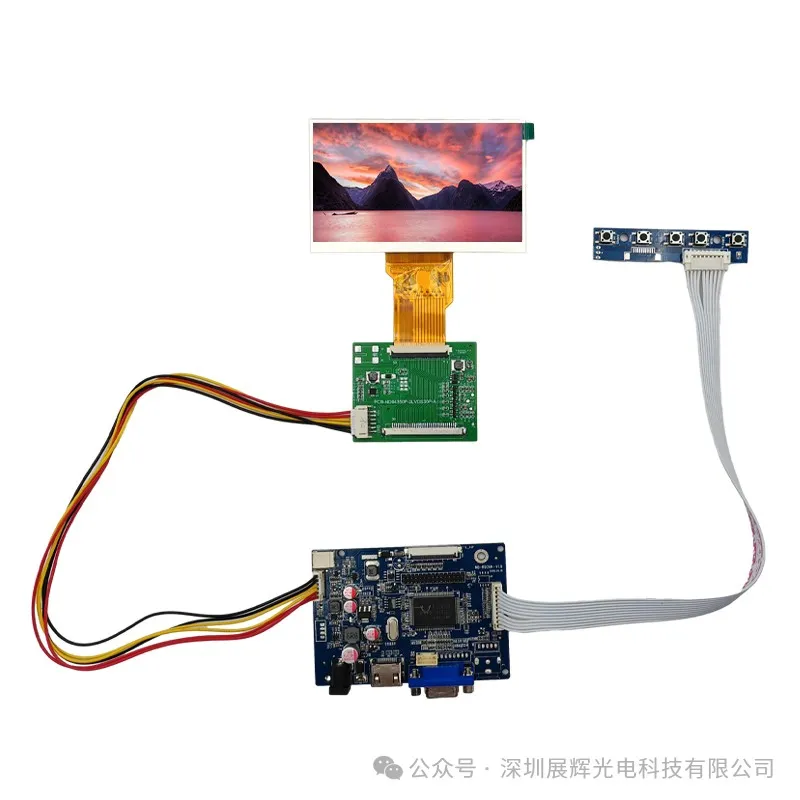

Model "ZH043PIFHD001-01A" 4.3-inch iron-framed LCD with module display |
(1) This model uses an amorphous thinfilm transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product is composed of LCD liquid crystal panel, polarizer POL, driver IC, cable FPC, capacitive touch CTP, backlight BL and cover plate CG matching. With a horizontal 1920*1080 vertical pixel array, each pixel is divided into red, green, and blue dots, which are arranged in vertical stripes, this panel can display 16.7M colors.
⑦接口 : LVDS 50PIN
(2) Model size is 4.3 inches Conventional support 1000cd/㎡ (brightness), up to 2000cd/㎡ (brightness) |

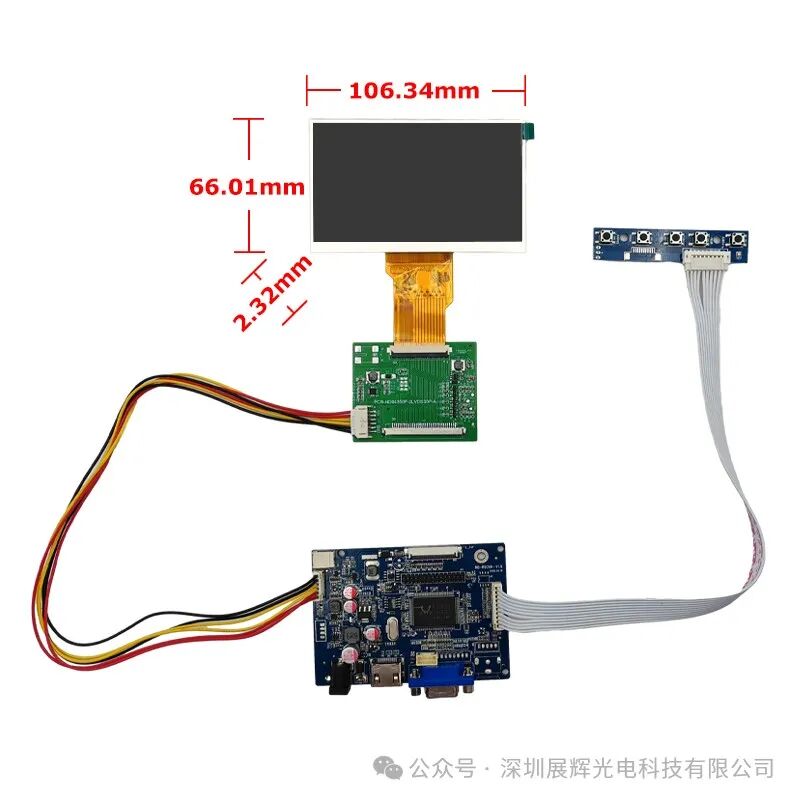

(3) Dimensions: 106.34(W) * 66.01(H) * 2.32(T) mm (with FPC): 106.34(W) * 99.46 (H) * 2.32 (T) mm |
(4) Display resolution: 1920*3(RGB)*1080 |
(5) Display area (A.A): 100.8*(H) *56.7(V) |
| (6) Display angle : IPS |
| (7) Interface: LVDS 50PIN |
| (8) STORAGE TEMPERATURE: -30°C TO +80°C |
| (9) WORKING TEMPERATURE: -20°C TO +70°C |
...

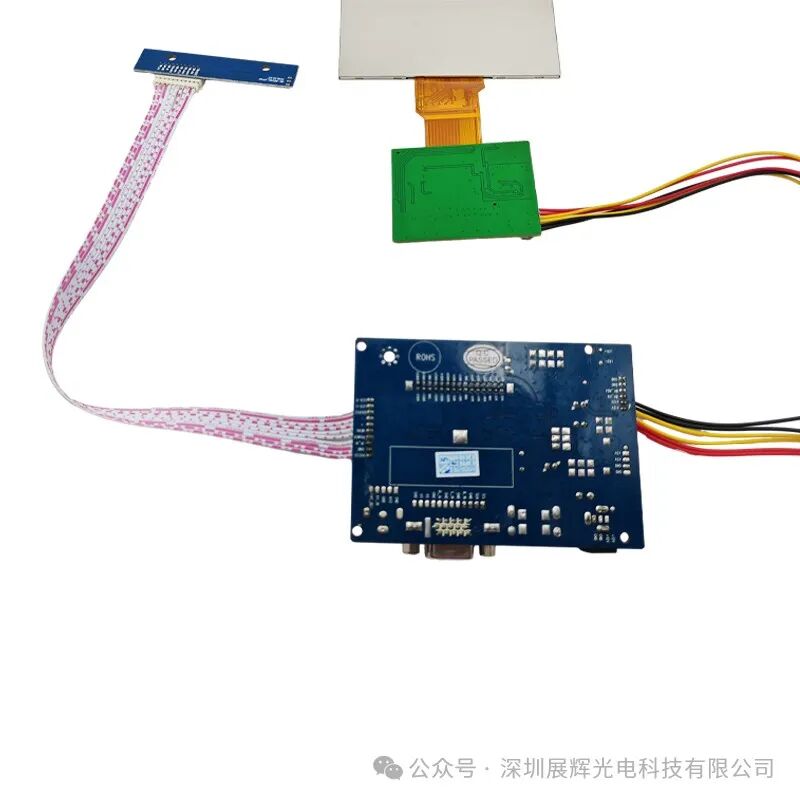

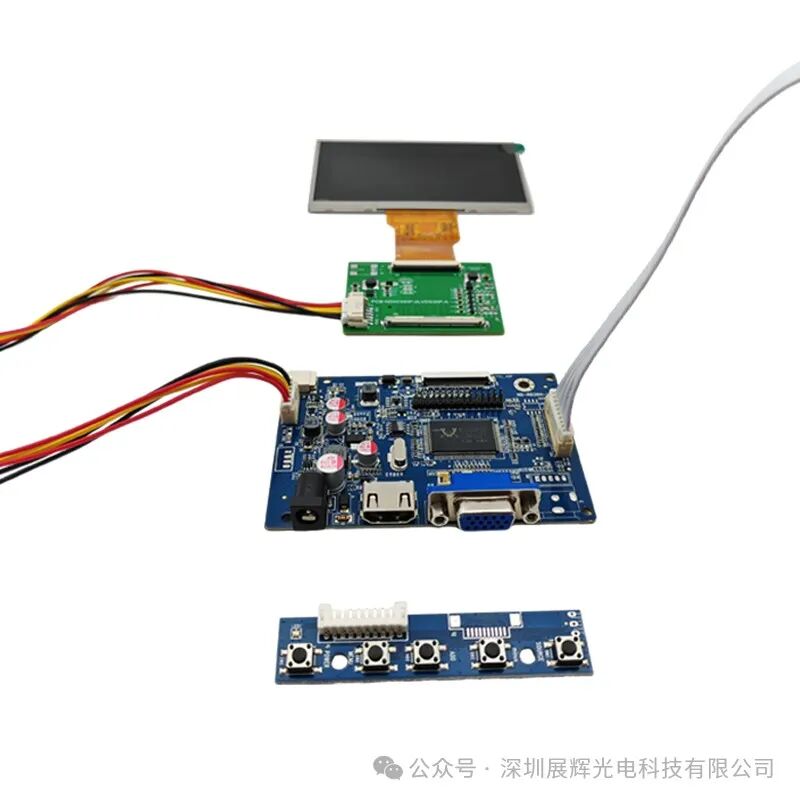

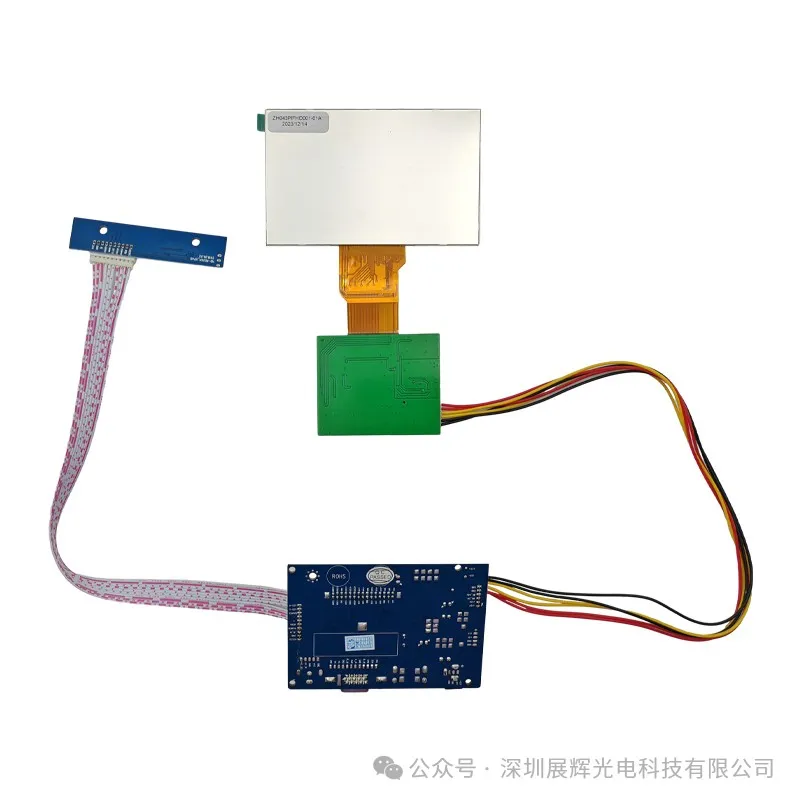

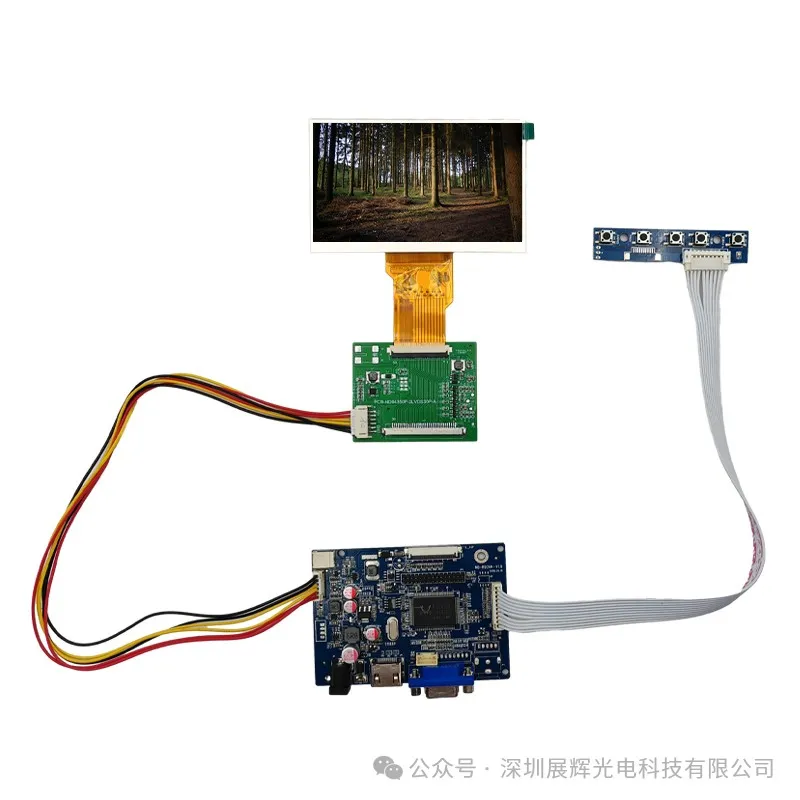

The above configurations:
◎Plate+Wire
| HDMI | EDP + LVDS + HDMI + DB-15 |

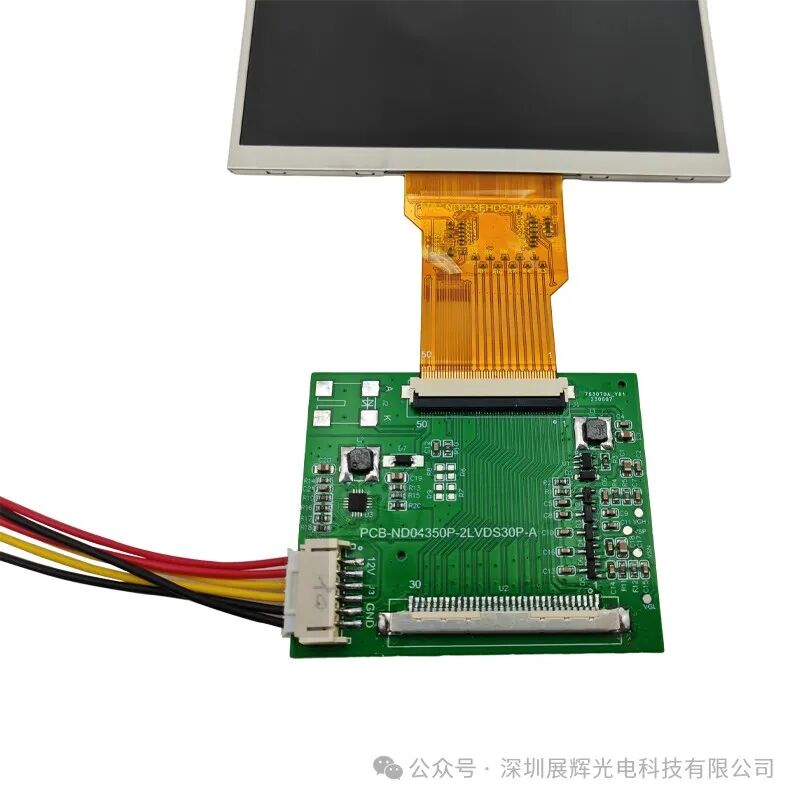

Adapter plate | LVDS+EDP |
| Button board | Power switch + basic settings + switch mode |
03
—
Swipe left and right to see more⇨

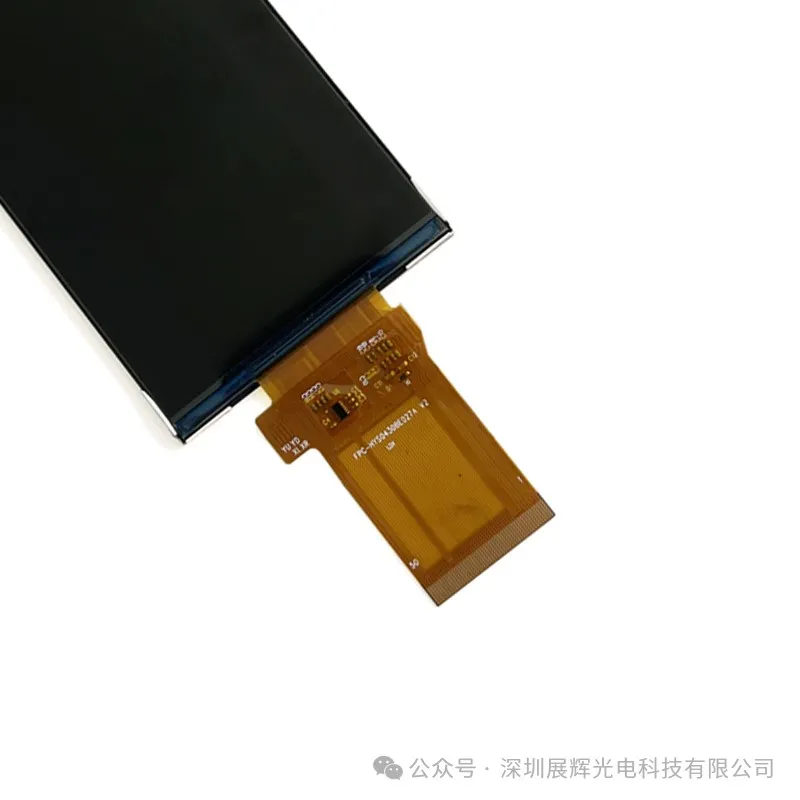

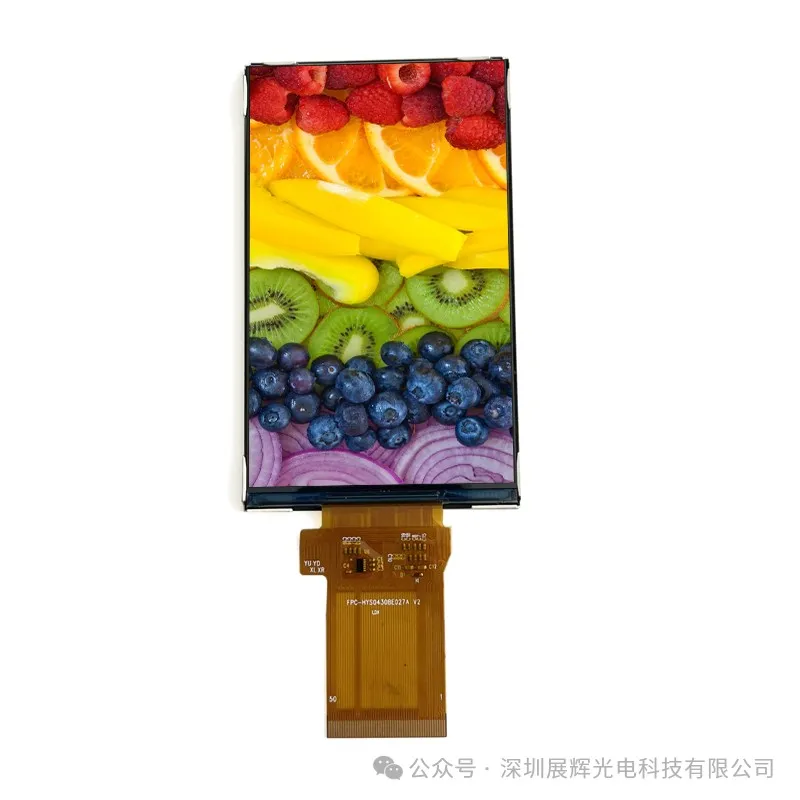

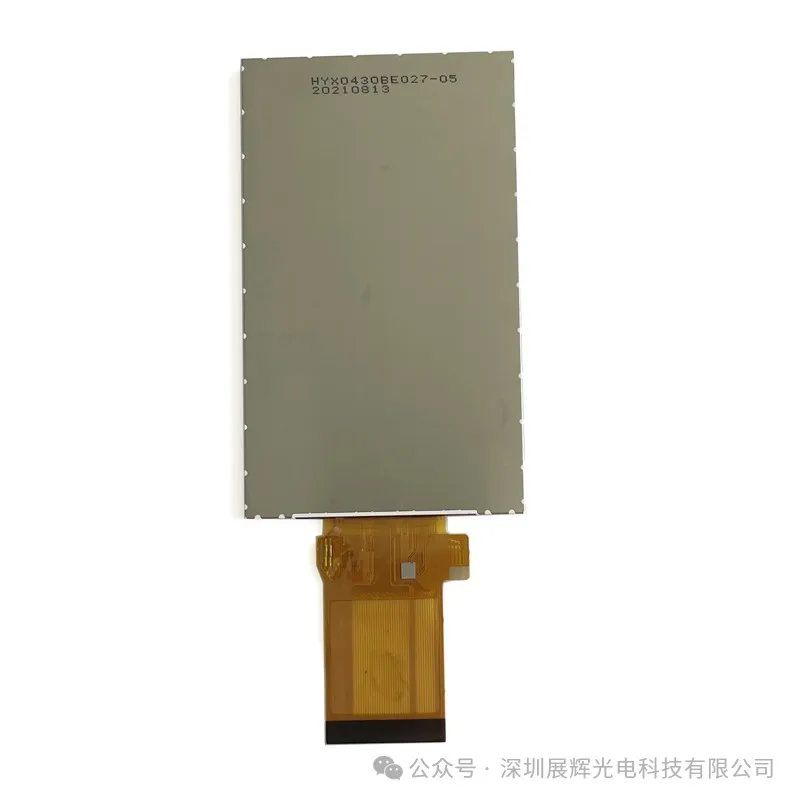

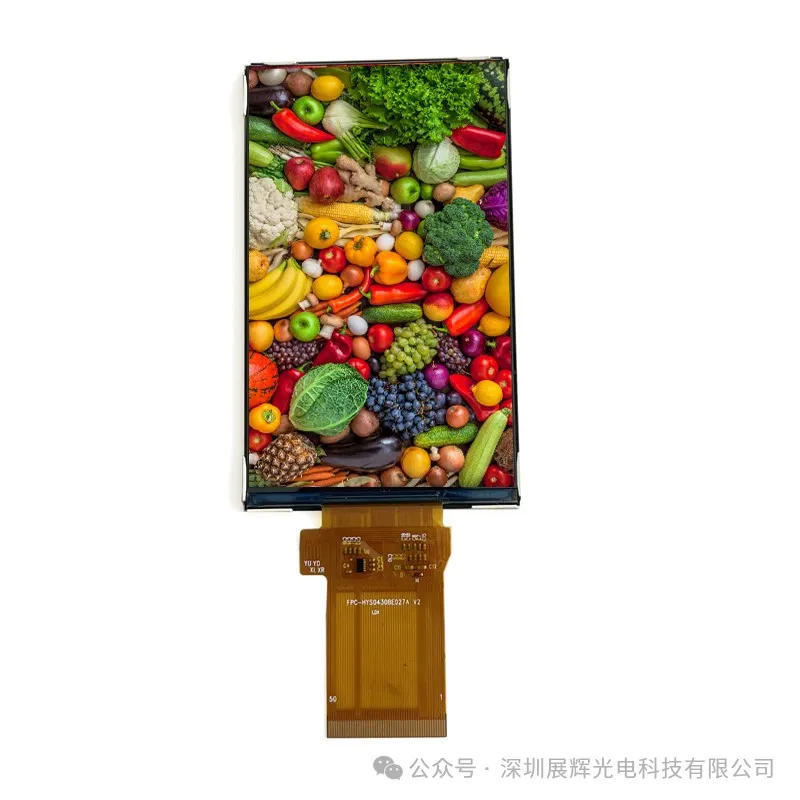

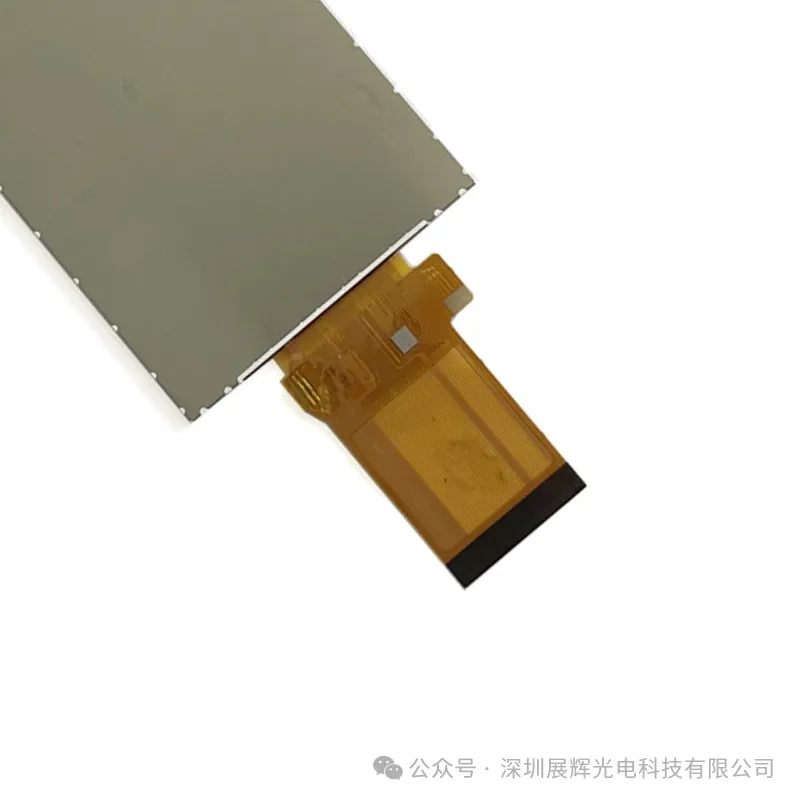

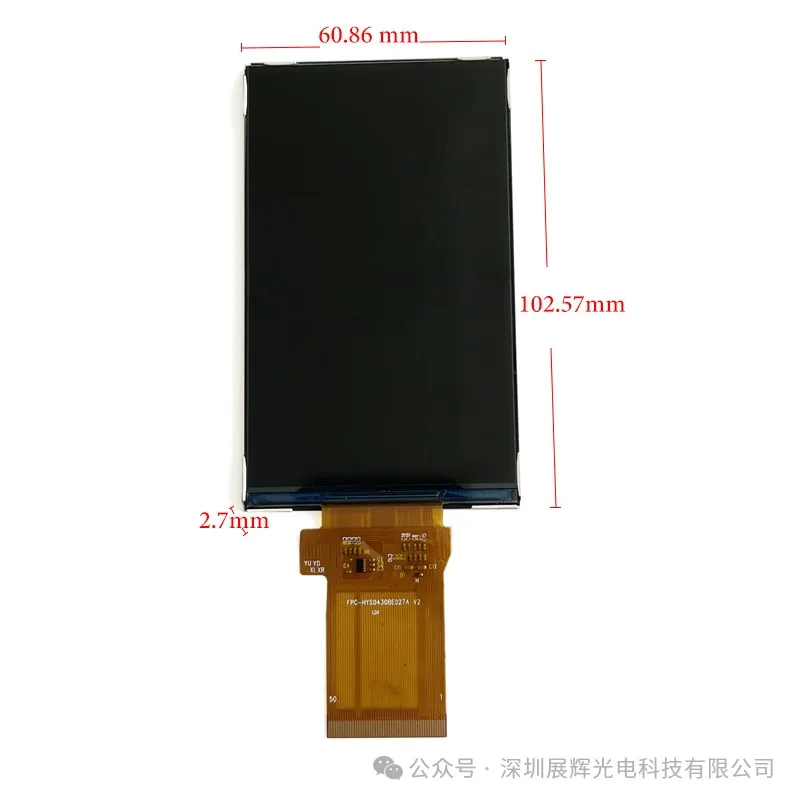

Model "ZH0430BE027-05" 4.3 inch iron frame LCD screen |
(2) Model size is 4.3 inches Conventional support 400cd/㎡ (brightness) |
(3) Dimensions: 60.86(H) *102.57(V) *2.7(T)mm |
(4) Display resolution: 480*3(RGB)*800 |
(5) Display area (A.A): 56.16(W)*93.6(L) |
| (6) Display angle : IPS |
| (7) Interface: RGB+SPI 50PIN |
| (8) Storage temperature: -30°C TO +70°C |
| (9) WORKING TEMPERATURE: -20°C TO +60°C |
...
04
—
Swipe left and right to see more⇨

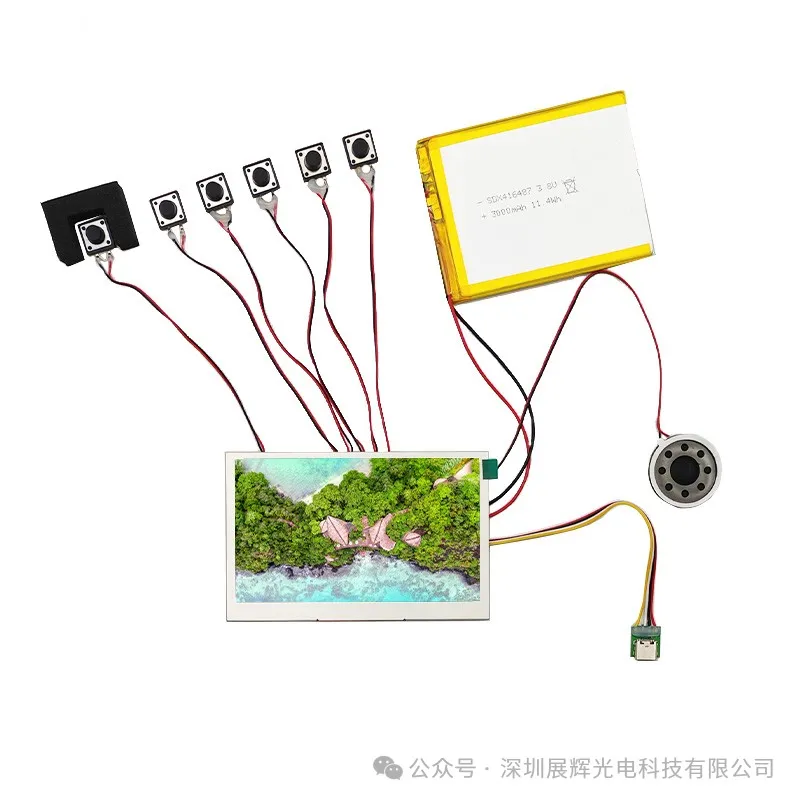

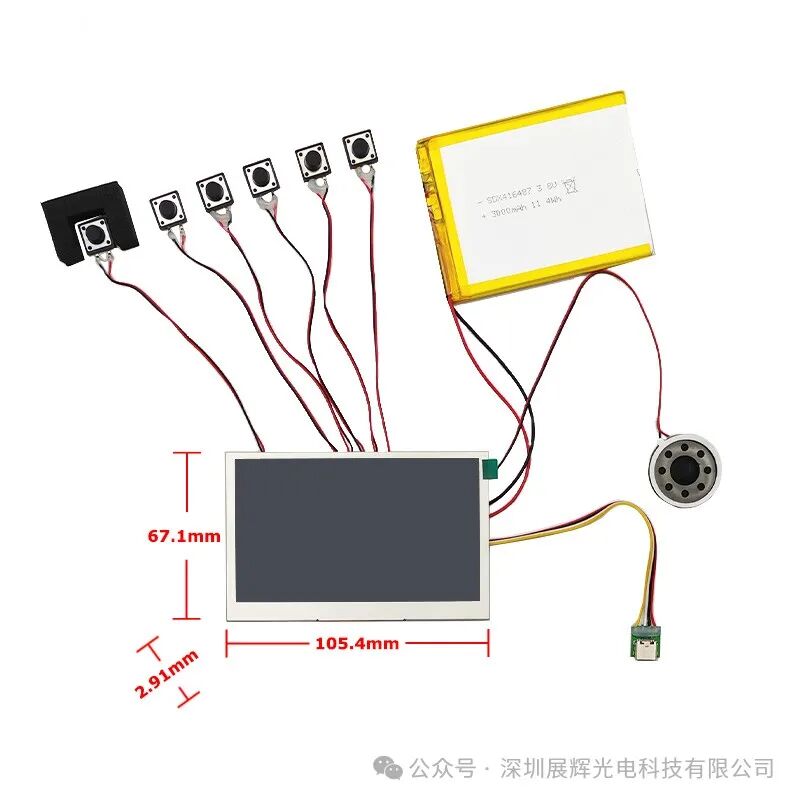

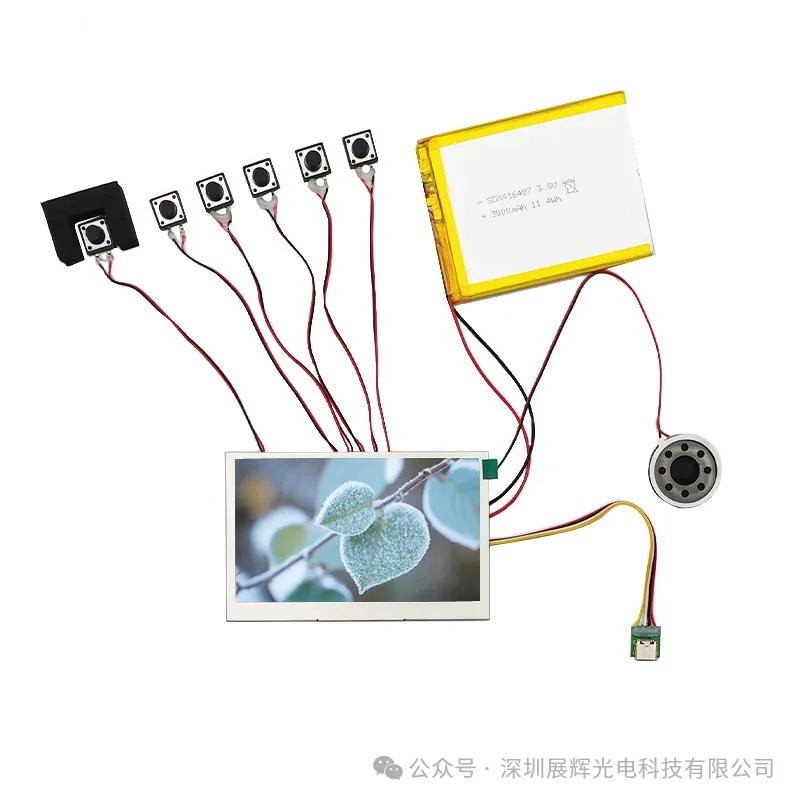

Model "ZH43252" 4.3 inch iron frame finished display (for gift box) |
(2) Model size is 4.3 inches Conventional support 350cd/㎡ (brightness) |
(3) Dimensions: 105.4(H) *67.1(V) * 2.91(T)mm |
(4) Display resolution: 800*3(RGB)*480 |
(5) Display area (A.A): 95.04*(H) *53.86(V) |
| (6) Display angle : IPS |
| (7) Interface: RGB 40PIN |
| (8) STORAGE TEMPERATURE: -30°C TO +80°C |
| (9) WORKING TEMPERATURE: -20°C TO +70°C |
...

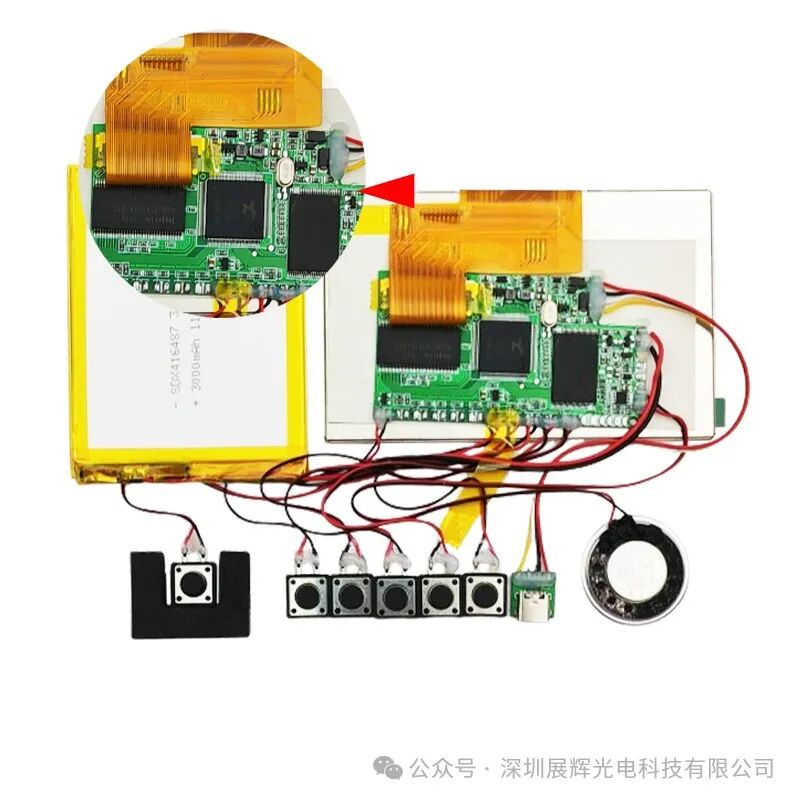

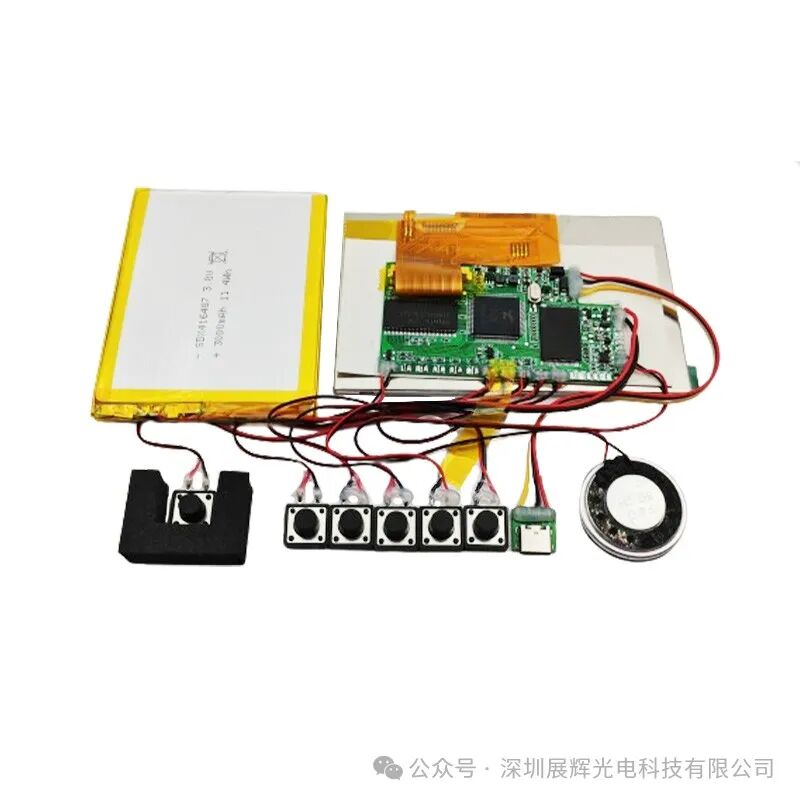

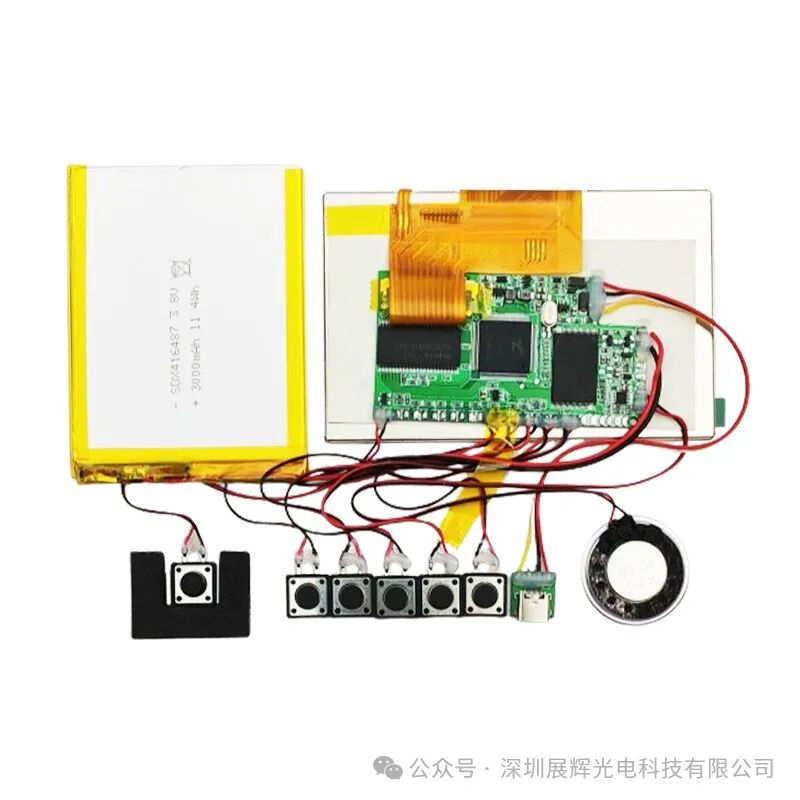

The above configurations:
◎Plate+Wire
Mobile battery | Power is provided |
Button module | Power switch + basic settings + switch mode |
loudspeaker | Ambient stereo |
Type-C | Transfer changes to the video footage |
