Zhanhui 23.8-inch full range of LCD display modules
23.8-inch series preview
Swipe left and right to see more⇨
01

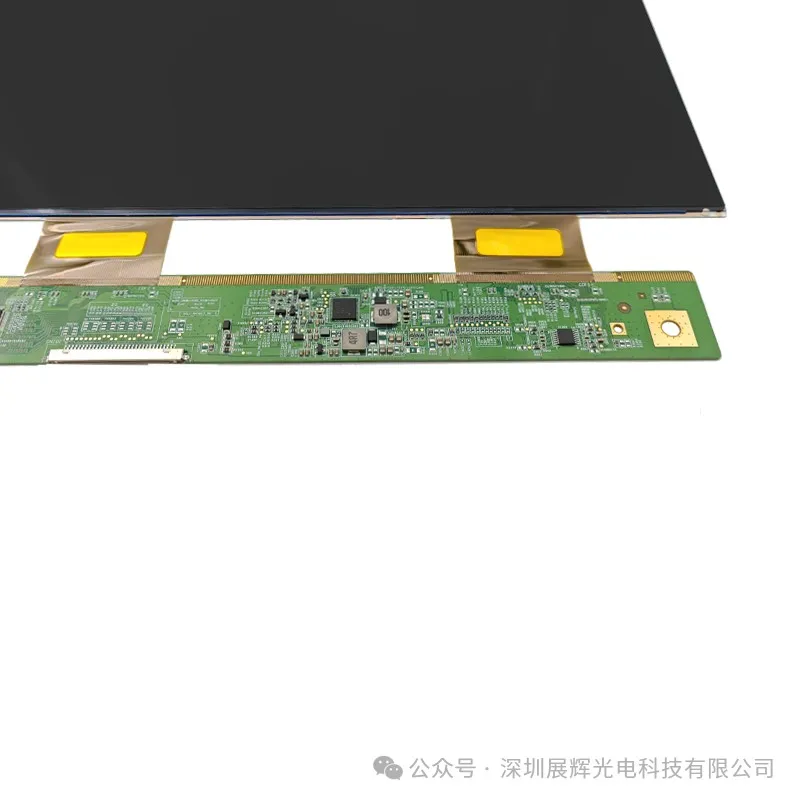

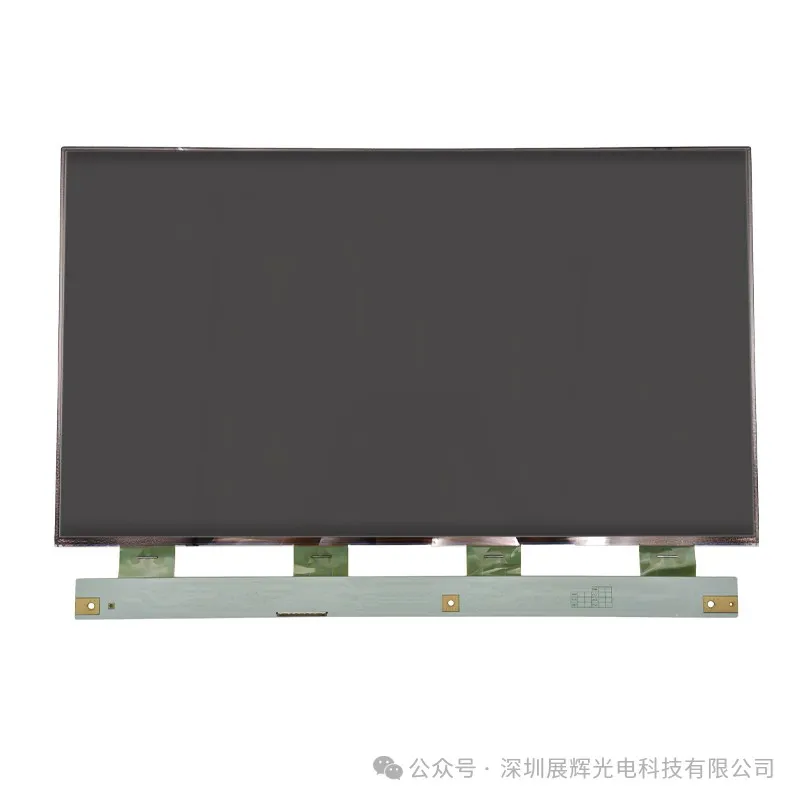

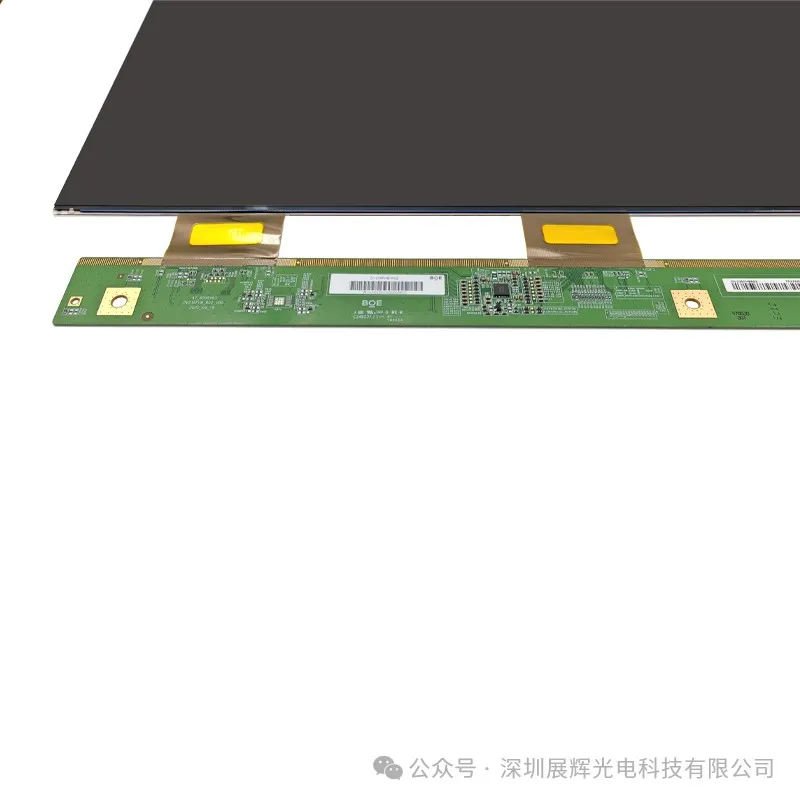

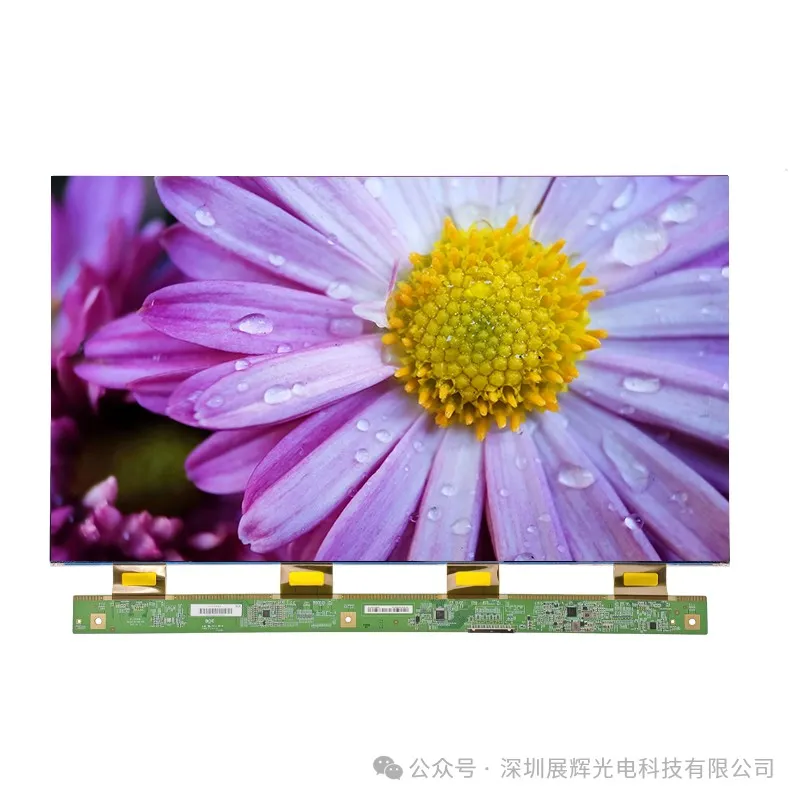

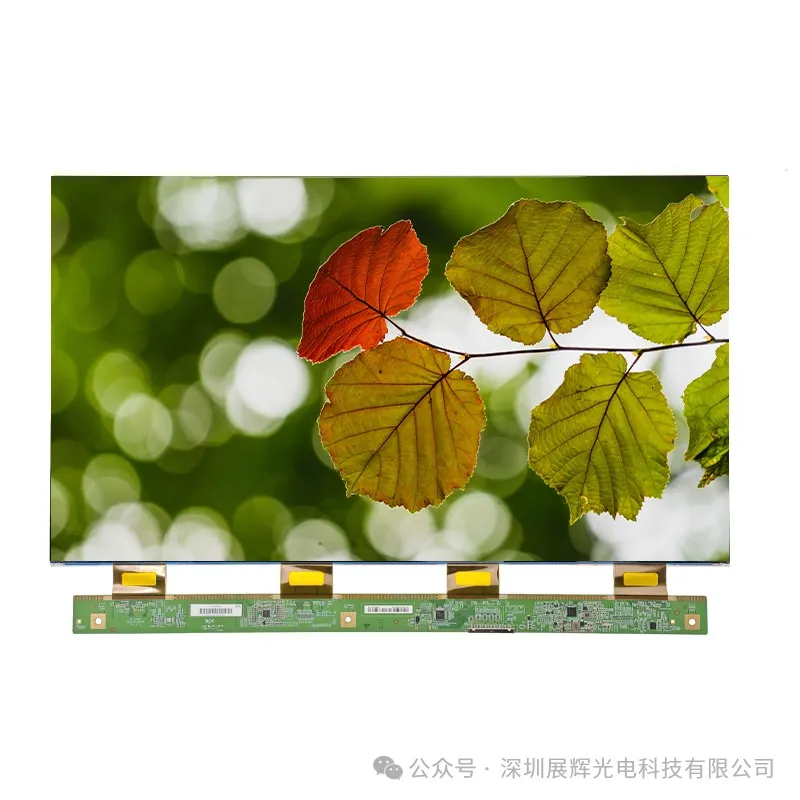

Model No. "DV238FHB-R02" 23.8 inch original LCD screen |
Specific parameters:
(1) This model uses an amorphous thinfilm transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product is composed of LCD liquid crystal panel, polarizer POL, driver IC, cable FPC, capacitive touch CTP, backlight BL and cover plate CG matching. With a horizontal 1920*1080 vertical pixel array, each pixel is divided into red, green, and blue dots, which are arranged in vertical stripes, this panel can display 16.7M colors.
(2) Model size is 23.8 inches Conventional support 450cd/㎡ (brightness) |

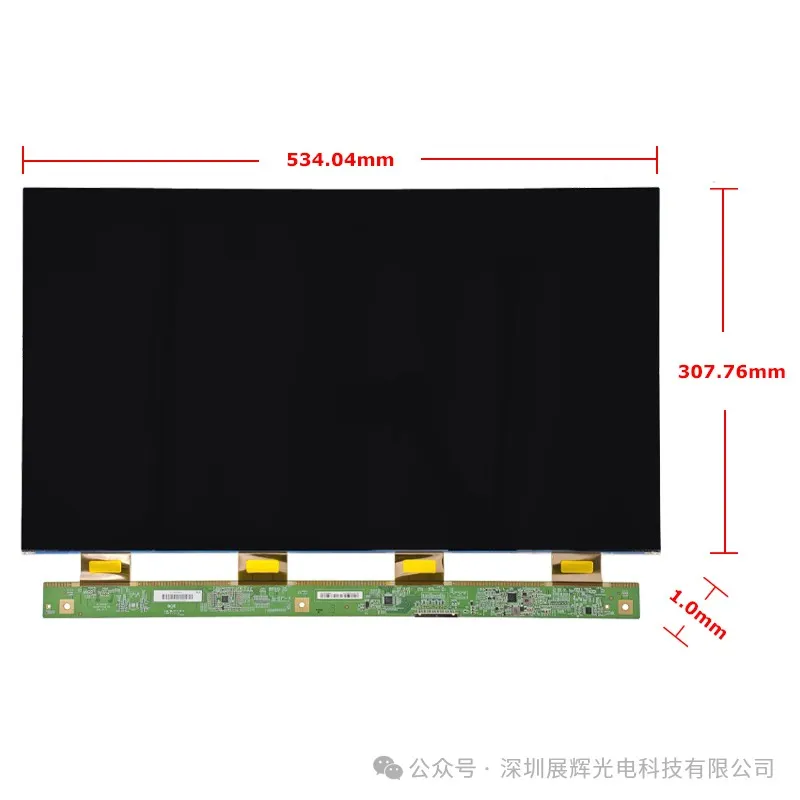

(3) Dimensions: 534.04(H) *307.76(V) * 4.8(T)mm |
(4) Display resolution: 1920*3(RGB)*1080 |
| (5) Display area（A.A): 527.04*(H) *296.46(V) |
| (6) Display perspective : IPS |
| (7) Interface : LVDS 30PIN |
| (8) Storage temperature：-30℃ TO +80℃ |
| (9) Operating temperature：-20℃ TO +70℃ |
...
Support Customization:
02
—
Swipe left and right to see more⇨

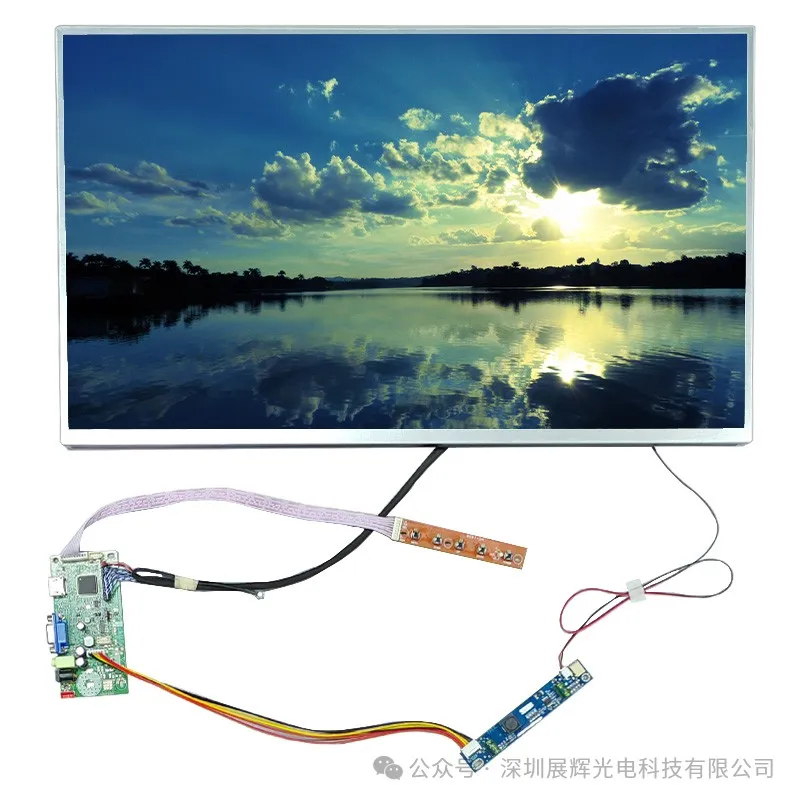

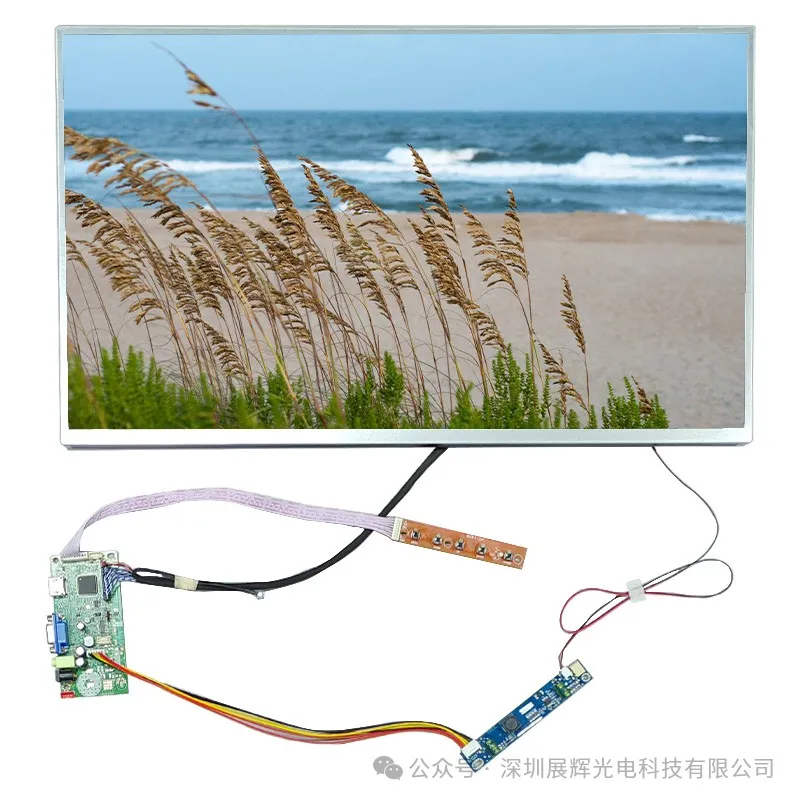

Model No. "ZH238HK001-01" 23.8 inch iron frame with cable LCD screen |
Specific parameters:
(1) This model uses an amorphous thinfilm transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product is composed of LCD liquid crystal panel, polarizer POL, driver IC, cable FPC, capacitive touch CTP, backlight BL and cover plate CG matching. With a horizontal 1920*1080 vertical pixel array, each pixel is divided into red, green, and blue dots, which are arranged in vertical stripes, this panel can display 16.7M colors.
(2) Model size is 23.8 inches Conventional support 500cd/㎡ (brightness) |

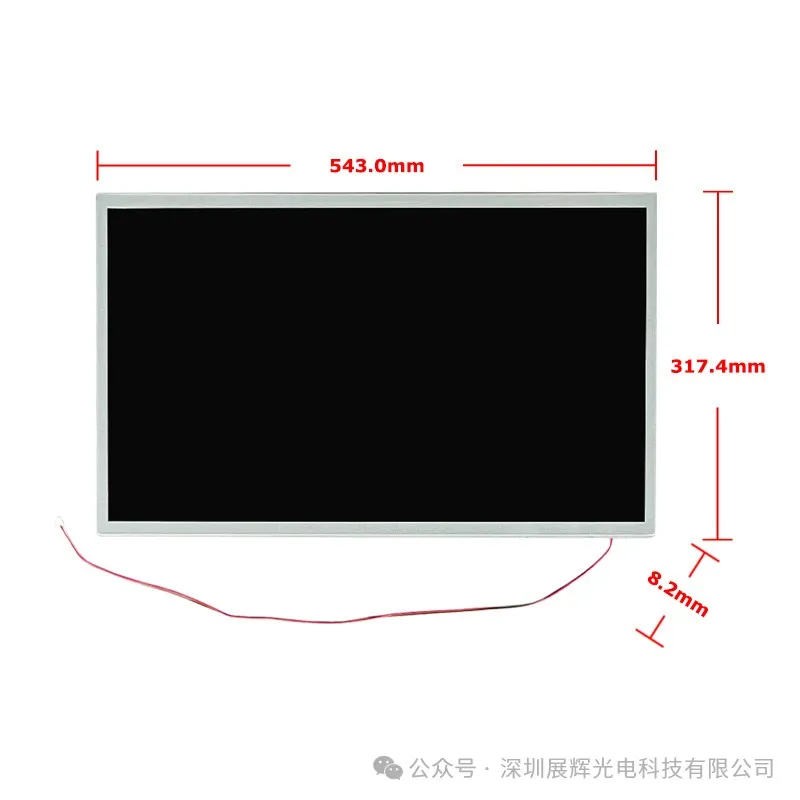

| (3) Dimensions: 543.0(W) * 317.4(H) * 8.2(T) mm |
(4) Display resolution: 1920*3(RGB)*1080 |
| (5) Display area（A.A): 527.04*(H) *296.46(V) |
| (6) Display perspective : IPS |
| (7) Interface : LVDS 30PIN |
| (8) Storage temperature：0℃ TO +50℃ |
| (9) Operating temperature：-20℃ TO +60℃ |
...

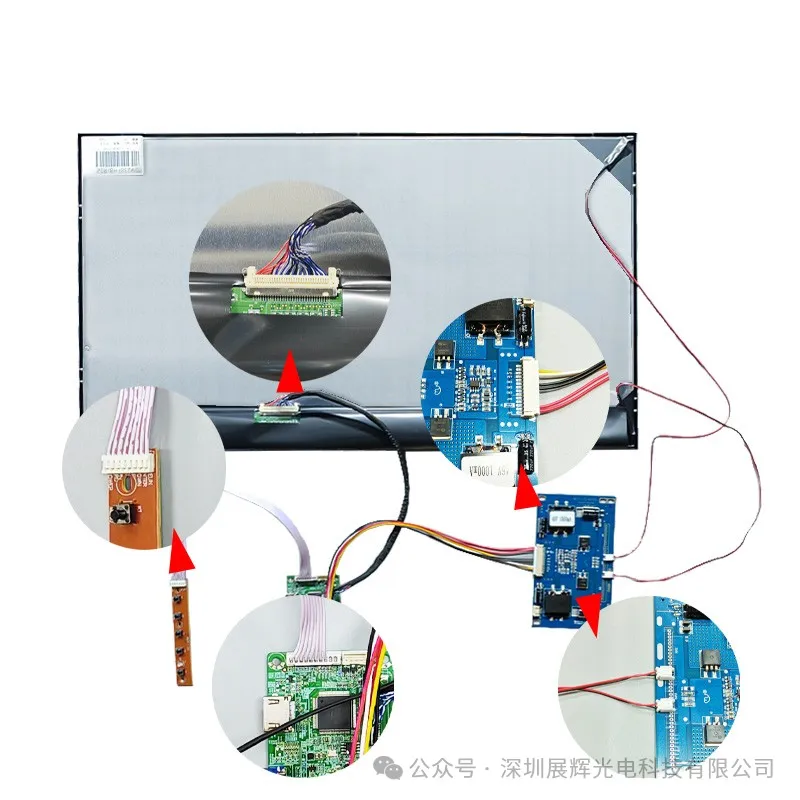

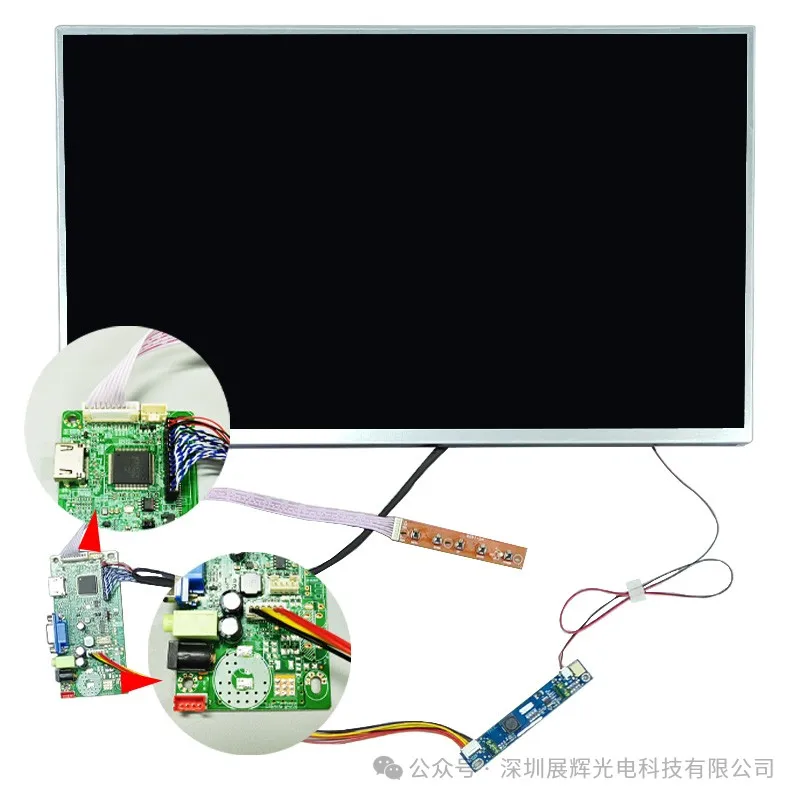

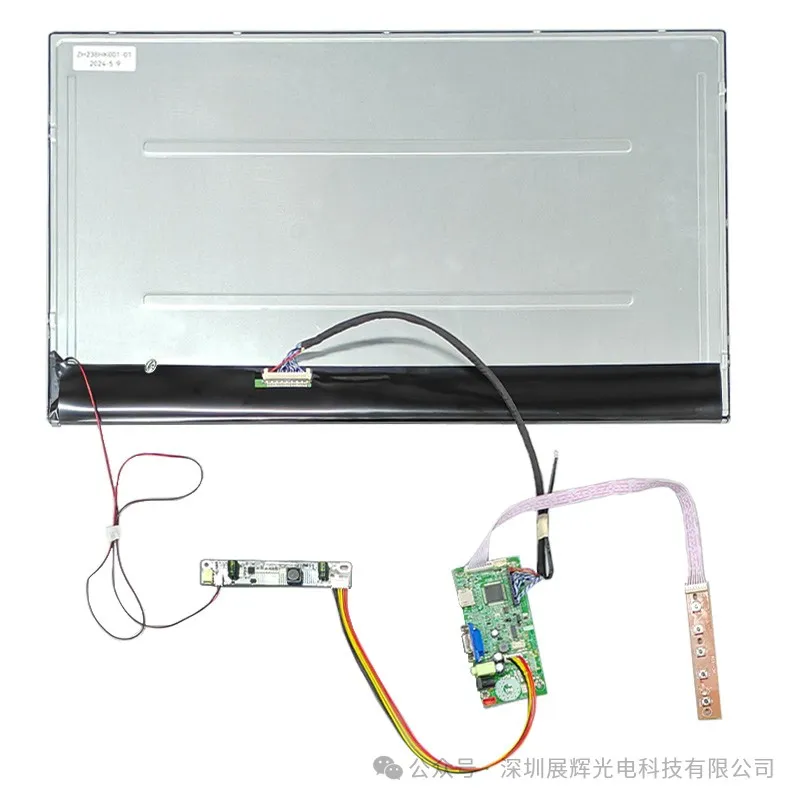

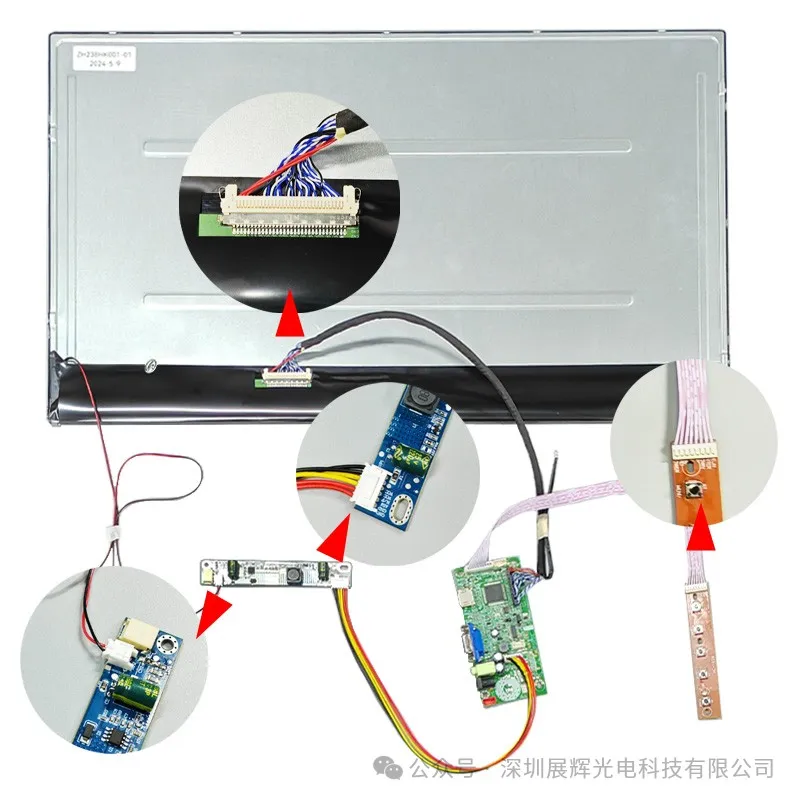

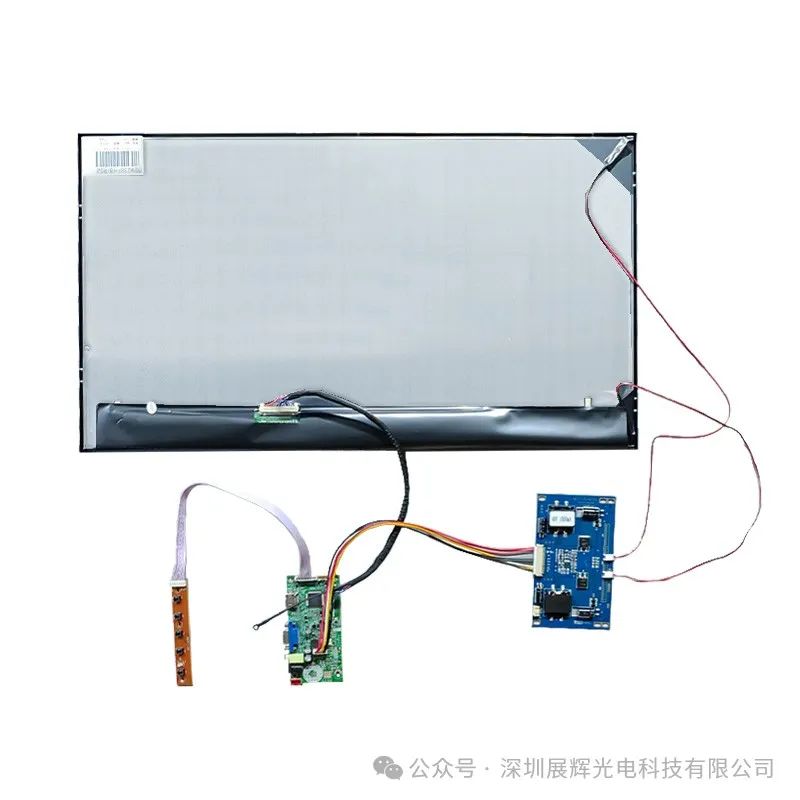

The above configurations:
◎Plate+Wire
| HDMI | EDP + LVDS + HDMI + VGA |
Constant flow plate | Backlight |
| Button board | Power switch + basic settings + switch mode |
Support Customization:
03
—
Swipe left and right to see more⇨

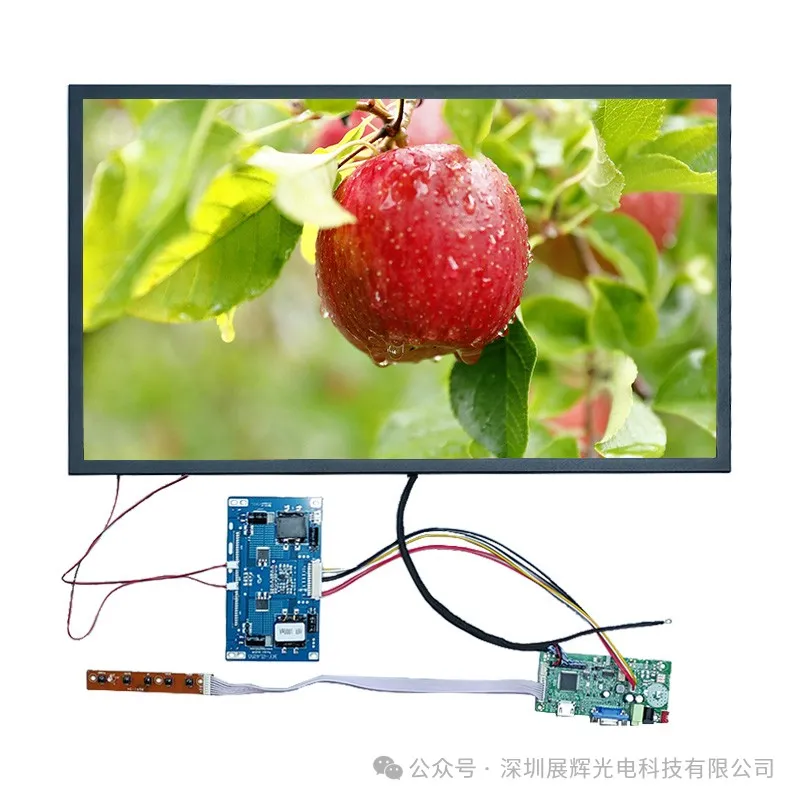

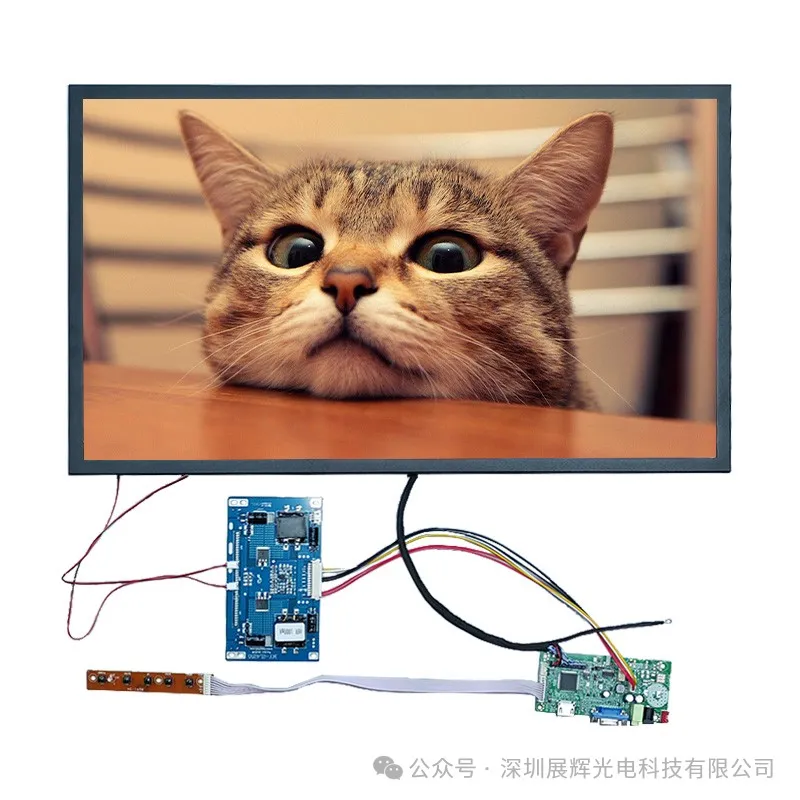

Model No. "ZH238PIFHD003-03A" 23.8 inch tape cable LCD display |
Specific parameters:
(1) This model uses an amorphous thinfilm transistor (TFT) as a switching device for a transmissive color active matrix liquid crystal display (LCD). This product is composed of LCD liquid crystal panel, polarizer POL, driver IC, cable FPC, capacitive touch CTP, backlight BL and cover plate CG matching. With a horizontal 1920*1080 vertical pixel array, each pixel is divided into red, green, and blue dots, which are arranged in vertical stripes, this panel can display 16.7M colors.
(2) Model size is 23.8 inches Conventional support 2000cd/㎡ (brightness) |

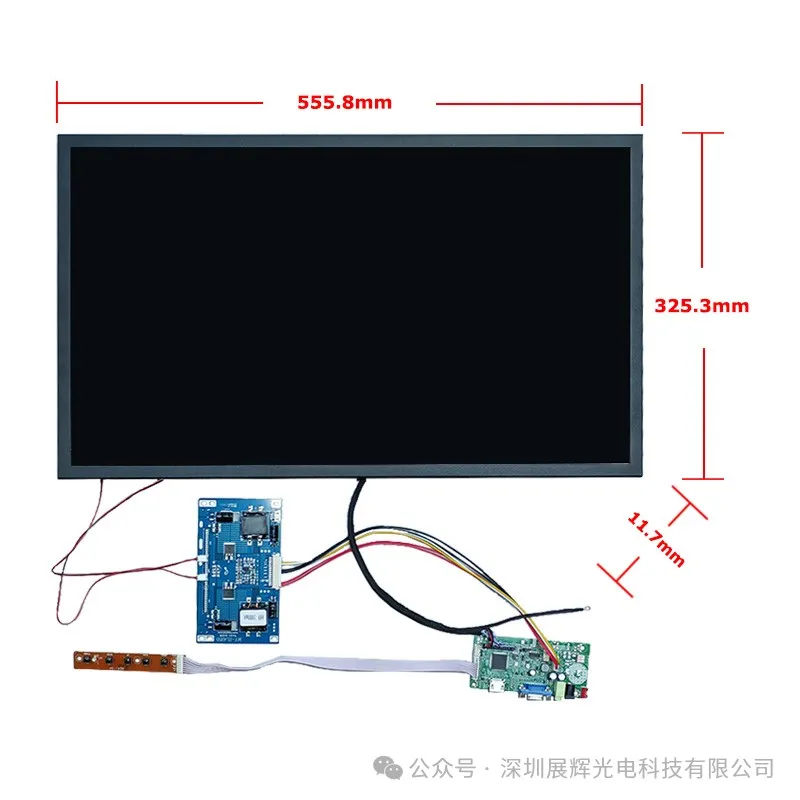

| (3) Dimensions: 555.8(H) *325.3(V) *11.7(T)mm |
| (4) Display resolution: 1920*3(RGB)*1080 |
| (5) Display area（A.A): 527.04(W)*296.46(L) |
| (6) Display perspective: IPS |
| (7) Interface :LVDS 30PIN |
| (8) Storage temperature：-30℃ TO +80℃ |
| (9) Operating temperature：-20℃ TO +60℃ |
...

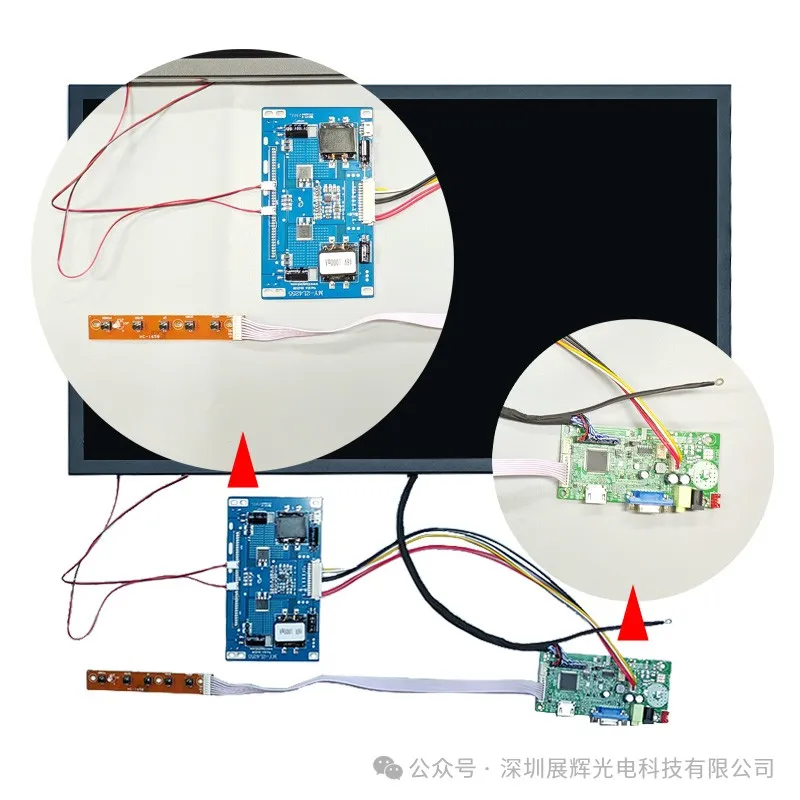

The above configurations:
◎Plate+Wire
| HDMI | EDP + LVDS + HDMI + VGA |
Adapter plate | Backlight |
| Button board | Power switch + basic settings + switch mode |
Support Customization:
